Dell EMC S5148F switch
The EX500. EX300, and EX3000 appliances all use the Dell EMC S5148F for the front-end pair of
switches and for the pair of back-end switches. Note that customers have the option of using their
own front-end switches instead of the Dell EMC S5148F switches. The Dell EMC S5148F switches
are required for the back-end pair.

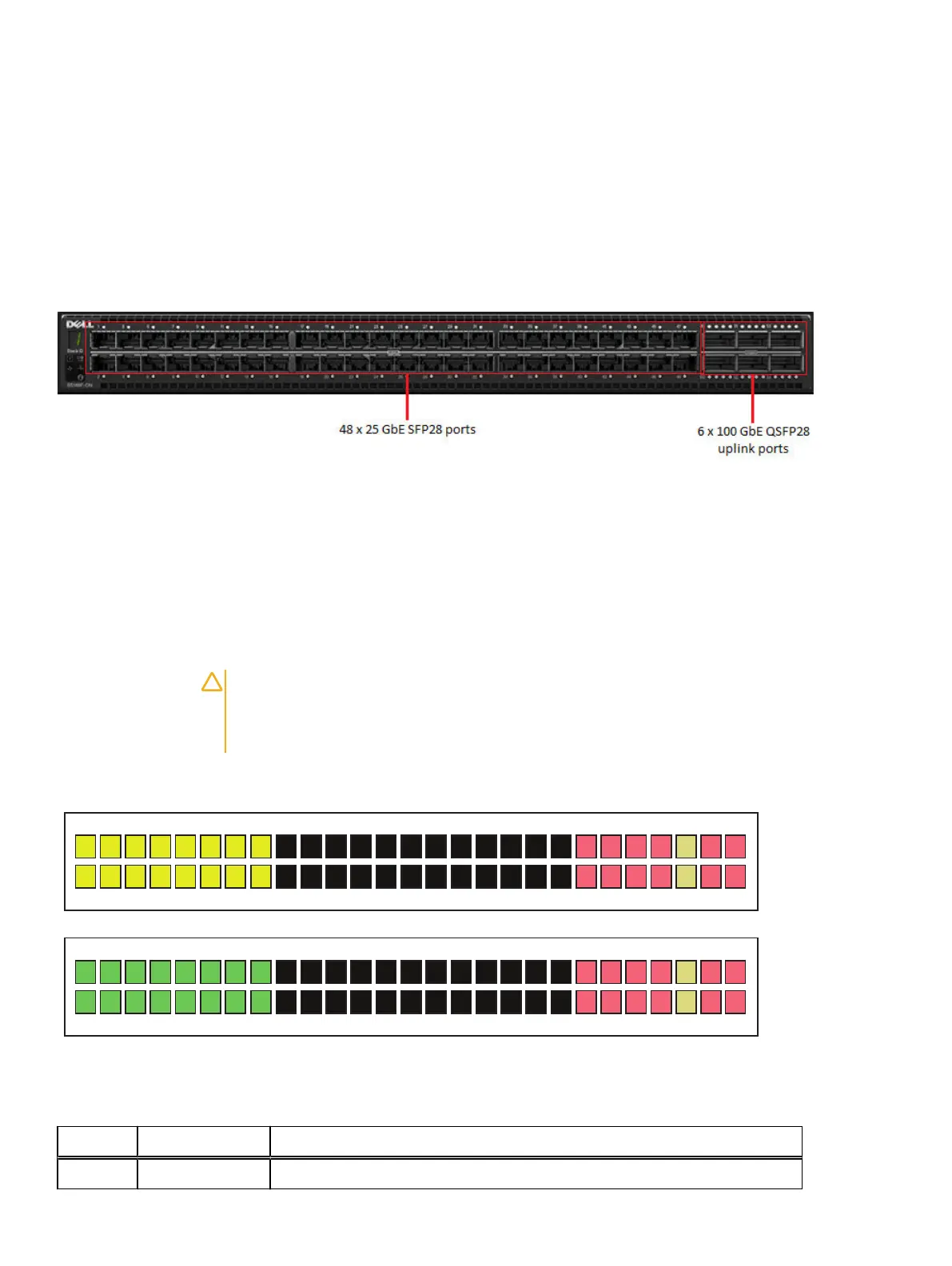

Figure 1 Dell EMC S5148F switch ports
Front-end switch pair
Dell EMC offers an optional HA pair of front-end 25 GbE S5148F switches for customer network
connection to the rack. It has two 100 GbE virtual link trunking (VLT) cables per HA pair. These
switches are called the Hare (FE2) and the Rabbit (FE1) switches.
Customers can use their own front-end switch pair (10/25 GbE for EX300 and 25 GbE for EX500
and EX3000) using the Dell EMC Request for Product Qualification (RPQ) process. In this case,
the customer must provide the appropriate VLT cables, SFPs, or external connection cables.
CAUTION
It is required to have connections from the customer's network to both front-end
switches (rabbit and hare) in order to maintain the high availability architecture of the ECS
appliance. If the customer chooses not to connect to their network in the required HA manner,
there is no guarantee of high data availability for the use of this product.
Figure 2 Front-end switches
Rabbit Switch (FE1)
Hare Switch (FE2)
1
48 46 44 42 40 38 36 34 32 30
28
26 24 22
20
18
16 14 12 10 8 4 6 2
3 5 7 9 11 13 15 17 19 21 23 25 27 29 35 31 33 37 39 41 43 45 47
1
48 46 44 42 40 38 36 34 32 30
28
26 24 22
20
18
16 14 12 10 8 4 6 2
3 5 7 9 11 13 15 17 19 21 23 25 27 29 35 31 33 37 39 41 43 45 47
49
50
51 53
52 54
50 52 54
49 51 53
Lists the switch port numbers:
Table 3
Switch port numbers
Switch Port number Description
Hare 1-16 Data network ports connected to nodes (10/25 GbE)
Switches
16 ECS EXSeries Hardware Guide
