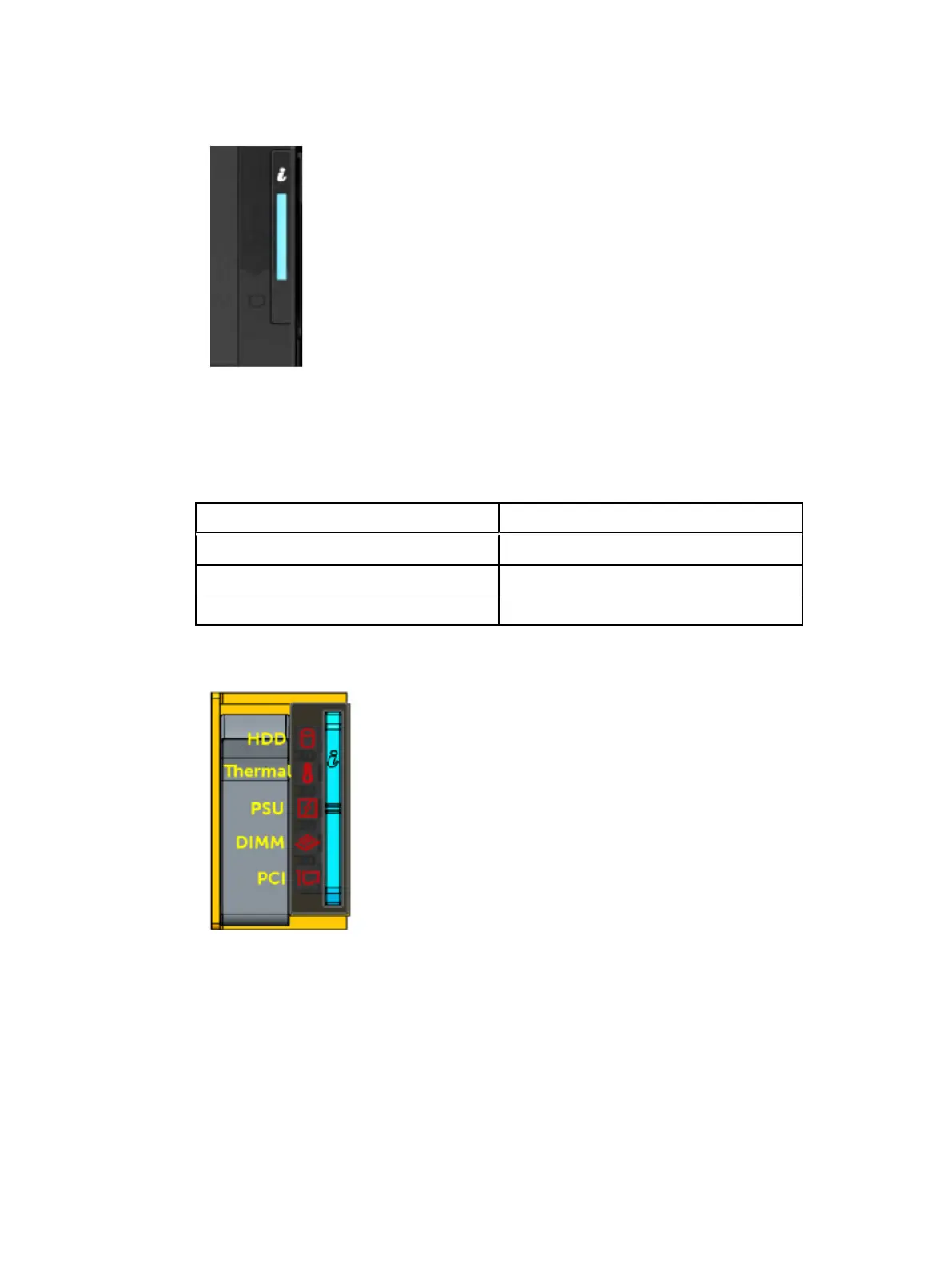

Figure 38 Left control panel
The left control panel LED behavior is broken into two subsets, the light bar and the status LEDs.
The light bar also functions as a button. The light bar indicates chassis health and also functions as
System ID when pressed.
Table 18 Decoding of LEDs in light bar
Status ID button
Healthy Solid Blue
Fault Blink Amber
System ID Blink Blue
There are five status LEDs to indicate and identify any failed hardware components.
Figure 39
Status LEDs decoded view
EX300 Platform
ECS EXSeries Hardware Guide 63
