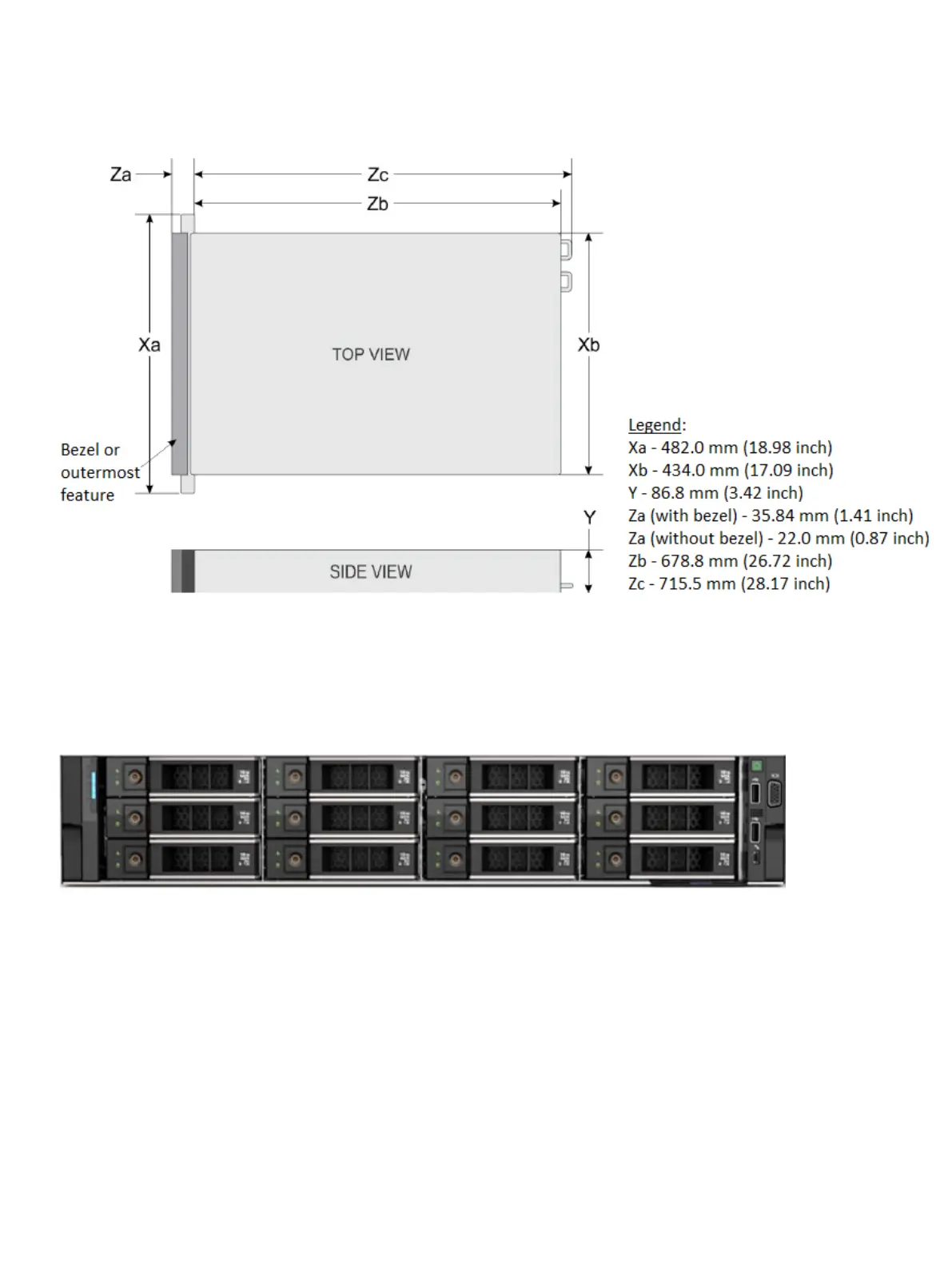

Figure 36 EX300 server physical dimensions
Server front view
The following figure shows the EX300 2U server chassis front with 12 x 3.5" SATA HDDs.
Figure 37
EX300 server chassis front view
LED indicators are on the left and right side of the server front panels.
EX300 Platform
62 ECS EXSeries Hardware Guide
