Dell EMC ECS EX Series User Manual

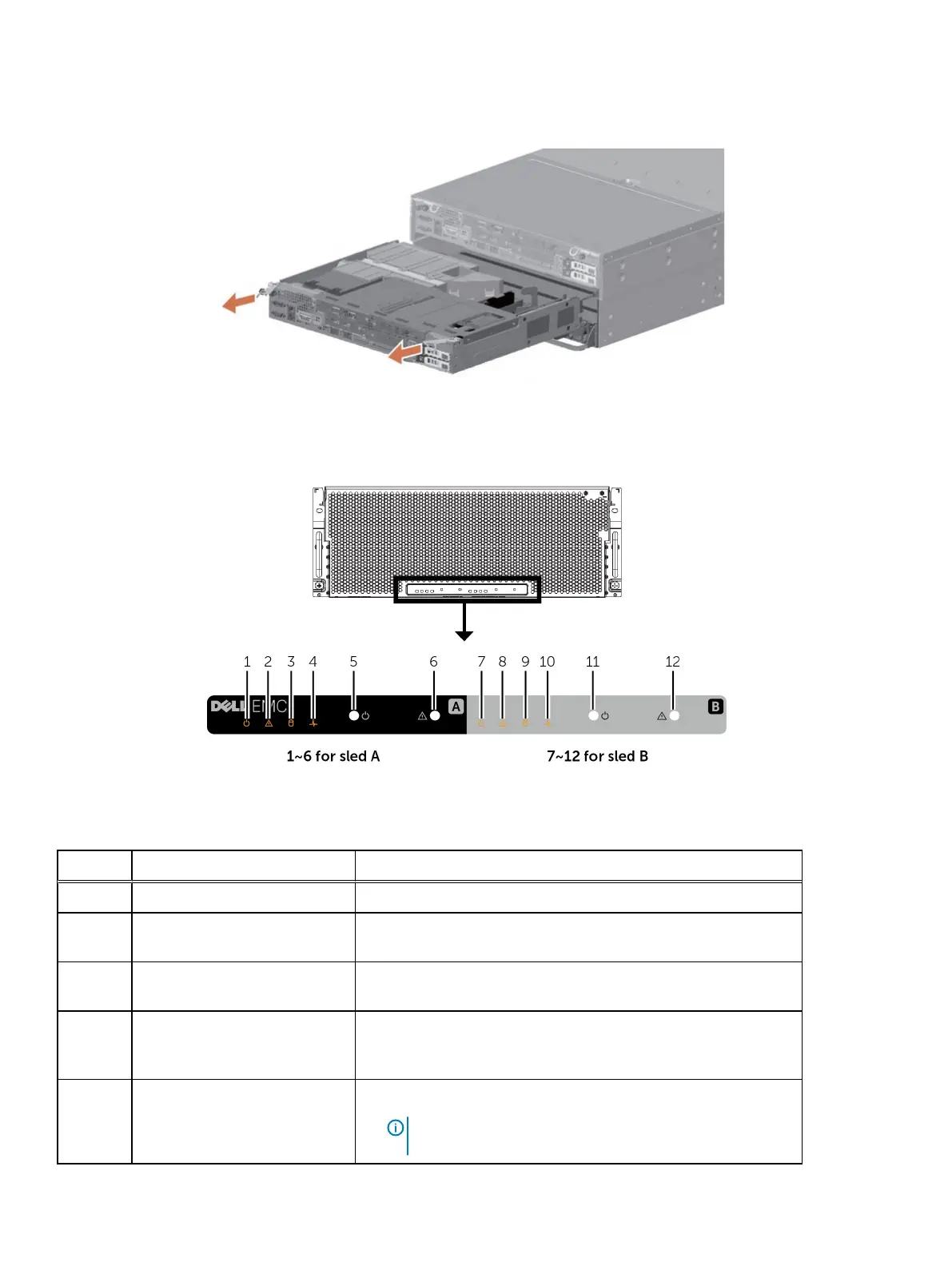

Figure 71 External view of server sled A in a EX3000D dual node chassis with two sleds
For the EX3000S single-node system, a dummy sled is installed over the bottom sled A
compartment and there are air flow covers over the two empty power supply slots.
Figure 72 Front-panel features and indicators
Describes the server indicators, buttons, or connectors
Table 27
Server indicators, buttons, or connectors
Item Indicator, Button, or Connector Description
1 Power indicator The power indicator glows when the system is turned on.
2 ID indicator When a system identification button is pressed, the ID indicator
blinks blue to help locate a particular system within a rack.
3 Sled A HDD fault status indicator. The indicator blinks amber if an HDD
experiences an issue.
4 System board status indicator If the system is on, and in good health, the indicator glows solid blue.
The indicator blinks amber if the system is in standby, and if any
issue exists (for example, a failed fan or HDD).
5 Power button
l
The power button controls the PSU output to the system.
l
Note: On ACPI-compliant operating systems (OSs), turning
off the system using the power button causes the system to
EX3000 Platform
96 ECS EXSeries Hardware Guide
