Dell EMC ECS EX Series - EX500 Node Network Port Cabling Connections

The EX500 node port to the iDRAC, back-end switch, and front-end switch port connections are
listed in the following table.

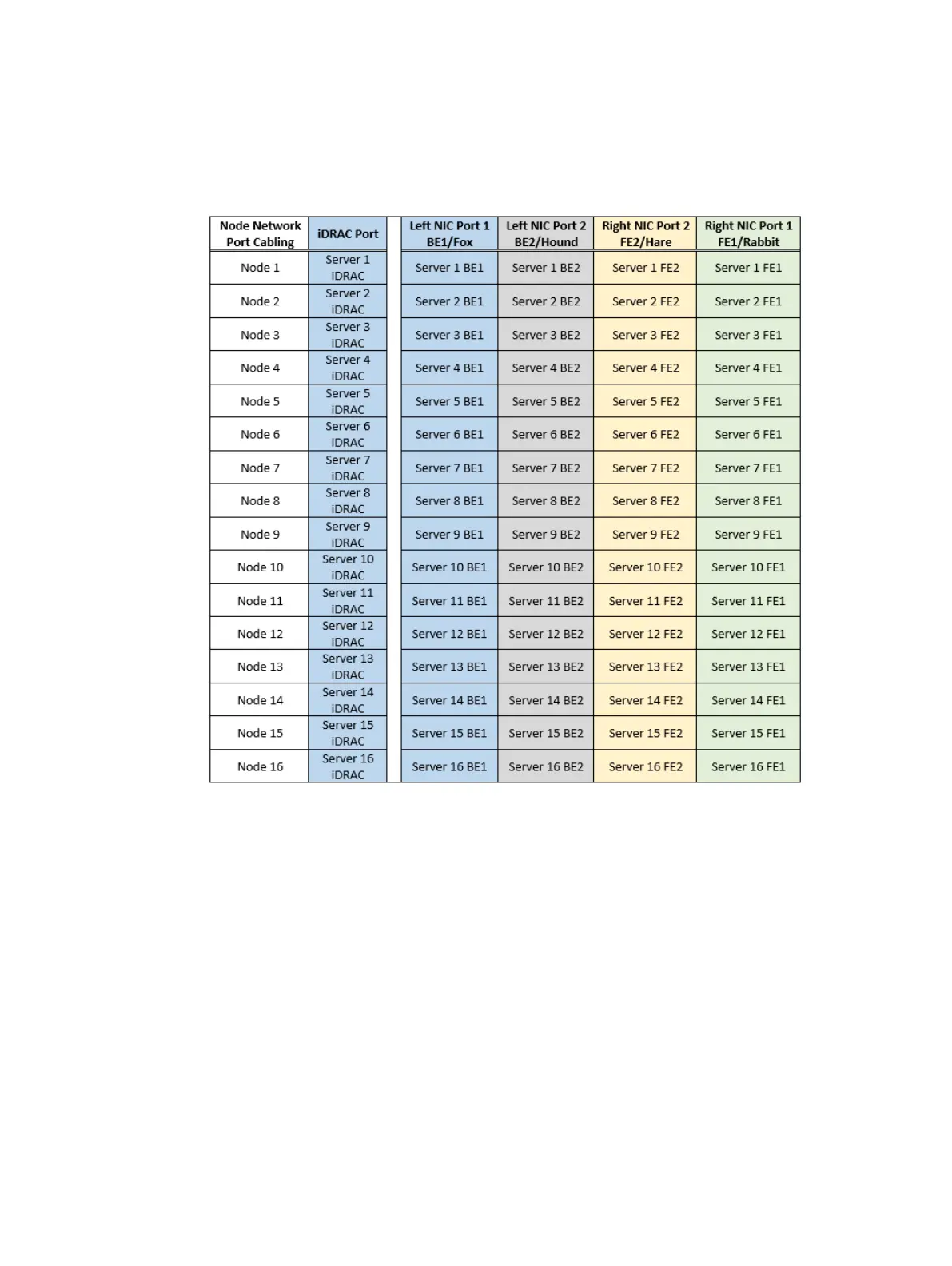

Figure 24 EX500 node network port cabling connections
EX500 Platform
ECS EXSeries Hardware Guide 47
