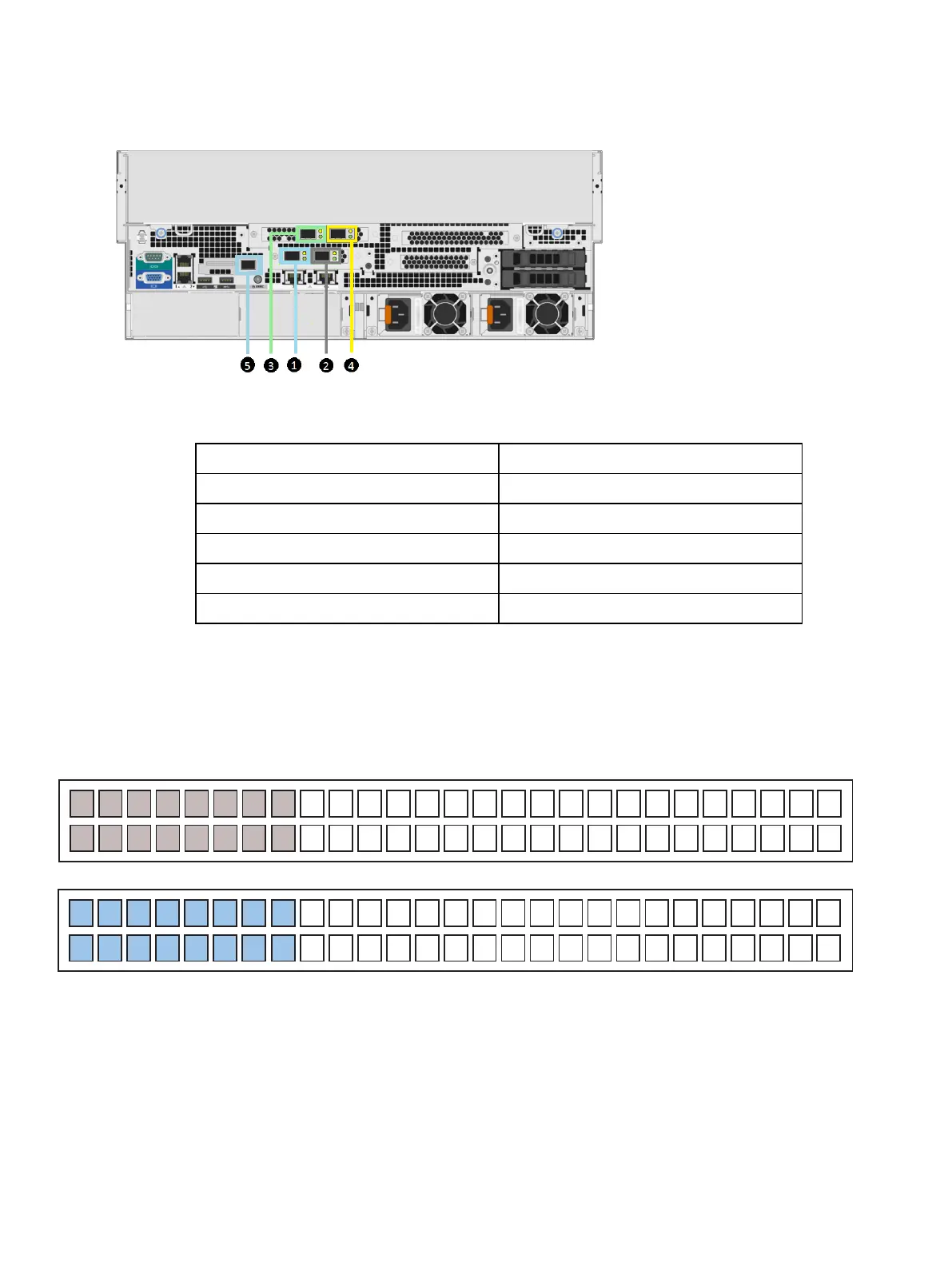

Figure 90 Back-end switch, front-end switch, and iDRAC ports on an EX3000S node
Table 33 Legend for Back-end switch, front-end switch, and iDRAC ports on EX30000S node
Legend Description
1 BE1 Fox switch port
2 BE2 Hound switch port
3 FE1 Rabbit switch port
4 FE2 Hare switch port
5 iDRAC Port
The numbered back-end switch ports used for connecting to the ports on the EX3000 nodes are
shown in the following diagram. Port 1 on the Hound switch (BE2) connects to port 2 on Node 1.
Port 2 on the Hound switch (BE2) connects to port 2 on Node 2, and so on. Similarly, Port 1 on the
Fox switch (BE1) connects to port 1 on Node 1. Port 2 on the Fox switch (BE1) connects to port 1
on Node 2, and so on.
Figure 91
Node ports on back-end switches
Fox Switch (BE1)
Hound Switch (BE2)
1
48 46 44 42 40 38 36 34 32 30
28 26 24 22 20 18 16 14 12 10 8 4 6 2
3 5 7 9 11 13 15 17 19 21 23 25
27
29 35
31
33 37
39 41
43 45 47
VLT1
VLT2
1
48 46 44 42 40 38 36 34 32 30 28 26 24 22 20 18 16 14 12 10 8 4 6 2
3 5 7 9 11 13 15 17 19 21 23 25
27
29 35
31
33 37
39 41
43 45 47
VLT1
VLT2
51
52
53
54
51
52
53
54
EX3000 Platform
118 ECS EXSeries Hardware Guide
