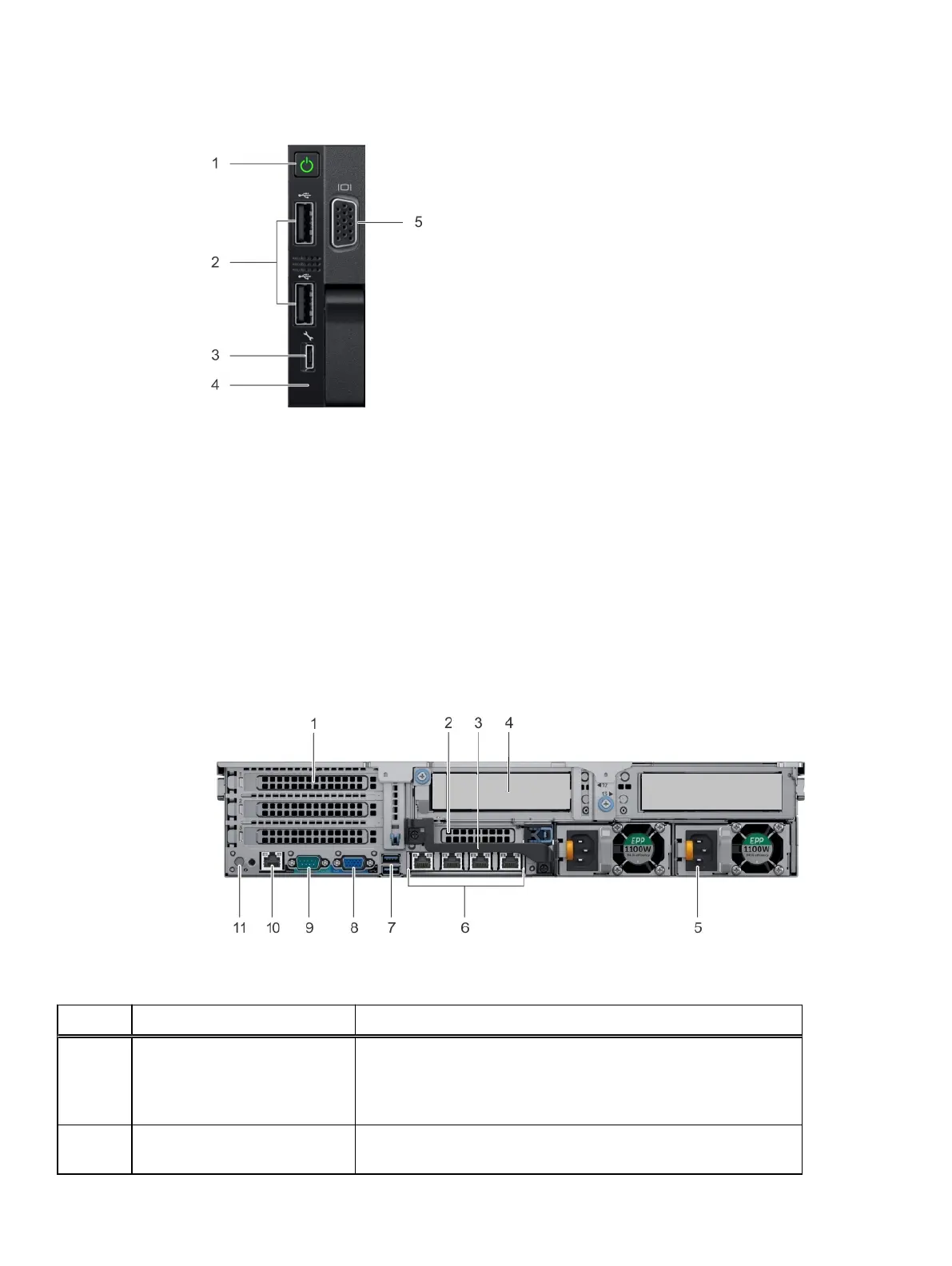

Figure 40 Right control panel
1. Power button with integrated power LED
2. Two USB 3.0 ports
3. Micro-USB for iDRAC Direct
4. Status LED for iDRAC Direct
5. VGA port
Server rear view
The EX300 server chassis provides dual hot-swappable power supplies with 1 + 1 redundancy,
auto-sensing and auto-switching capability.
Figure 41
EX300 server chassis rear view
Table 19 Server Panel, Ports, and Slots
Item Panel, Ports, and Slots Description
1 Full-height PCIe expansion card
slot (3)
The PCIe expansion card slot (riser 1) connects up to three full-
height PCIe expansion cards to the system. The Boot Optimized
Storage Subsystem (BOSS) controller card with one M.2 stick is in
the top PCIe slot (slot 1).
2 Half-height PCIe expansion card
slot
The PCIe expansion card slot (riser 2) connects one half-height PCIe
expansion cards to the system.
EX300 Platform
64 ECS EXSeries Hardware Guide
