Clearing Jams 427

FILE LOCATION: C:\Users\fxstdpc-

admin\Desktop\0630_UG??\Mioga_SFP_UG_FM\Mioga_SFP_UG_FM\section27.fm

DELL CONFIDENTIAL – PRELIMINARY 9/13/10 - FOR PROOF ONLY

6

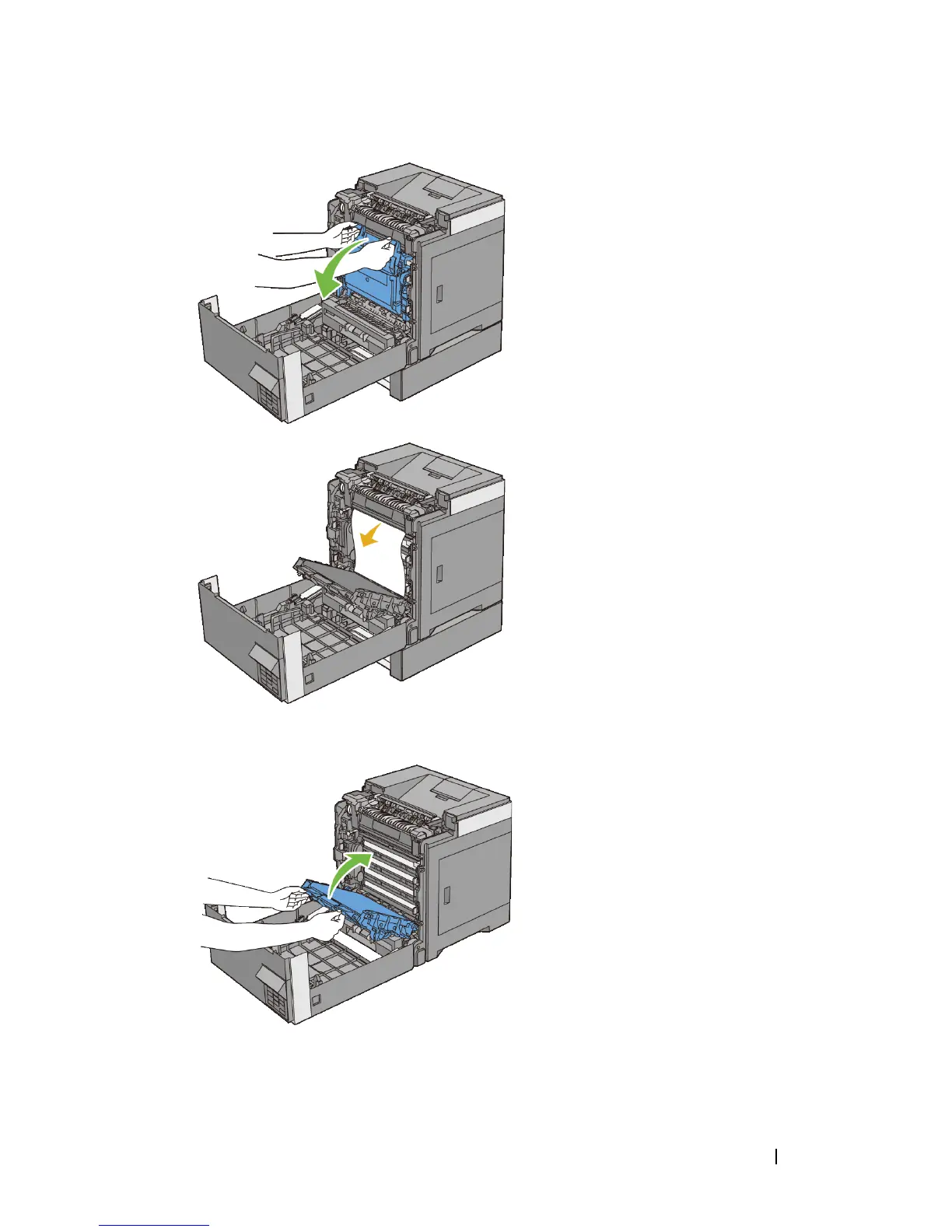

Close the belt unit, and push at the top of the unit until it clicks.

7

Close the front cover.
