Dell Alienware 17

To Next Page

To Previous Page

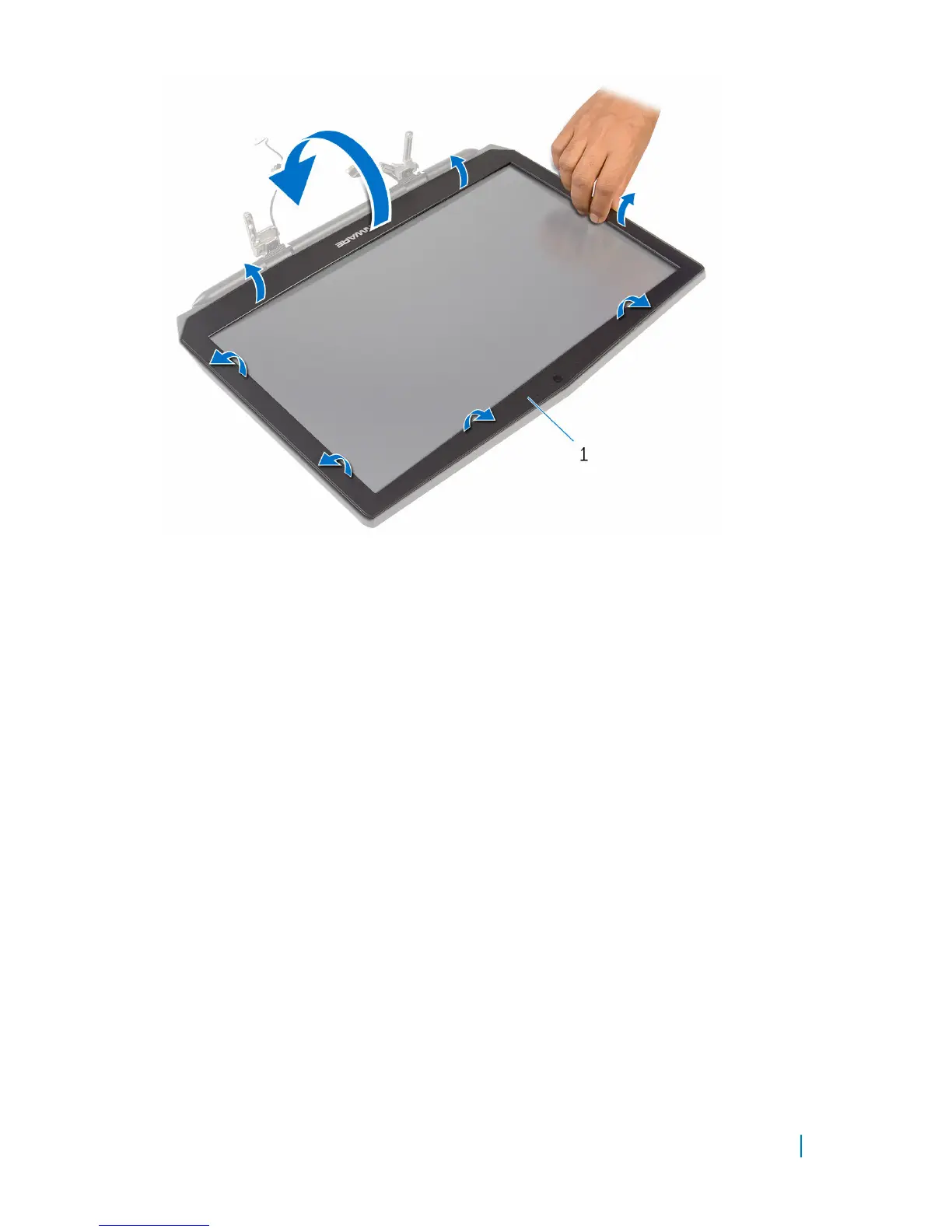

1 display bezel

3 Lift the latches and disconnect the display-board cables from the logo board.

4 Lift the display-bezel assembly away from the display assembly.

Removing the display bezel 106

Main Page

Default Chapter1
- Service Manual1
- Table of Contents3
1 Before Working Inside Your Computer11
- Before You Begin11
- Safety Instructions12
- Recommended Tools12
2 After Working Inside Your Tablet14
3 Removing the Base Panel15
- Procedure15
4 Replacing the Base Panel18
- Procedure18
5 Removing the Memory Modules19
- Prerequisites19
- Procedure19
6 Replacing the Memory Modules21
- Procedure21
- Post-Requisites22
7 Removing the Solid-State Drives23
- Prerequisites23
- Procedure23
8 Replacing the Solid-State Drives25
- Procedure25
- Post-Requisites25
9 Removing the Hard Drive26
- Prerequisites26
- Procedure26
10 Replacing the Hard Drive29
- Procedure29
- Post-Requisites29
11 Removing the Palm Rest30
- Prerequisites30
- Procedure30
12 Replacing the Palm Rest37
- Procedure37
- Post-Requisites38
13 Removing the Power-Button Board39
- Prerequisites39
- Procedure39
14 Replacing the Power-Button Board41
- Procedure41
- Post-Requisites41
15 Removing the Status-Light Board42
- Prerequisites42
- Procedure42
16 Replacing the Status-Light Board44
- Procedure44
- Post-Requisites44
17 Removing the Keyboard45
- Prerequisites45
- Procedure45
18 Replacing the Keyboard49
- Procedure49
- Post-Requisites50
19 Removing the Touch Pad51
- Prerequisites51
- Procedure51
20 Replacing the Touch Pad54
- Procedure54
- Post-Requisites54
21 Removing the Display Assembly55
- Prerequisites55
- Procedure55
22 Replacing the Display Assembly59
- Procedure59
- Post-Requisites60
23 Removing the Battery61
- Prerequisites61
- Procedure61
24 Replacing the Battery64
- Procedure64
- Post-Requisites64
25 Removing the I/O Board65
- Prerequisites65
- Procedure65
26 Replacing the I/O Board67
- Procedure67
- Post-Requisites67
27 Removing the Speakers68
- Prerequisites68
- Procedure68
28 Replacing the Speakers71
- Procedure71
- Post-Requisites71
29 Removing the Front Alienfx LED Boards72
- Prerequisites72
- Procedure72
30 Replacing the Front Alienfx LED Board74
- Procedure74
- Post-Requisites74
31 Removing the Processor Fan75
- Prerequisites75
- Procedure75
32 Replacing the Processor Fan78
- Procedure78
- Post-Requisites78
33 Removing the System Board79
- Prerequisites79
- Procedure79
34 Replacing the System Board83
- Procedure83
- Post-Requisites84
35 Removing the Wireless Card85
- Prerequisites85
- Procedure85
36 Replacing the Wireless Card87
- Procedure87
- Post-Requisites88
37 Removing the Heat Sink89
- Prerequisites89
- Procedure89
38 Replacing the Heat Sink91
- Procedure91
- Post-Requisites91
39 Removing the Coin-Cell Battery93
- Prerequisites93
- Procedure93
40 Replacing the Coin-Cell Battery95
- Procedure95
- Post-Requisites95
41 Removing the Video-Card Fan96
- Prerequisites96
- Procedure96
42 Replacing the Video-Card Fan98
- Procedure98
- Post-Requisites98
43 Removing the Power-Adapter Port99
- Prerequisites99
- Procedure99
44 Replacing the Power-Adapter Port101
- Procedure101
- Post-Requisites101
45 Removing the Subwoofer102
- Prerequisites102
- Procedure102
46 Replacing the Subwoofer104
- Procedure104
- Post-Requisites104
47 Removing the Display Bezel105
- Prerequisites105
- Procedure105
48 Replacing the Display Bezel110
- Procedure110
- Post-Requisites110
49 Removing the Display Panel111
- Prerequisites111
- Procedure111
50 Replacing the Display Panel114
- Procedure114
- Post-Requisites114
51 Removing the Display Hinges115
- Prerequisites115
- Procedure115
52 Replacing the Display Hinges118
- Procedure118
- Post-Requisites118
53 Removing the Computer Base119
- Prerequisites119
- Procedure119
54 Replacing the Computer Base121
- Procedure121
- Post-Requisites121
55 Removing the Logo Board122
- Prerequisites122
- Procedure122
56 Replacing the Logo Board125
- Procedure125
- Post-Requisites125
57 Removing the Camera126
- Prerequisites126
- Procedure126
58 Replacing the Camera128
- Procedure128
- Post-Requisites128
59 Removing the Display-Panel Alienfx Leds129
- Prerequisites129
- Procedure129
60 Replacing the Display-Panel Alienfx Leds132
- Procedure132
- Post-Requisites132
61 Removing the Alienware Alienhead LED Board133
- Prerequisites133
- Procedure133
62 Replacing the Alienware Alienhead LED Board136
- Procedure136
- Post-Requisites136
63 Removing the Display Back-Cover137
- Prerequisites137
- Procedure137
64 Replacing the Display Back-Cover140
- Procedure140
- Post-Requisites140
65 BIOS Setup Program142
- Overview142
- Entering BIOS Setup Program142
- BIOS Setup Program Options142
- Boot Sequence148
66 Flashing the BIOS151
67 Getting Help and Contacting Alienware152
- Self-Help Resources152
- Contacting Alienware153

Other manuals for Dell Alienware 17

Owner's Manual128 pages

Specifications1 page

Quick Start Guide2 pages
