Dell Alienware 17 - Page 47

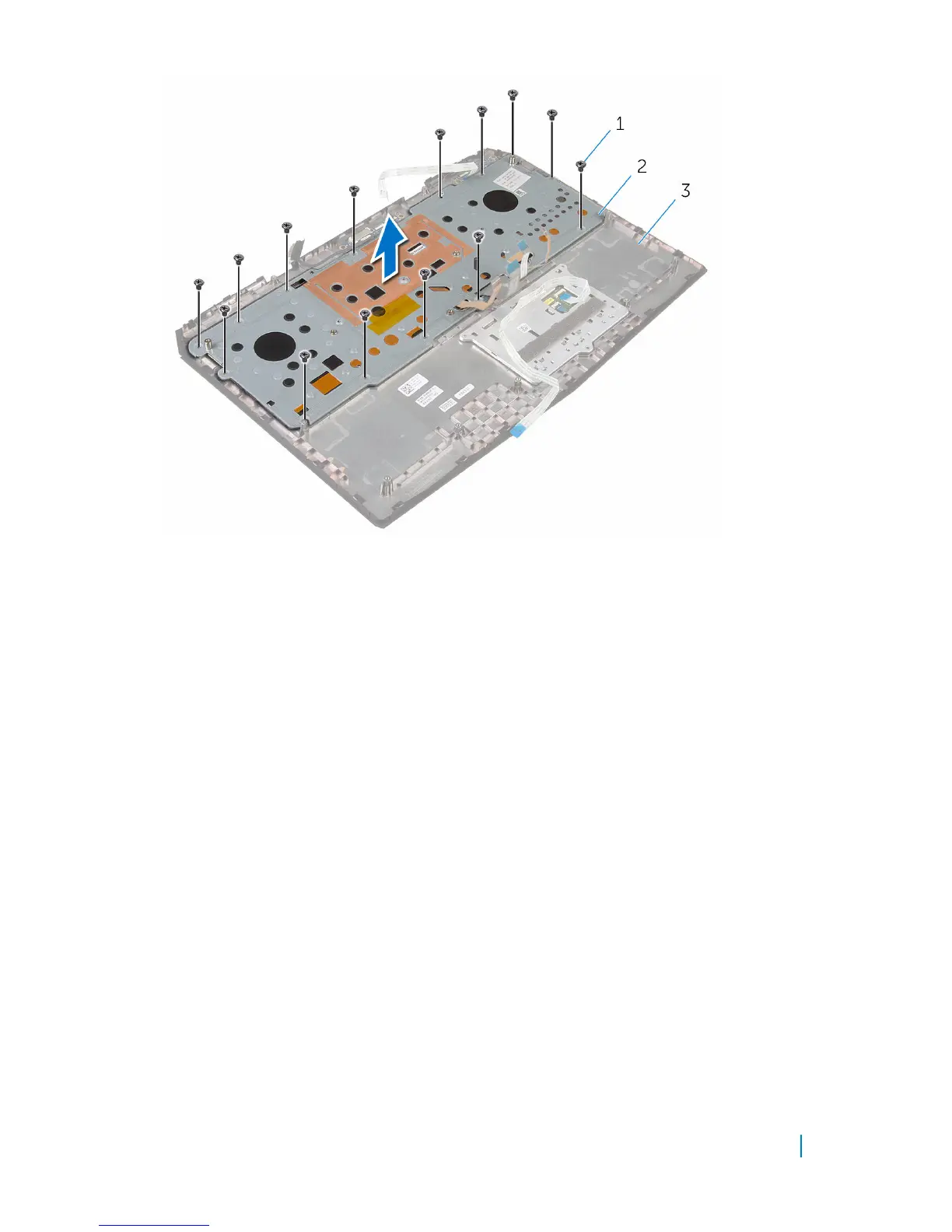

1 screws (14) 2 keyboard bracket
3 palm-rest assembly
6 Remove the screws that secure the keyboard to the palm-rest assembly.
7 Release the tabs that secure the keyboard to the palm-rest assembly.
8 Slide and lift the keyboard along with the cables off the palm-rest assembly.
Removing the keyboard 47
