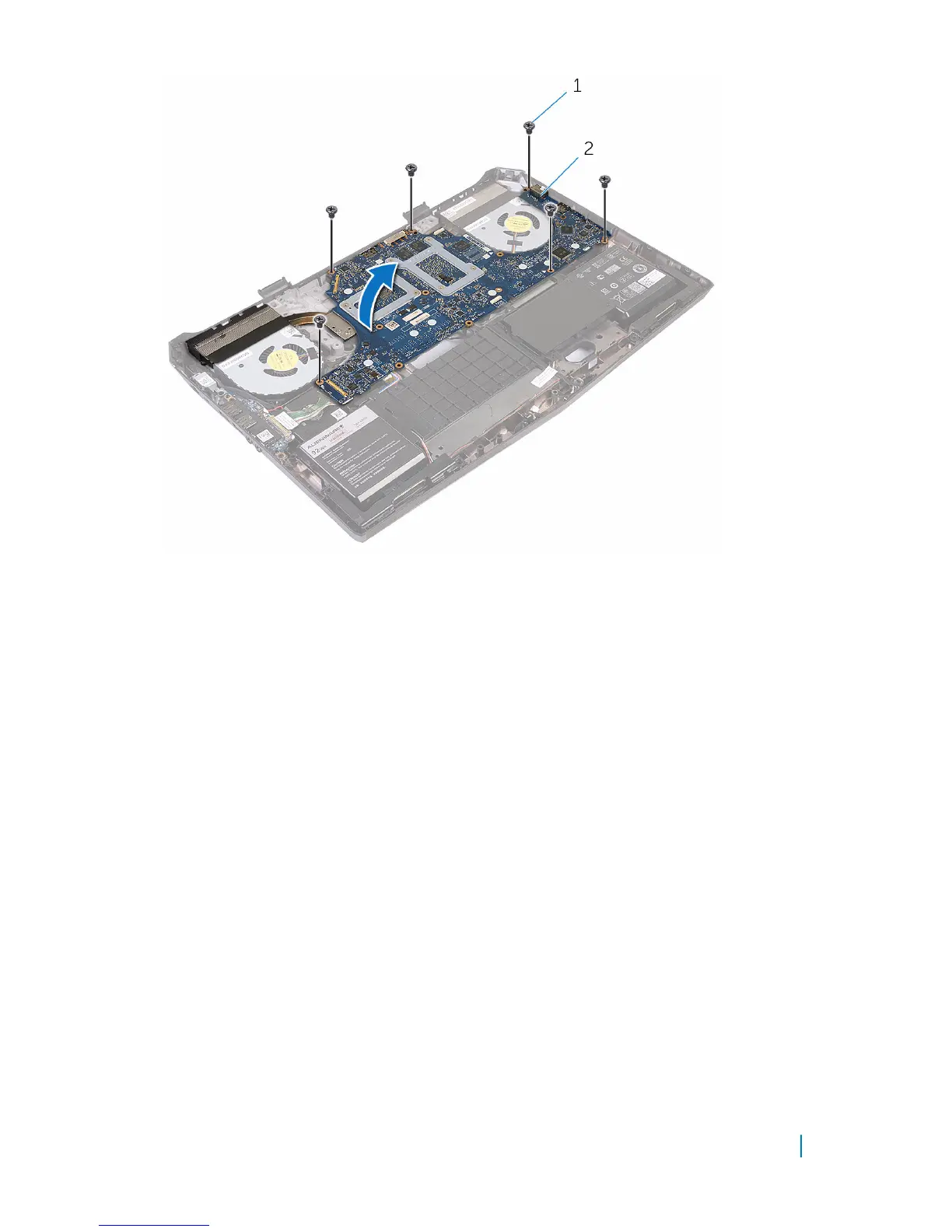

1 screws (6) 2 system board

8 Remove the wireless card.

9 Remove the heat sink.

10 Remove the coin-cell battery.

Removing the system board 82
