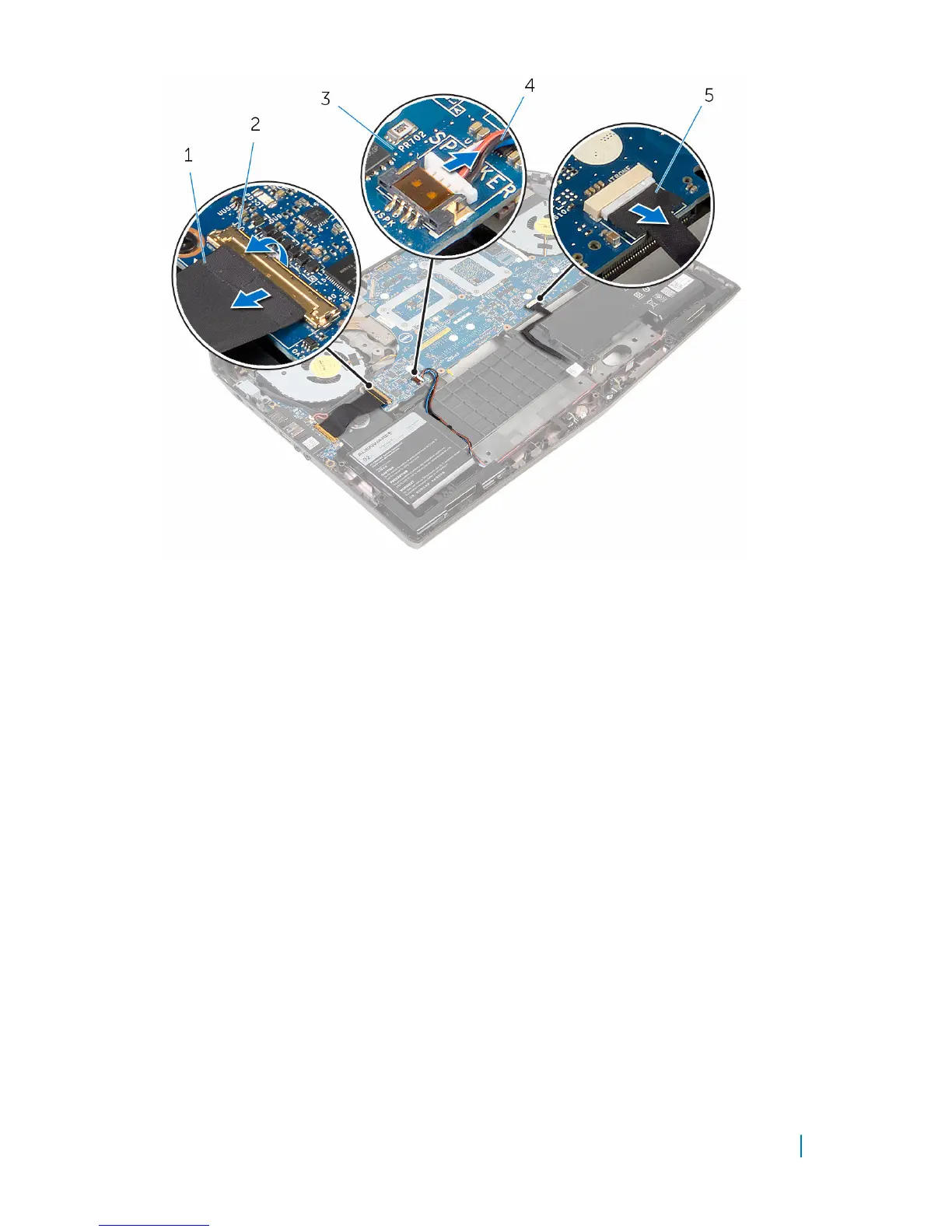

1
I/O-board cable
2
latch
3
system board
4
speaker cable
5
front AlienFX LED cable
6
Remove the screws that secure the system board to the computer base.
7
Lift the system board off the computer base.
Removing the system board
81
