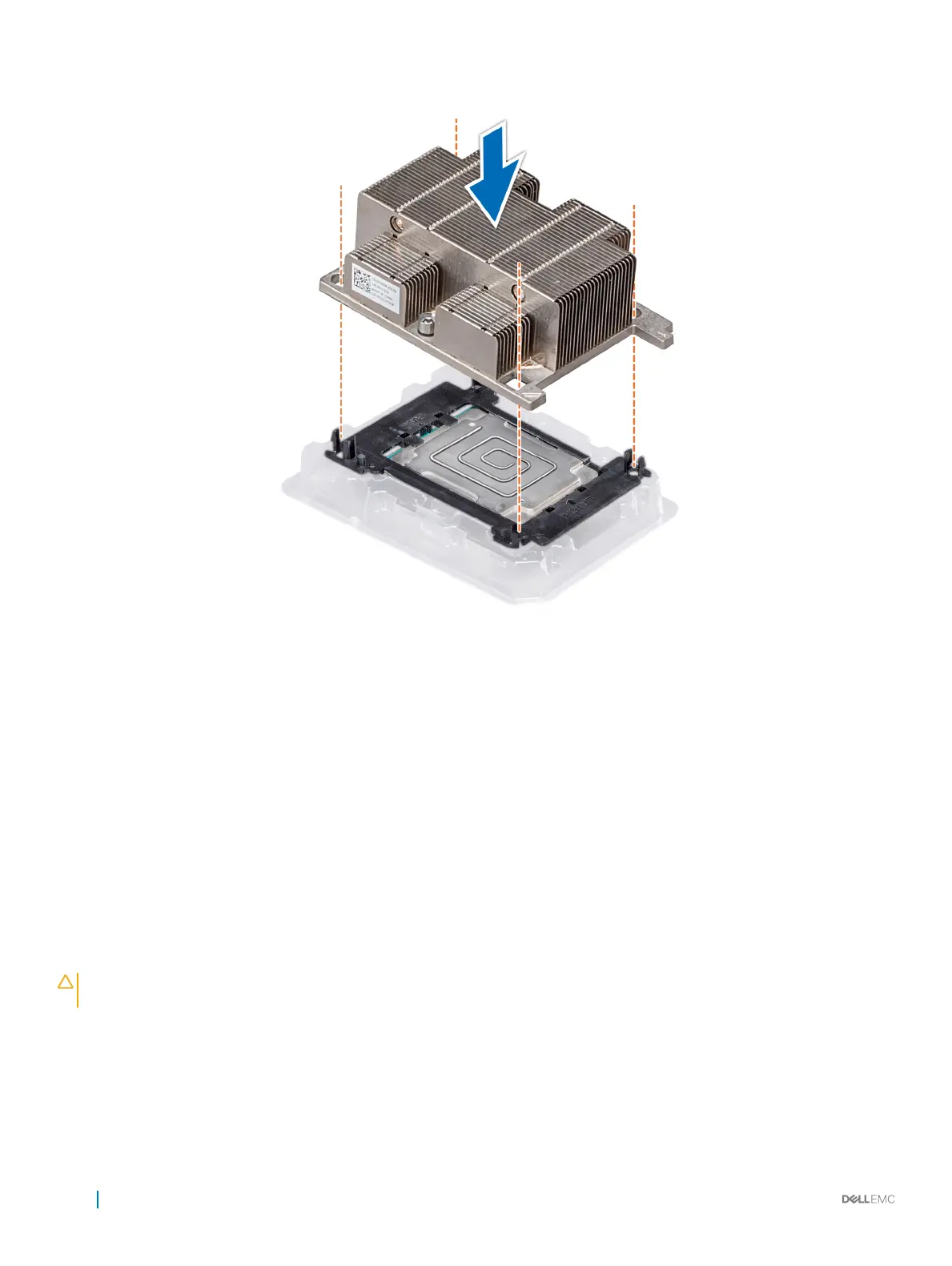

Figure 58. Installing the heat sink onto the processor
Next steps
1 Install the processor and heat sink module.
2 Install the air shroud.
3 Follow the procedure listed in After working inside your system.
Related link
Installing a processor and heat sink module
Installing the air shroud
Installing a processor and heat sink module
Prerequisites
CAUTION
: Never remove the heat sink from a processor unless you intend to replace the processor. The heat sink is necessary to
maintain proper thermal conditions.
1 Follow the safety guidelines listed in Safety instructions.
2 If installed, remove the CPU dust cover.
Steps
1 Align the pin 1 indicator of the heat sink to the system board and then place the processor and heat sink module (PHM) on the
processor socket.
106
Installing and removing system components
