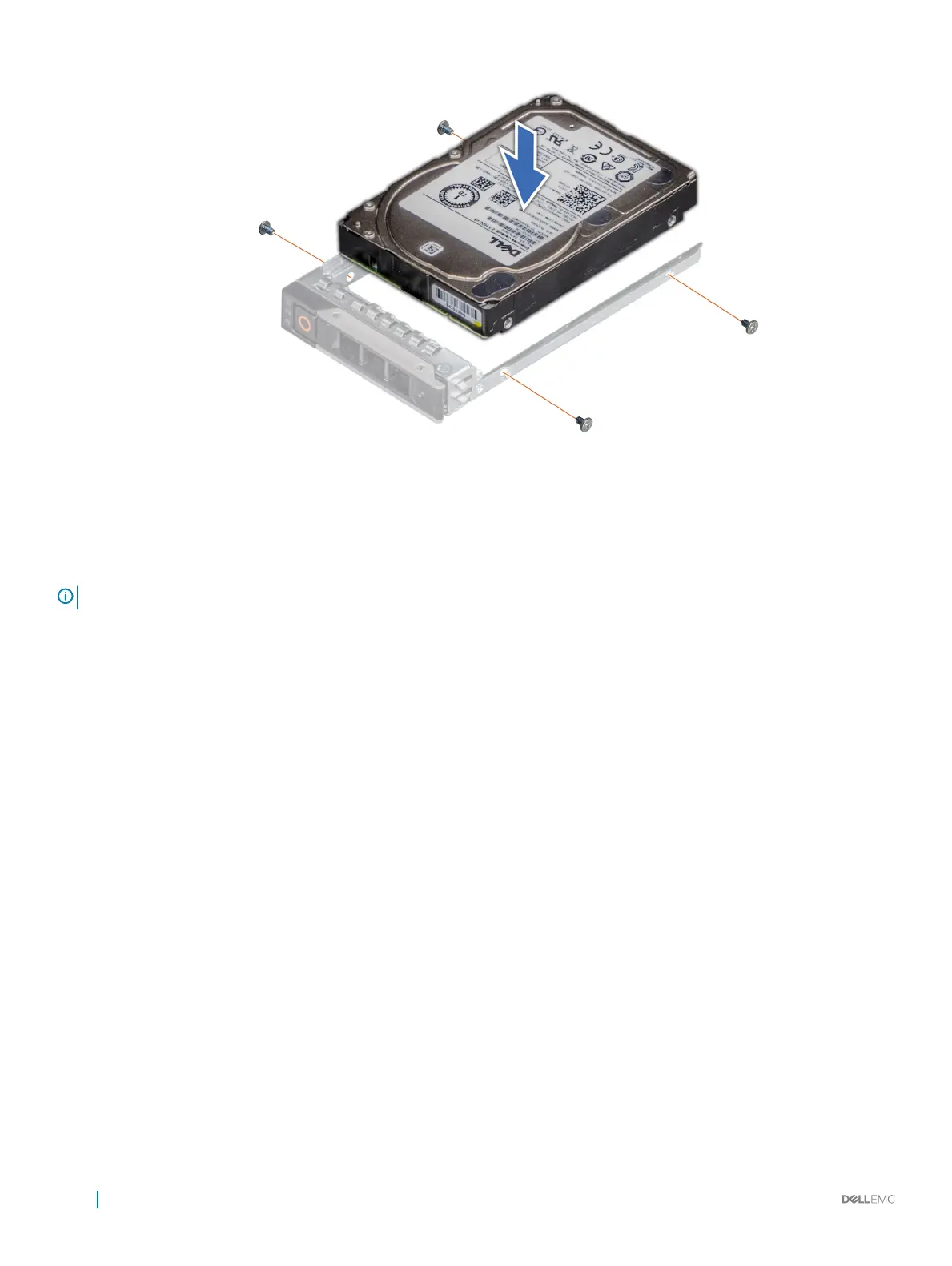

Figure 49. Installing a drive into the drive carrier
System memory
The system supports DDR4 registered DIMM (RDIMMs) slots. System memory holds the instructions that are executed by the processor.
NOTE
: MT/s indicates DIMM speed in MegaTransfers per second.
Memory bus operating frequency can be 2666 MT/s, 2400 MT/s, or 2133 MT/s depending on the following factors:
• DIMM type (RDIMM)
• Number of DIMM slots populated per channel
• System prole selected (for example, Performance Optimized, or Custom [can be run at high speed or lower])
• Maximum supported DIMM frequency of the processors
Your system contains 16 memory sockets. CPU1 supports up to 10 memory sockets and CPU2 supports up to 6 memory sockets.
96
Installing and removing system components
