Dell EMC PowerEdge R540 - Internal PERC Riser; Removing Internal PERC Riser

NOTE: In the 12 x 3.5 inch drive system, connect the fan 1 cable to the power interposer board connector.

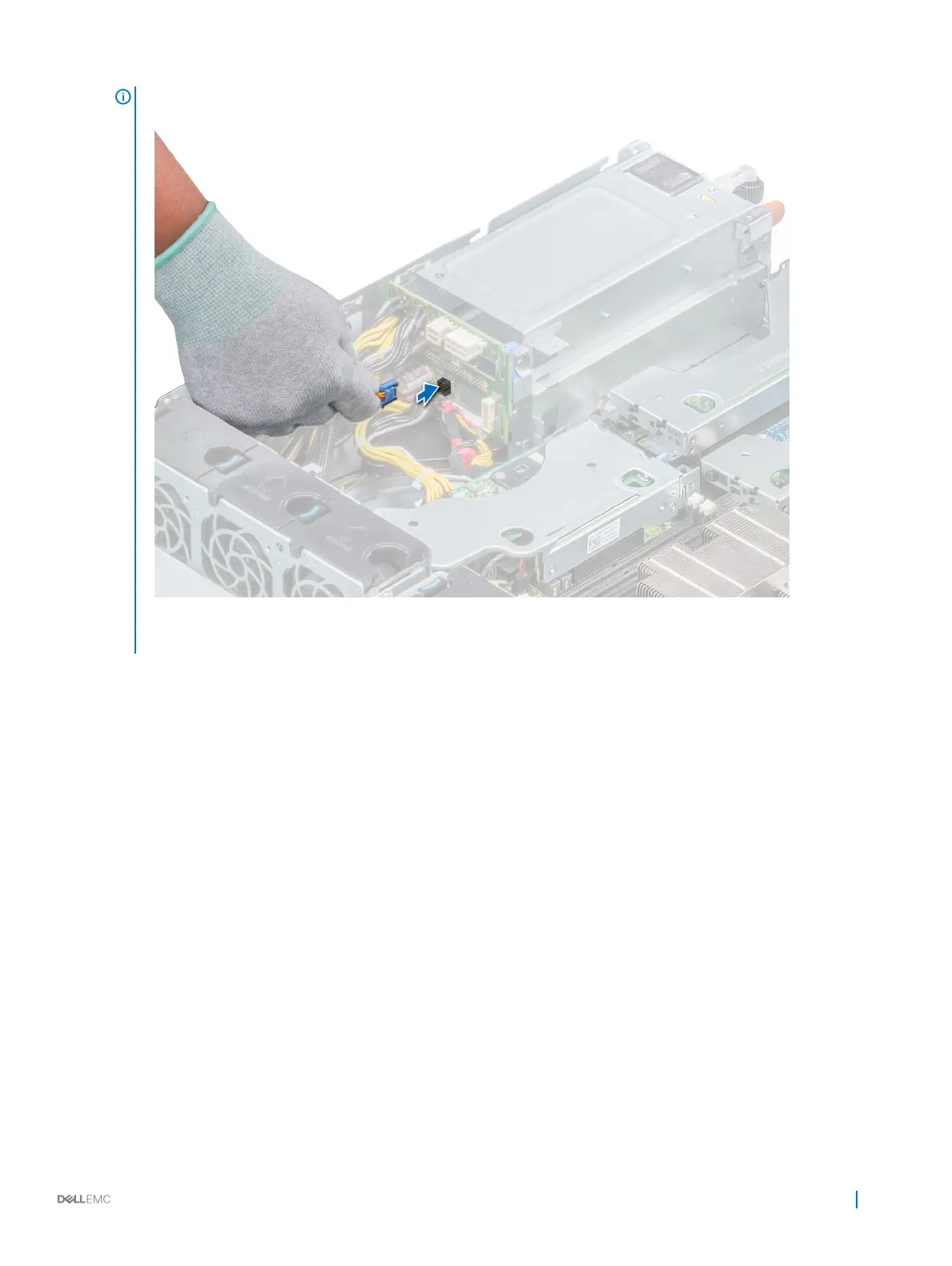

Figure 31. Connecting fan cable to PIB connector
Next steps
1 Install the internal PERC riser.
2 Install the air shroud.
3 Follow the procedure listed in After working inside your system.
Related link
Installing internal PERC riser
Installing the air shroud
Internal PERC riser
The internal PERC riser has Harpoon-based Premium Performance tier oering that will drive IOPs and enhanced SSD performance.
Removing internal PERC riser
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the air shroud.
4 Open the cable guiding latch for easy access.
