Dell EMC PowerEdge R540 - Installing a Drive into the Drive Carrier

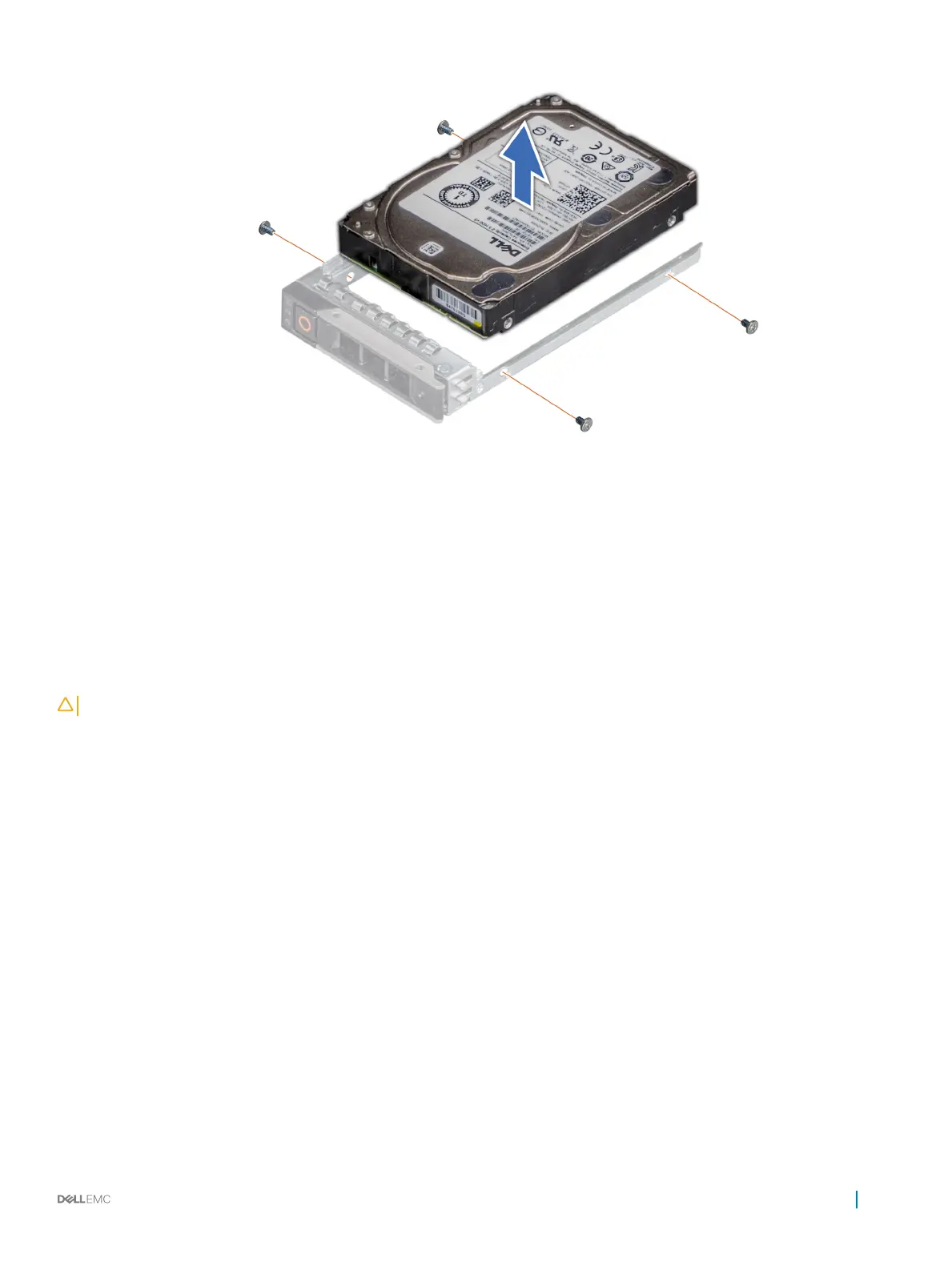

Figure 48. Removing the drive from the drive carrier
Next step
If applicable, install the drive into the drive carrier.
Related link
Installing a drive into the drive carrier
Installing a drive into the drive carrier
Prerequisite
CAUTION
: Mixing drive carriers from other generations of PowerEdge servers is not supported.
Steps
1 Insert the drive into the drive carrier with the connector end of the drive towards the back of the carrier.
2 Align the screw holes on the drive with the screws holes on the drive carrier.
When aligned correctly, the back of the drive is ush with the back of the drive carrier.
3 Using the Phillips #1 screwdriver, secure the drive to the drive carrier with screws.
