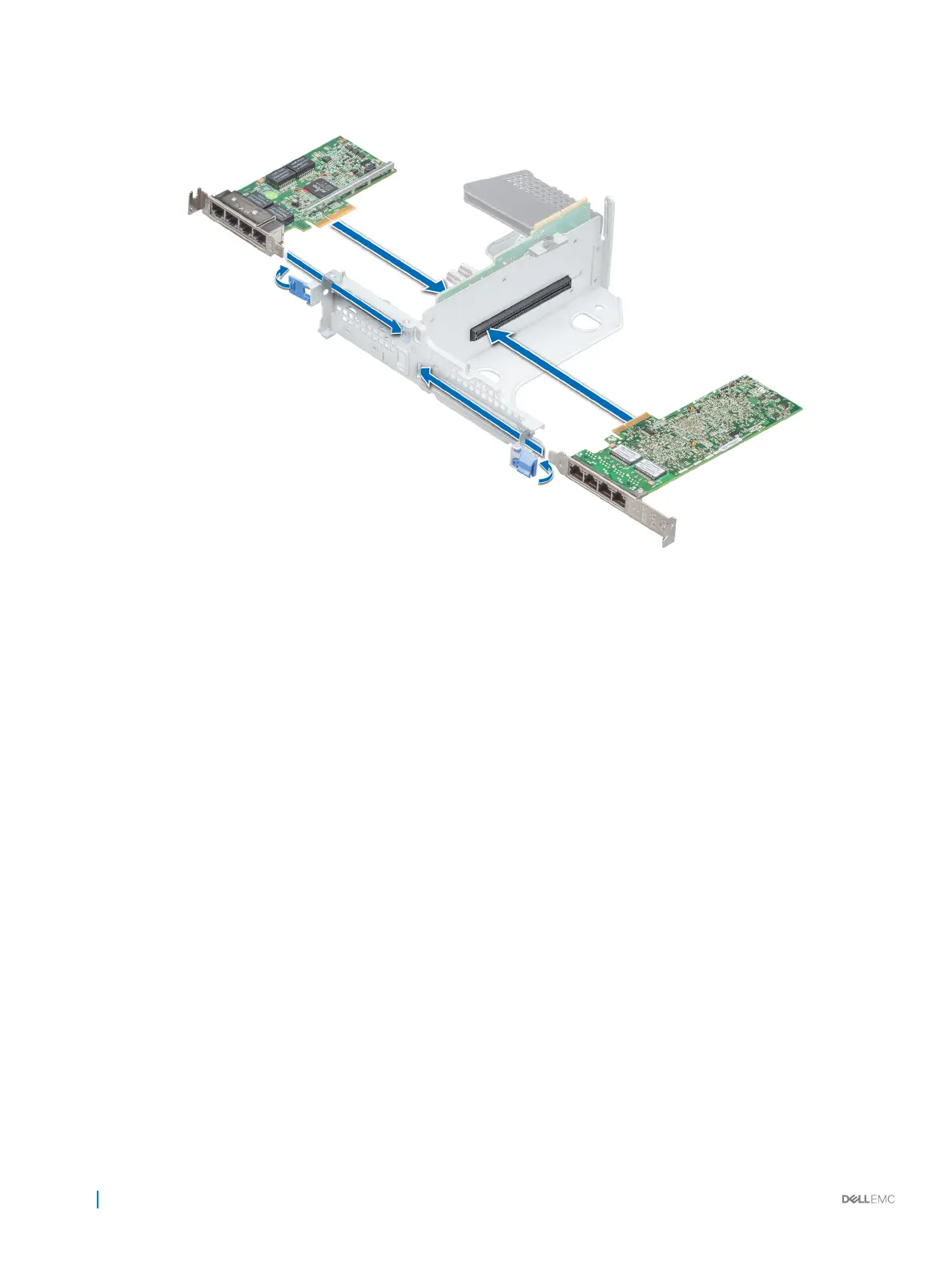

Figure 71. Installing expansion card into buttery riser
Next steps
1 If applicable, connect the cables to the expansion card.
2 If applicable, install air shroud.
3 Follow the procedure listed in After working inside your system.
4 Install any device drivers required for the card as described in the documentation for the card.
Related link
Installing the air shroud
Removing expansion card from the system board
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Disconnect any cables connected to the expansion card.
Steps
1 Pull and lift up the expansion card retention latch lock to open.
2 Hold the expansion card by the edge and pull the card to disconnect from the system board connector.
118
Installing and removing system components
