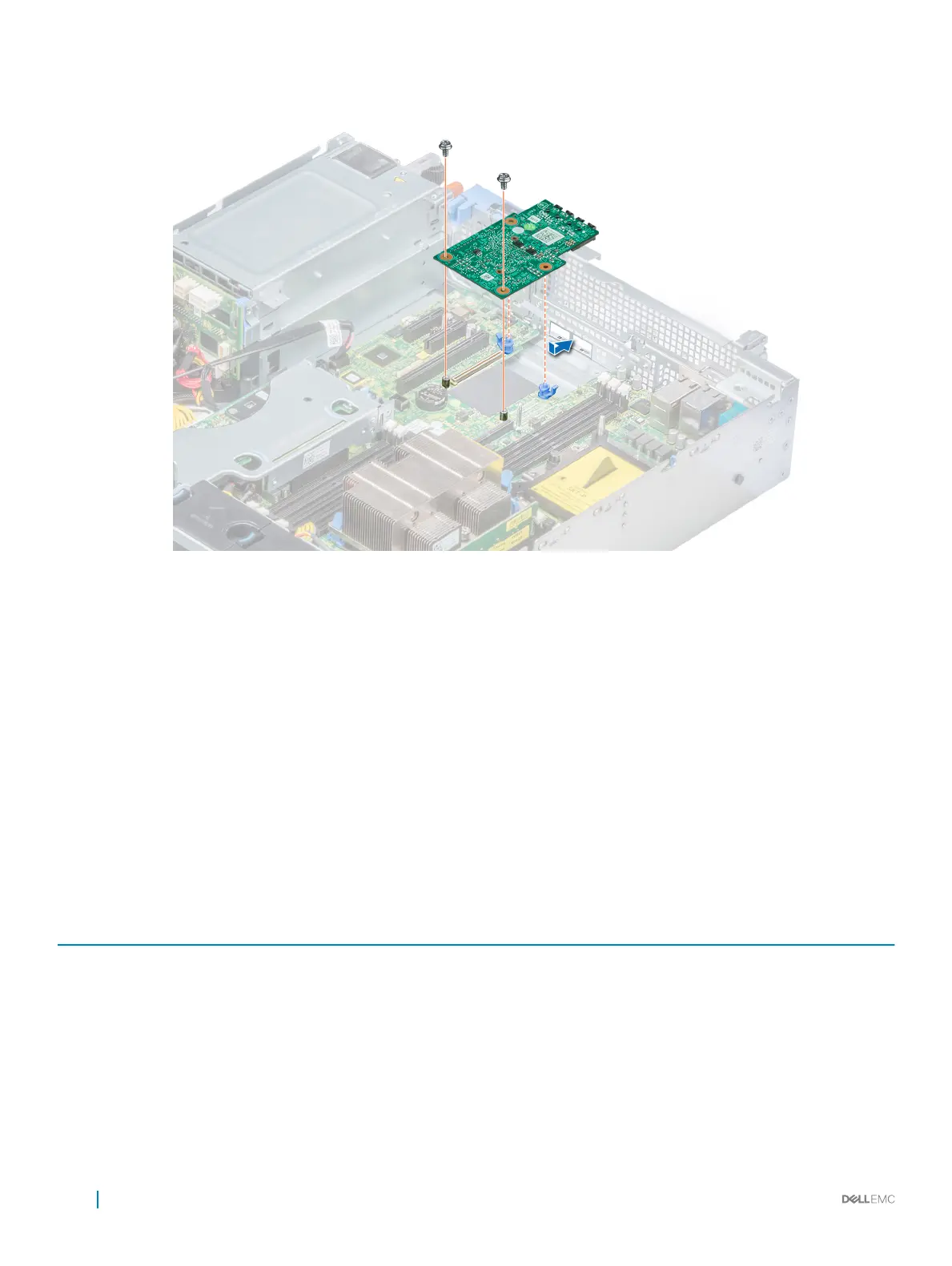

Figure 87. Installing LOM riser card
Next steps
1 If removed, install the low prole, full height X1, or buttery risers.
2 If removed, install the rear drive cage.
3 Follow the procedure listed in After working inside your system.
Related link
Installing an expansion card riser
Installing the rear drive cage
Drive backplane
Depending on your system conguration, the drive backplanes supported in PowerEdge R540 are listed here:
Table 49. Supported backplane options for
PowerEdge R540 systems
System Supported hard drives options
PowerEdge R540
3.5 inch (x8) SAS, SATA backplane
3.5 inch (x12) SAS or SATA backplane and 3.5 inch (x2) SAS or
SATA backplane (rear)
132 Installing and removing system components
