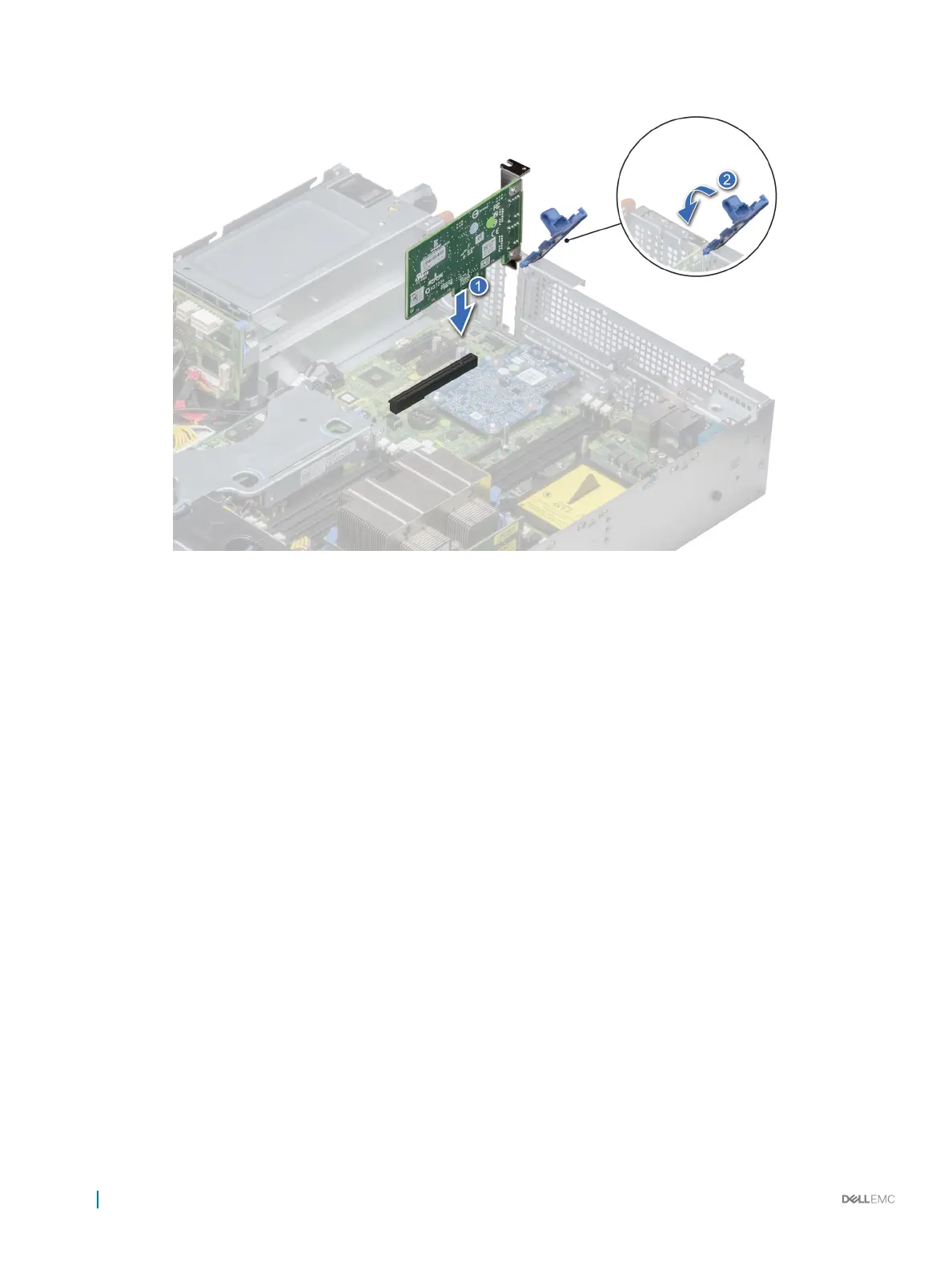

Figure 75. Installing expansion card on system board
Next steps
1 Connect the required cables to the expansion card.
2 Follow the procedure listed in After working inside your system.
Removing an expansion card riser
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Disconnect any cables connected to the expansion card.
Step
Hold the touch points, and lift the expansion card riser, from the riser connector, on the system board.
122
Installing and removing system components
