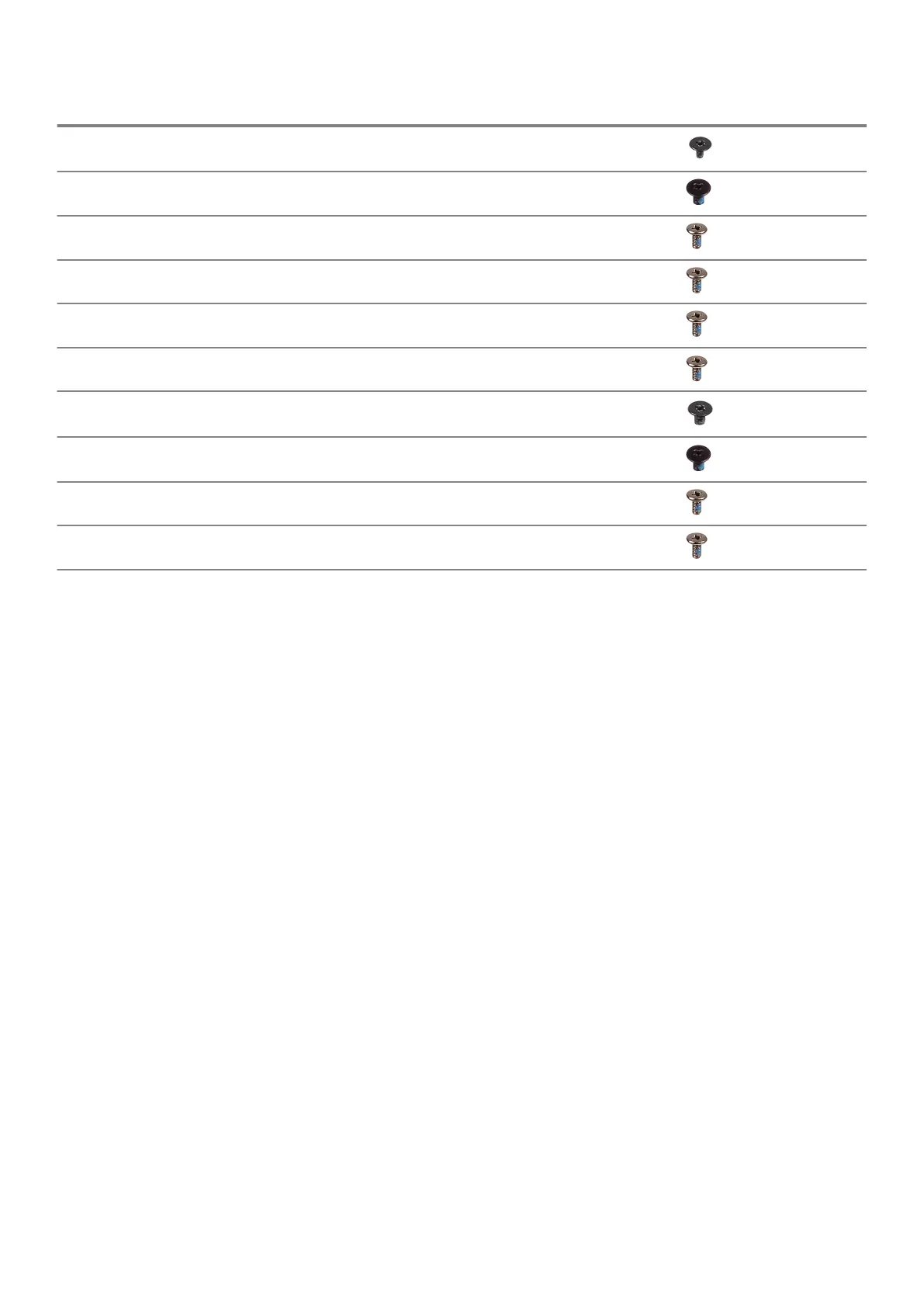

Component Secured to Screw type Quantity Screw image
Power-adapter port Palm-rest and keyboard
assembly
M1.2x2 1
Power button and optional
fingerprint reader
Palm-rest and keyboard
assembly
M1.6x2 2
GPU fan Palm-rest and keyboard
assembly
M2x4 2
M.2 2280 Solid-state drive System board M2x4 2
M.2 2230 Solid-state drive Palm-rest and keyboard
assembly
M2x4 1
USB Type-C bracket System board M2x4 2
Touchpad bracket Palm-rest and keyboard
assembly
M2x3 3
Touchpad Palm rest and keyboard
assembly
M1.6x2 2
WLAN card bracket WLAN card M2x4 1
System board Palm-rest and keyboard
assembly
M2x4 6
Base cover
Removing the base cover
1. Follow the procedure in Before working inside your computer.
The figure indicates the location of the base cover and provides a visual representation of the removal procedure.
10
Removing and installing components
