5. Remove the display assembly.

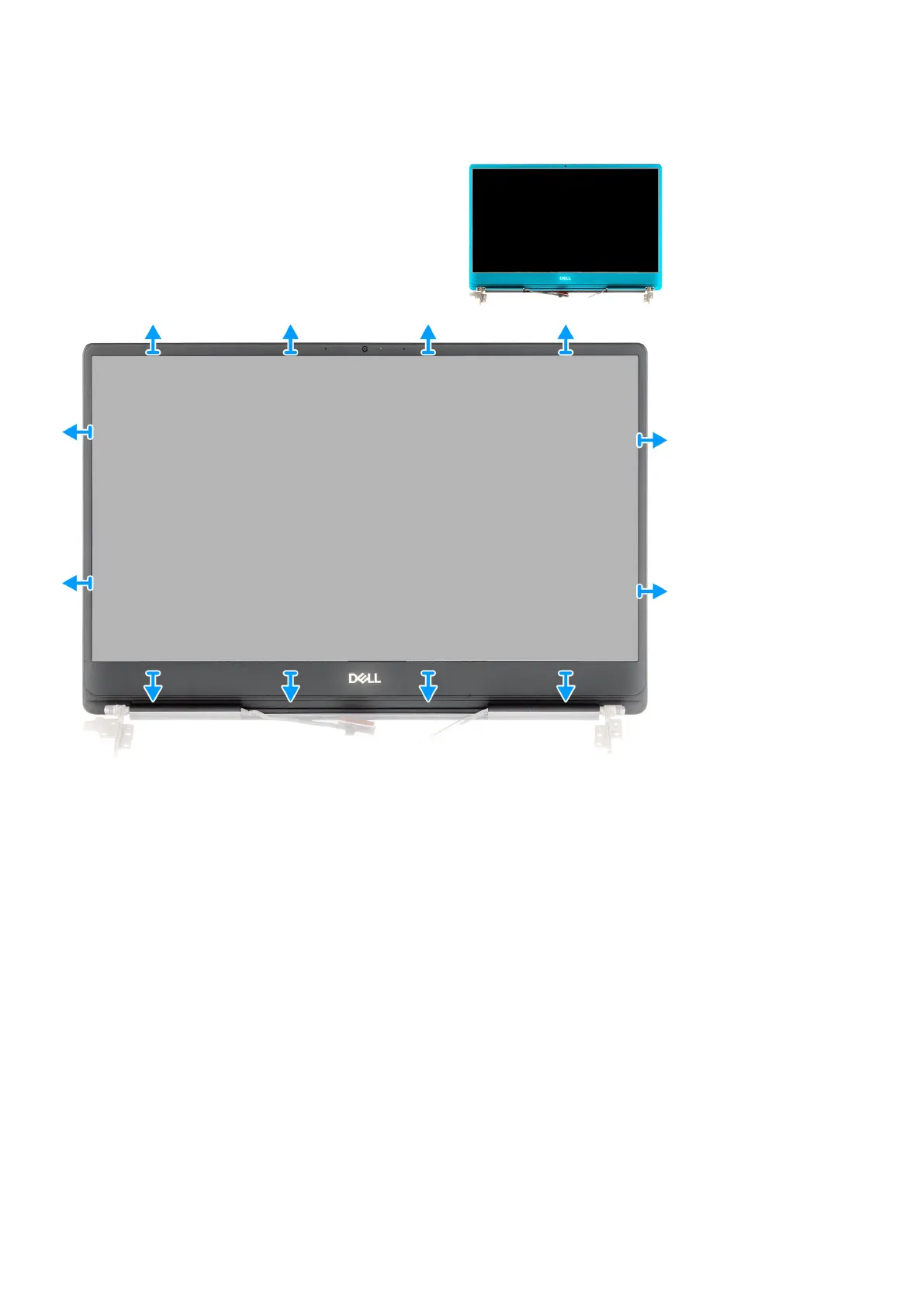

The figure indicates the location of the display bezel and provides a visual representation of the removal procedure.
1. Carefully pry the edges of the display bezel off the display back-cover and antenna assembly.
2. Remove the display bezel off the display back-cover and antenna assembly.
Installing the display bezel
If you are replacing a component, remove the existing component before performing the installation procedure.
The figure indicates the location of the display bezel and provides a visual representation of the installation procedure.
50
Removing and installing components
