1. Open the latch and disconnect the hard-drive cable from the system board.
2. Remove the three screws (M2x4) that secure the hard-drive bracket to the palm-rest and keyboard assembly.
3. Lift the hard-drive assembly, along with its cable, off the palm-rest and keyboard assembly.
4. Disconnect the interposer from the hard-drive assembly.
5. Remove the four screws (M3x3) that secure the hard-drive bracket to the hard drive.
6. Lift the hard drive off of the hard-drive bracket.
Installing the hard drive
If you are replacing a component, remove the existing component before performing the installation procedure.

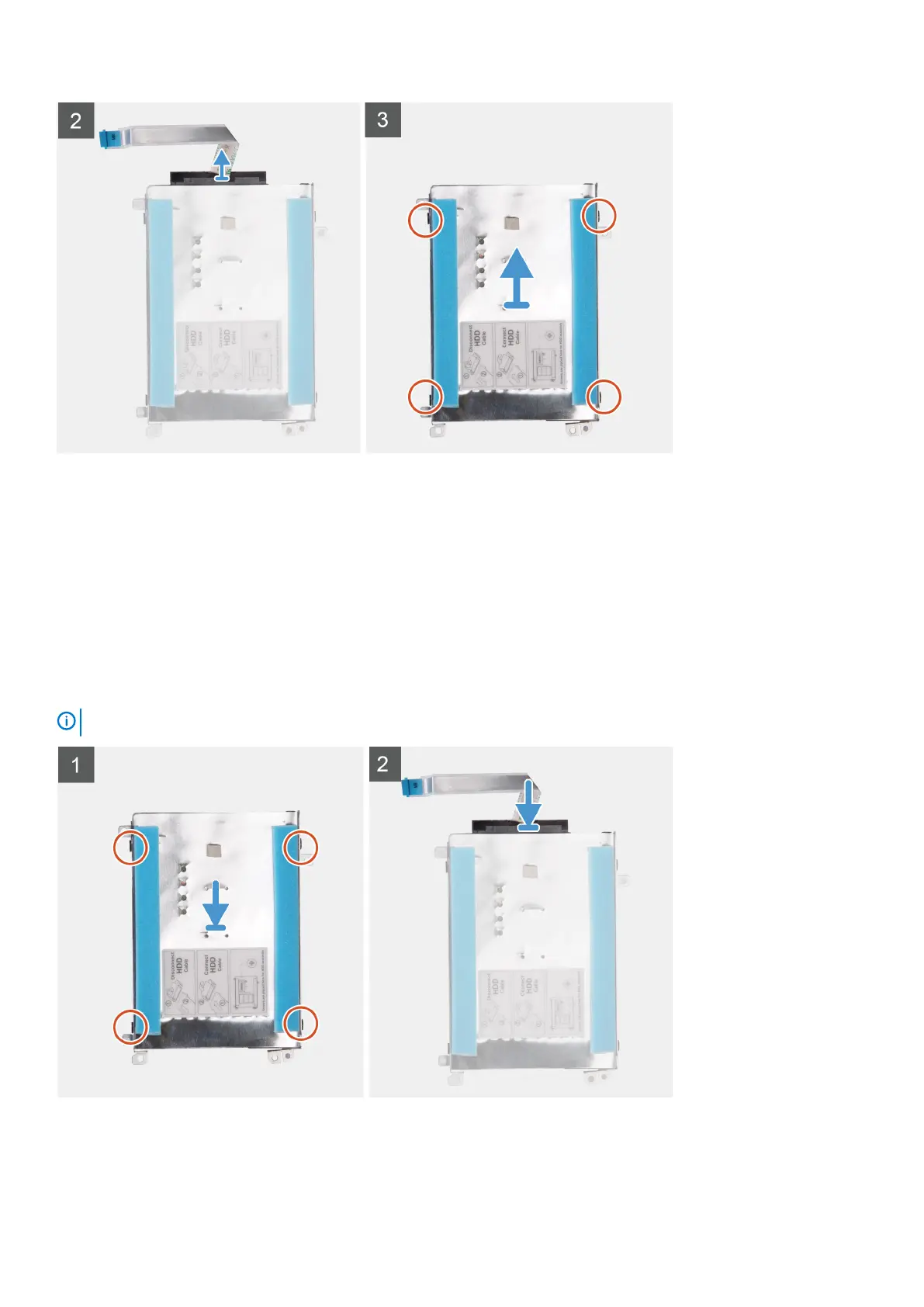

The figure indicates the location of the hard drive and provides a visual representation of the installation procedure.
NOTE:
The hard drive is available only in computers shipped with 3-cell battery.
26 Removing and installing components
