2. Install the GPU fan.
3. Install the battery.
4. Install the base cover.
5. Follow the procedure in After working inside your computer.
Removing the heat sink—discrete
NOTE: The heat sink type in your computer varies depending on the configuration ordered.
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the GPU fan.
5. Remove the CPU fan.

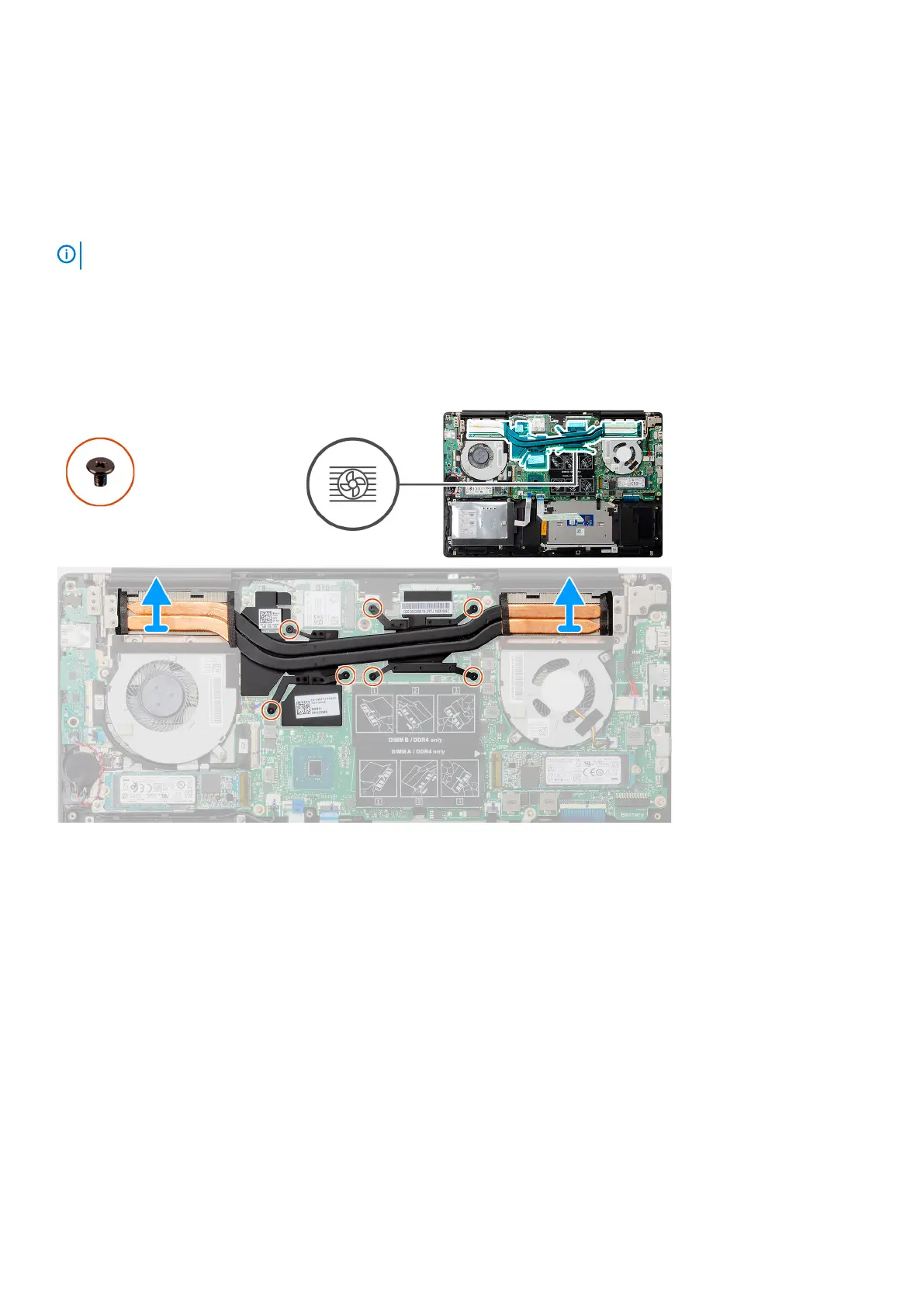

The figure indicates the location of the heat sink and provides a visual representation of the removal procedure.
1.
In sequential order (as indicated on the heat sink), loosen the seven captive screws that secure the heat sink to the system board.
2. Lift and remove the heat sink off the system board.
Installing the heat sink—discrete
If you are replacing a component, remove the existing component before performing the installation procedure.
The figure indicates the location of the heat sink and provides a visual representation of the installation procedure.
34
Removing and installing components
