1. Connect the battery cable.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Hard drive
Removing the hard drive
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery cable.

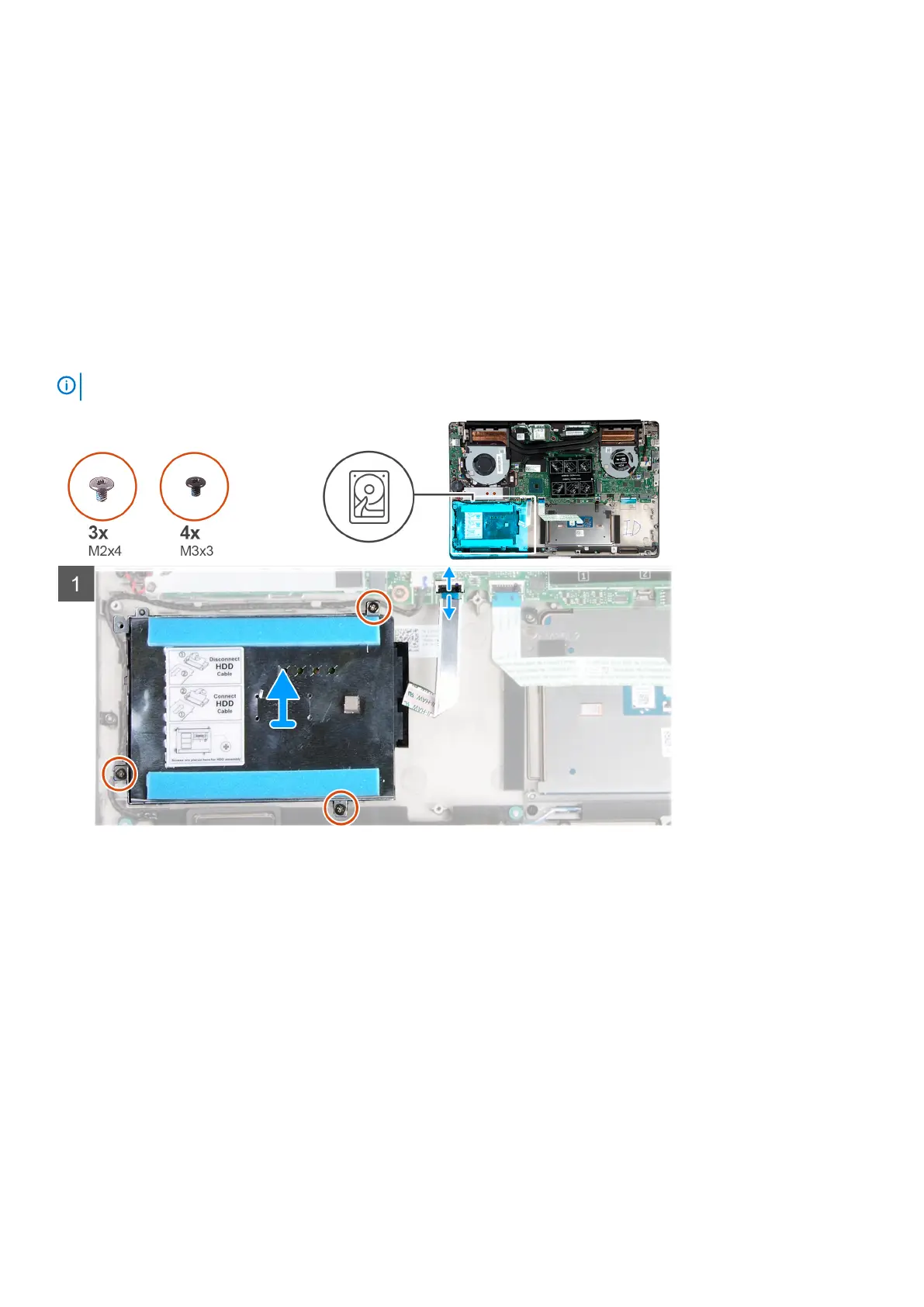

The figure indicates the location of the hard drive and provides a visual representation of the removal procedure.
NOTE:
The hard drive is available only in computers shipped with 3-cell battery.
Removing and installing components 25
