3. Replace the two (M2x4) screws to secure the GPU fan to the palm-rest and keyboard assembly.
4. Connect the GPU fan cable to the system board.
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
CPU fan
Removing the CPU fan
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.

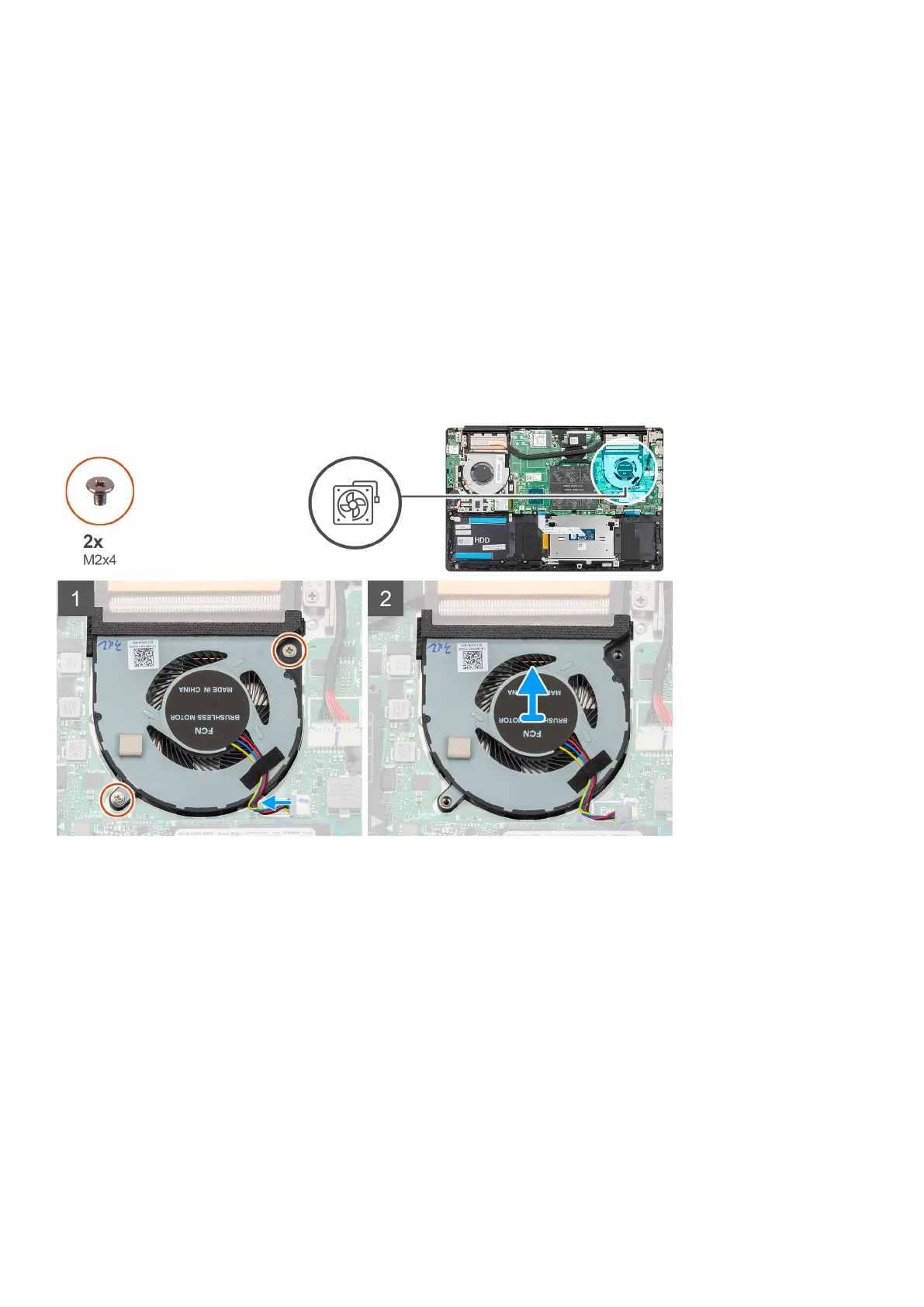

The figure indicates the location of the CPU fan and provides a visual representation of the removal procedure.
1.
Remove the two (M2x4) screws that secure the CPU fan to the palm-rest and keyboard assembly.
2. Disconnect the CPU fan cable from the system board.
3. Slide and lift the CPU fan off the palm-rest and keyboard assembly.
Installing the CPU fan
If you are replacing a component, remove the existing component before performing the installation procedure.
The figure indicates the location of the CPU fan and provides a visual representation of the installation procedure.
Removing and installing components
31
