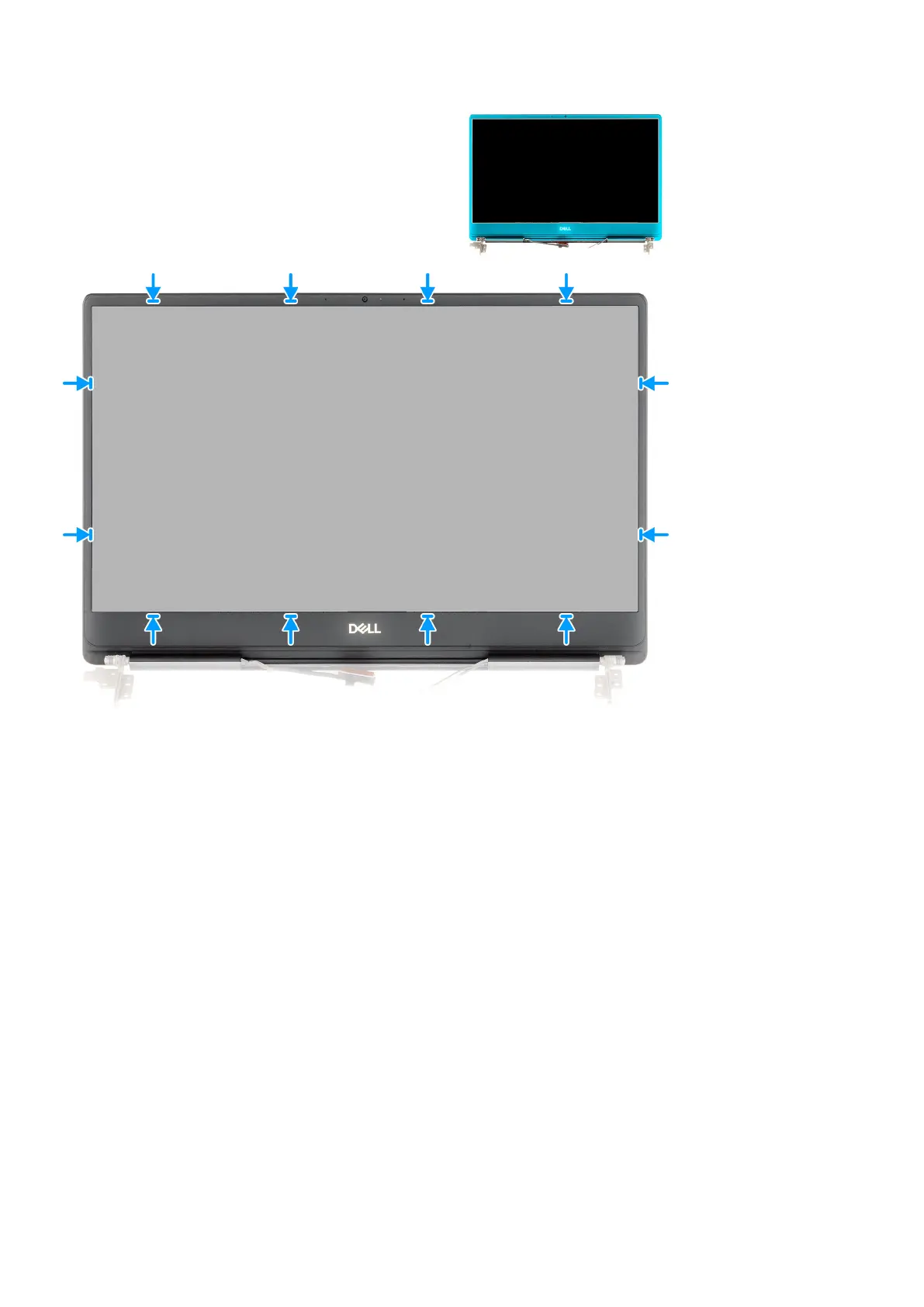

Align the display bezel with the display back-cover and antenna assembly, and gently snap the display bezel into place.
1. Install the display assembly.
2. Install the WLAN card.
3. Install the battery.
4. Install the base cover.
5. Follow the procedure in After working inside your computer.
System board
Removing the system board
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the M.2 2280 solid-state drive.
5. Remove the M.2 2230 solid-state drive.
6. Remove the WLAN card.
7. Remove the GPU fan.
8. Remove the CPU fan.
9. Remove the heat sink.
10. Remove the memory module.
11. Remove the display assembly.
Removing and installing components
51
