1. Disconnect the speaker cable from the system board.
2. Note the routing of the speaker cable and remove the speaker cable from the routing guides on the palm-rest and keyboard assembly.
NOTE:
Note the position of the rubber grommets before lifting the speakers.
3. Lift the speakers, along with the cable, off the palm-rest and keyboard assembly.
Installing the speakers
If you are replacing a component, remove the existing component before performing the installation procedure.

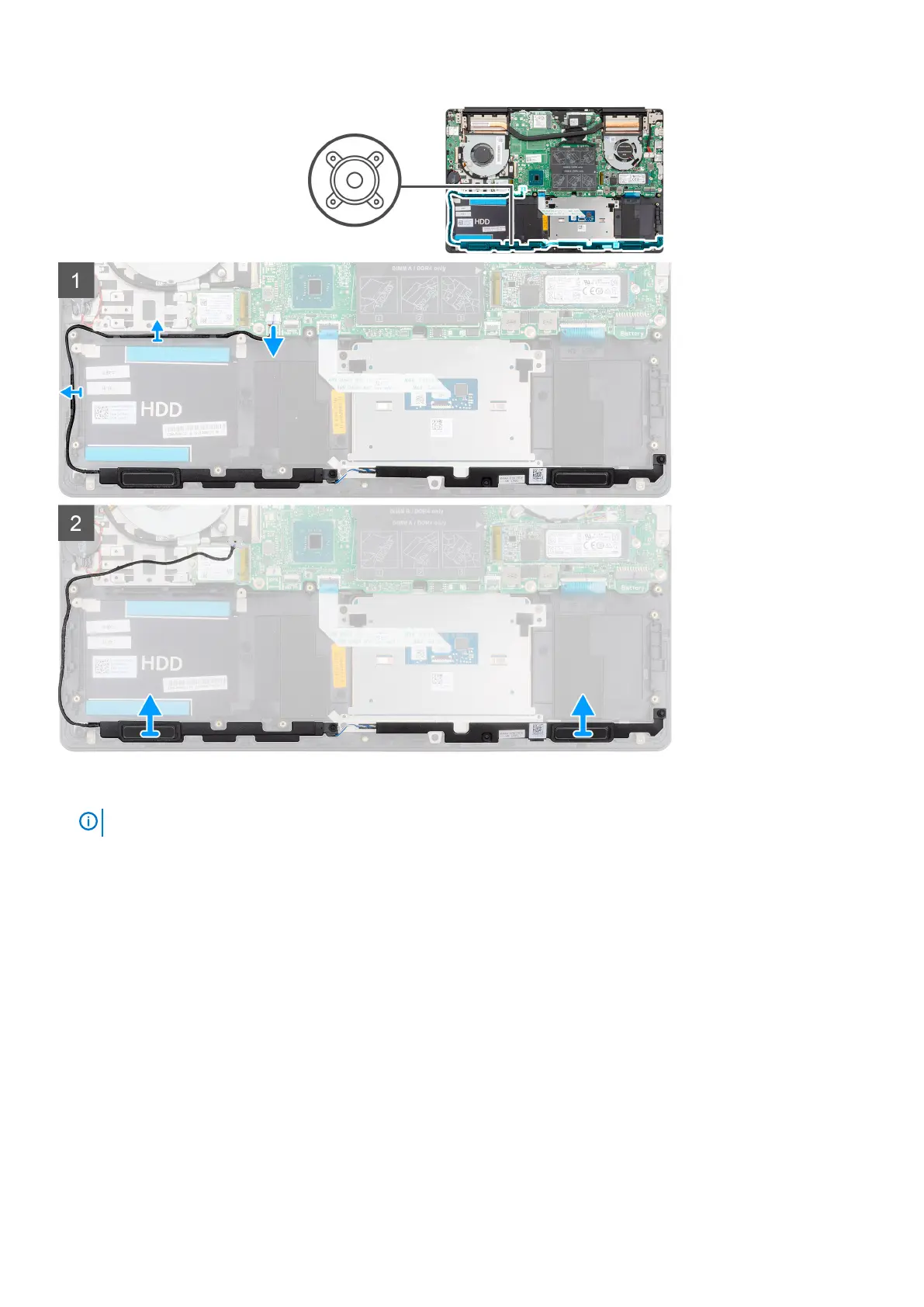

The figure indicates the location of the speakers and provides a visual representation of the installation procedure.
