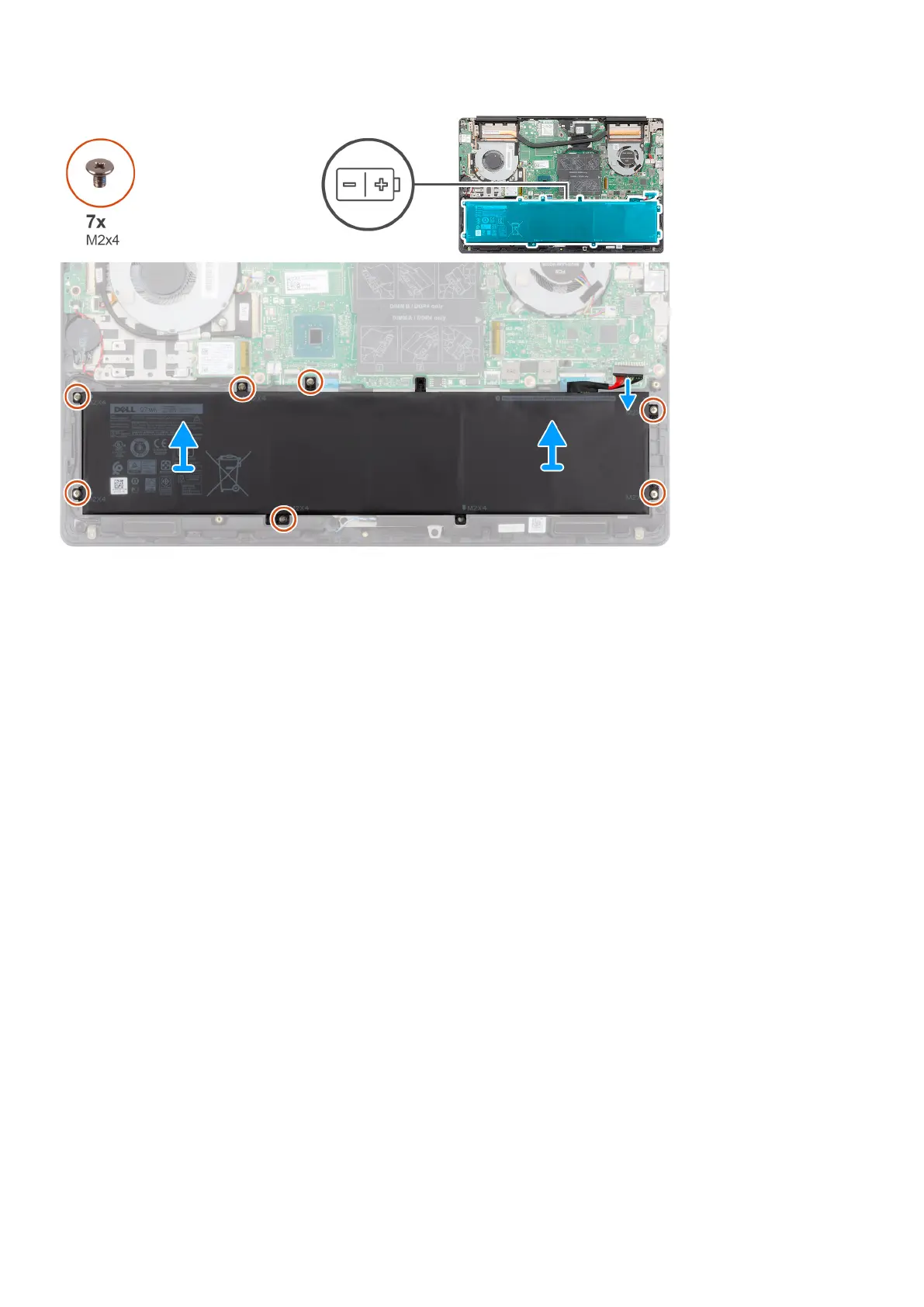

1. Disconnect the battery cable from the system board.
2. Remove the seven screws (M2x4) that secure the battery to the palm-rest and keyboard assembly.
3. Lift the battery off the palm-rest and keyboard assembly.
Installing the 6-cell battery
If you are replacing a component, remove the existing component before performing the installation procedure.
The figure indicates the location of the battery and provides a visual representation of the installation procedure.
Removing and installing components
15
