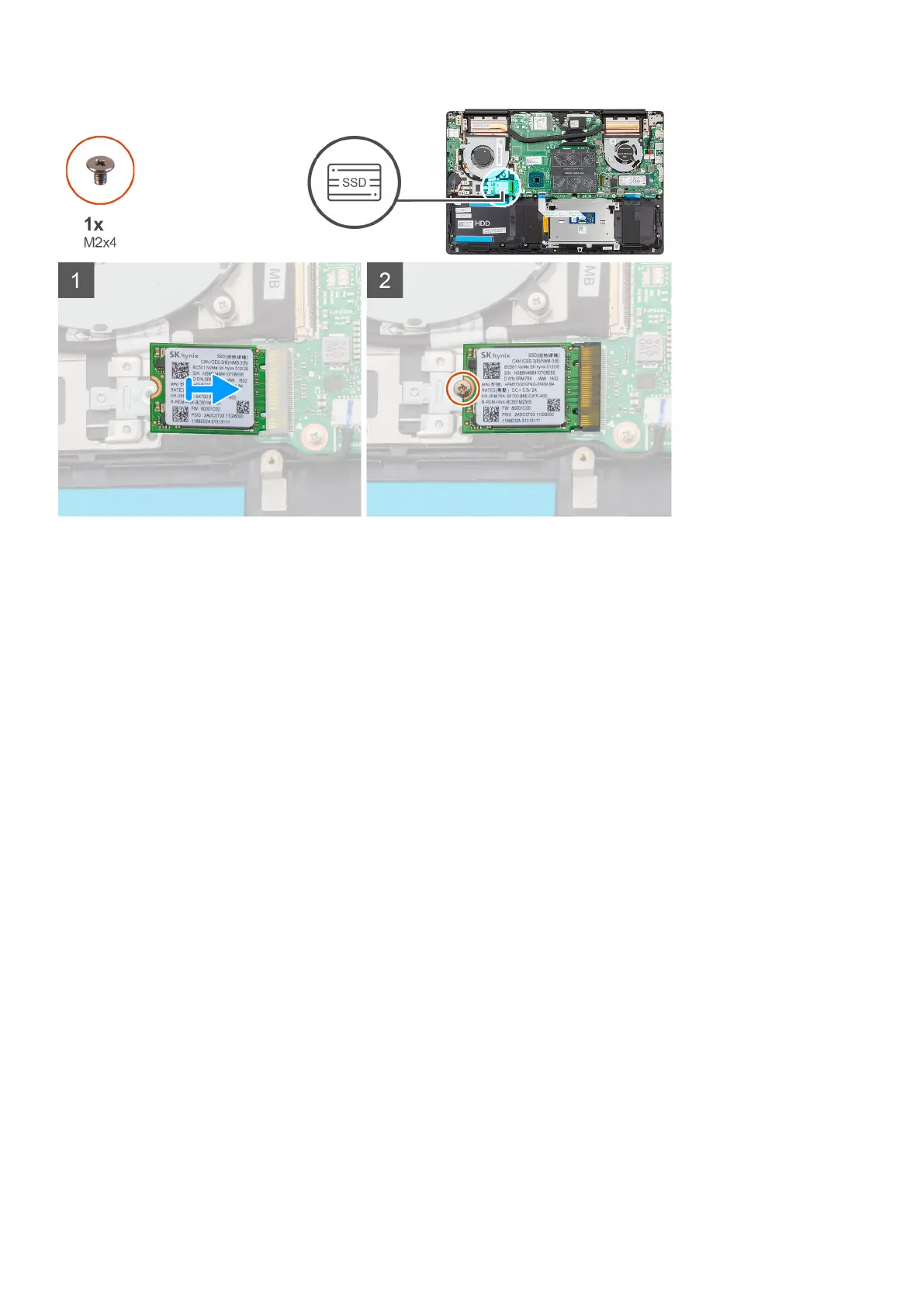

1. If required, align the solid-state drive bracket to accommodate the M.2 2230 solid-state drive.
2. Align the notch on the solid-state drive module with the tab on the solid-state drive slot.
3. Slide the solid-state drive module firmly into the solid-state drive slot at an angle.
4. Replace the screw (M2x4) that secures the solid-state drive module to the palm-rest and keyboard assembly.
1. Connect the battery cable.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Removing the M.2 2280 PCIe solid-state drive
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery cable.
The figure indicates the location of the M.2 2280 PCIe solid-state drive and provides a visual representation of the removal procedure.
