1. Place the display assembly on a clean and flat surface.
2. Align and place the palm-rest and keyboard assembly on the display assembly.

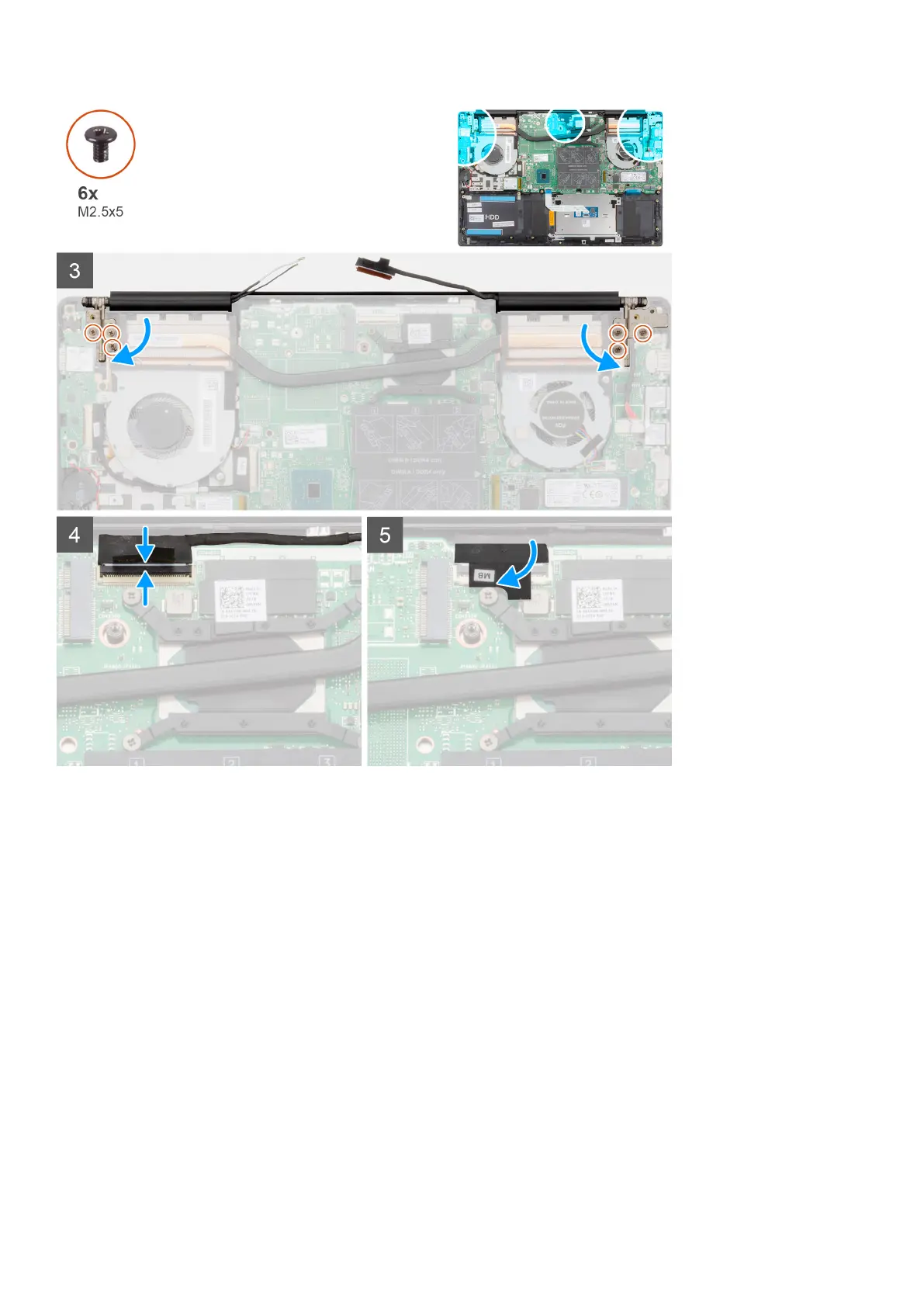

3. Using the alignment posts, close the display hinges.
4. Replace the three screws (M2.5x5) that secure the left-display hinge to the system board.
5. Replace the three screws (M2.5x5) that secure the right-display hinge to the system board.
6. Connect the display cable on to the connector on the system board and adhere the tape to the system board.
1. Install the WLAN card.
2. Install the battery.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
Display bezel
Removing the display bezel
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN card.
Removing and installing components
49
