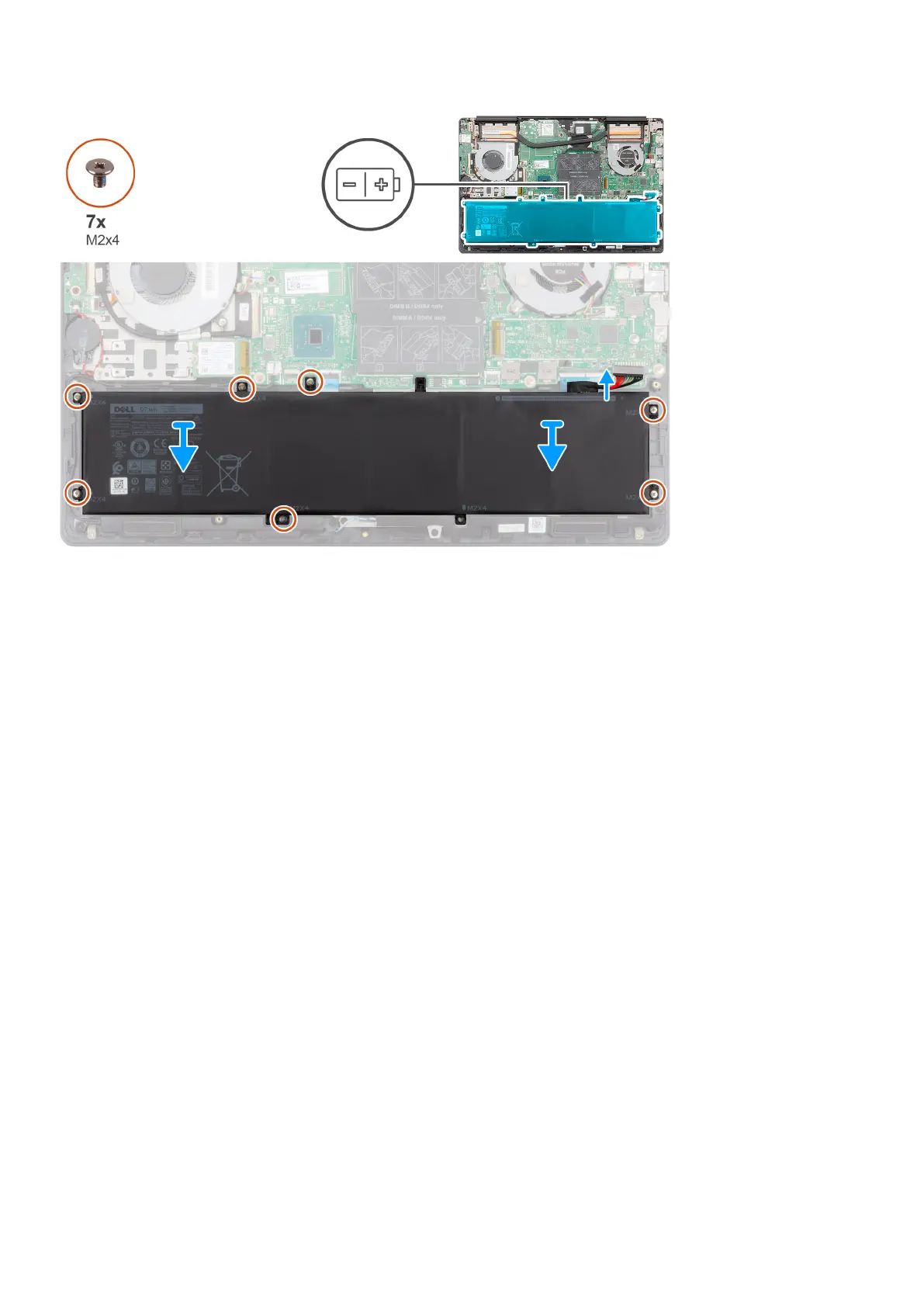

1. Place the battery on the palm-rest and keyboard assembly and align the screw holes on the battery with the screw holes on the palm-
rest and keyboard assembly.
2. Replace the seven screws (M2x4) to secure the battery to the system board and palm-rest and keyboard assembly.
3. Connect the battery cable to the system board.
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Memory modules
Removing the memory modules
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery cable.
The figure indicates the location of the memory module and provides a visual representation of the removal procedure.
16
Removing and installing components
