1. Remove the three screws (M2.5x5) that secure the left display hinge to the palm-rest and keyboard assembly.
2. Open the display hinges at an angle of 90 degrees.
3. Remove the screw (M2x4) that secures the power-adapter port to the palm-rest and keyboard assembly.
4. Disconnect the power-adapter port cable from the system board.
5. Lift the power-adapter port, along with its cable, off the palm-rest and keyboard assembly.
Installing the power-adapter port
If you are replacing a component, remove the existing component before performing the installation procedure.

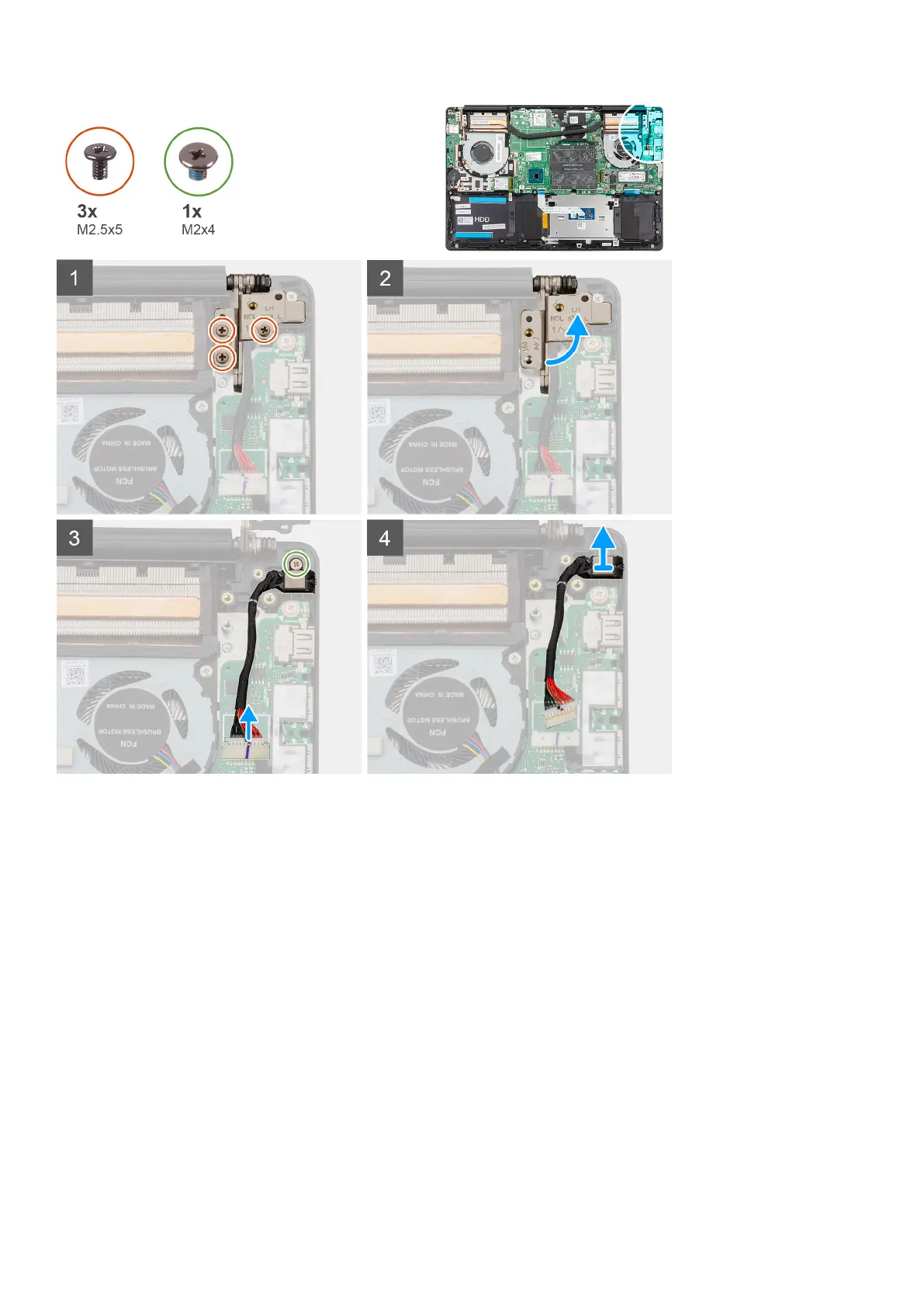

The figure indicates the location of the power-adapter port and provides a visual representation of the installation procedure.
