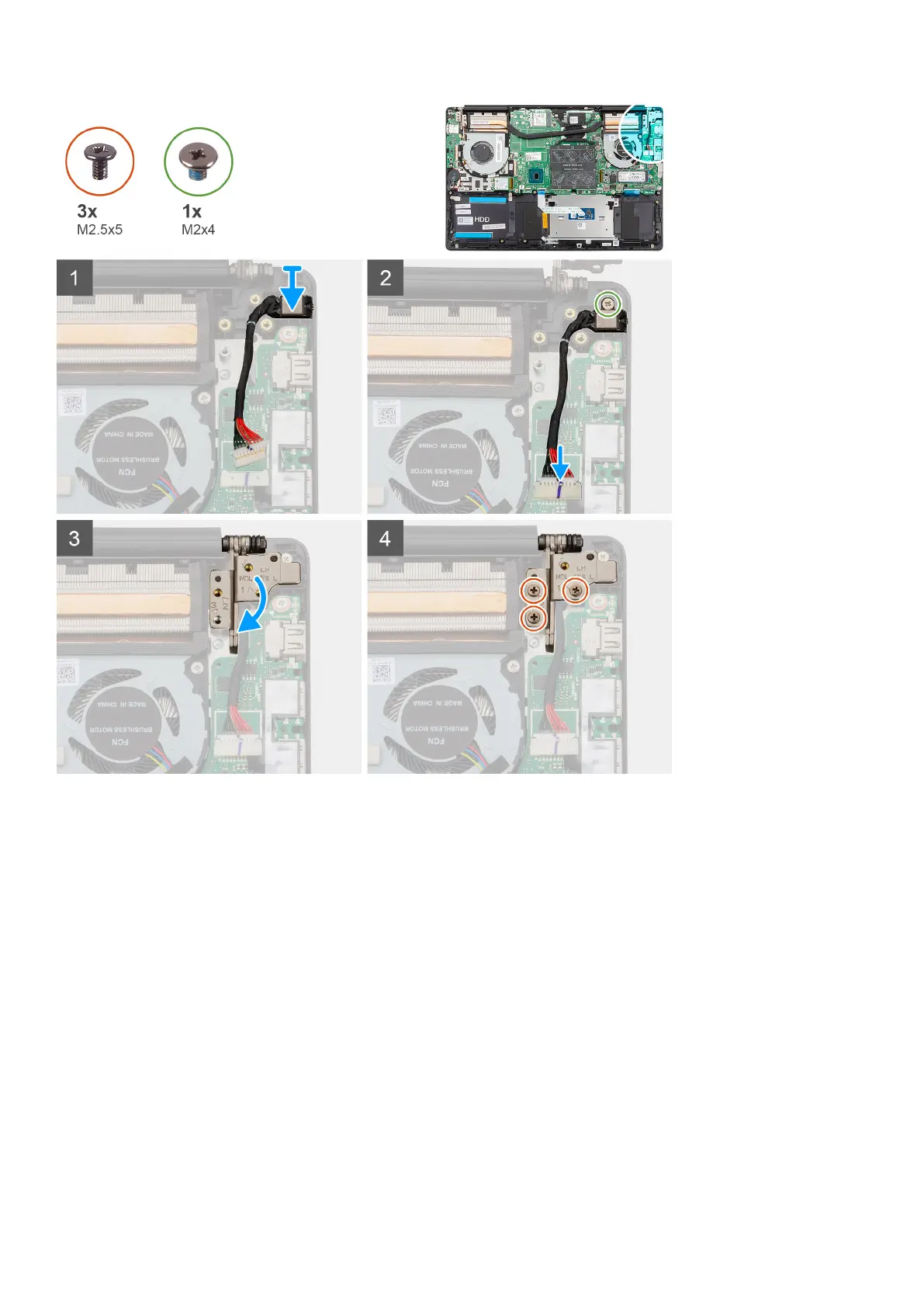

1. Connect the power-adapter port cable to the system board.
2. Replace the screw (M2x4) that secures the power-adapter port to the palm-rest and keyboard assembly.
3. Using the alignment posts, close the display hinges.
4. Replace the three screws (M2.5x5) that secure the left display hinge to the system board.
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Touchpad
Removing the touchpad
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the speakers.
The figure indicates the location of the touchpad and provides a visual representation of the removal procedure.
Removing and installing components
43
