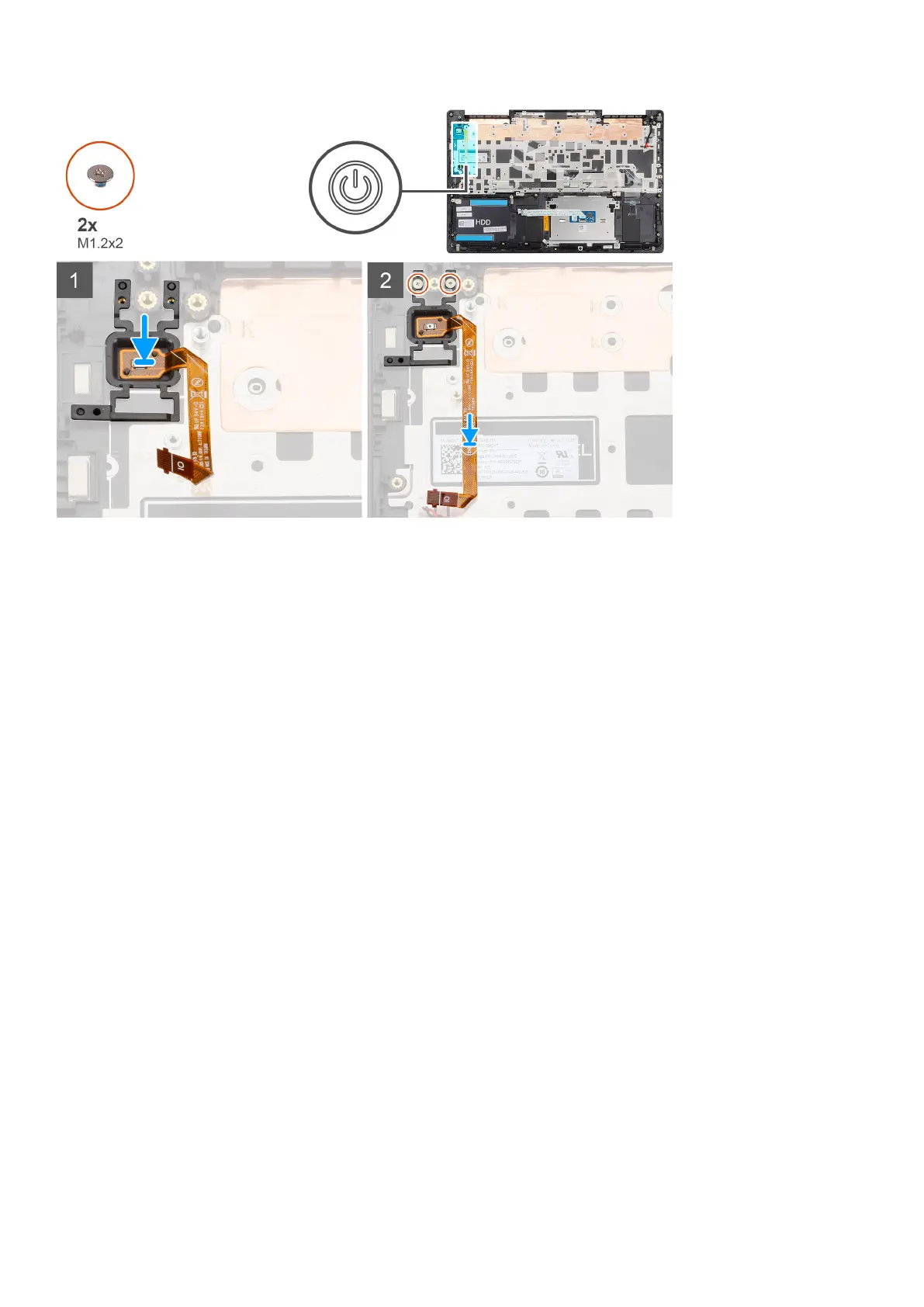

1. Using the alignment post, place the power button with optional fingerprint reader on the palm-rest and keyboard assembly.
2. Replace the two screws (M1.2x2) to secure the power button with optional fingerprint reader to the palm-rest and keyboard
assembly.
1. Install the I/O board.
2. Install the GPU fan.
3. Install the WLAN card.
4. Install the battery.
5. Install the base cover.
6. Follow the procedure in After working inside your computer.
Power-adapter port
Removing the power-adapter port
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
The figure indicates the location of the power-adapter port and provides a visual representation of the removal procedure.
Removing and installing components
41
