1. Remove the screw (M2x4) that secures the solid-state drive to the palm-rest and keyboard assembly.
2. Slide and remove the solid-state drive module from the solid-state drive slot on the system board.
Installing the M.2 2230 solid-state drive
If you are replacing a component, remove the existing component before performing the installation procedure.

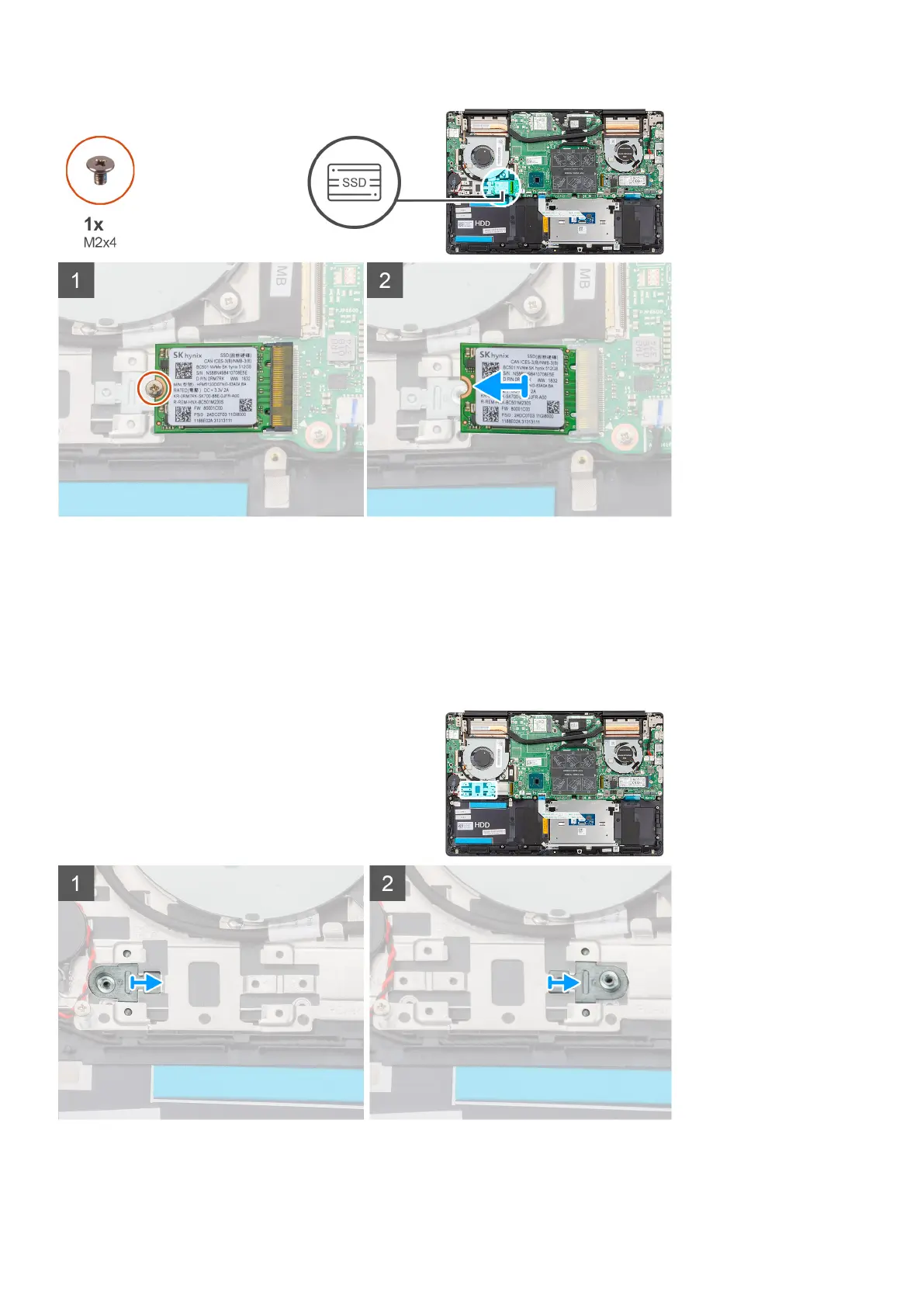

The figure indicates the location of the solid-state drive bracket and provides a visual representation of the bracket alignment procedure
to accommodate the M.2 2230 solid-state drive.
The figure indicates the location of the M.2 2230 solid-state drive and provides a visual representation of the installation procedure:
