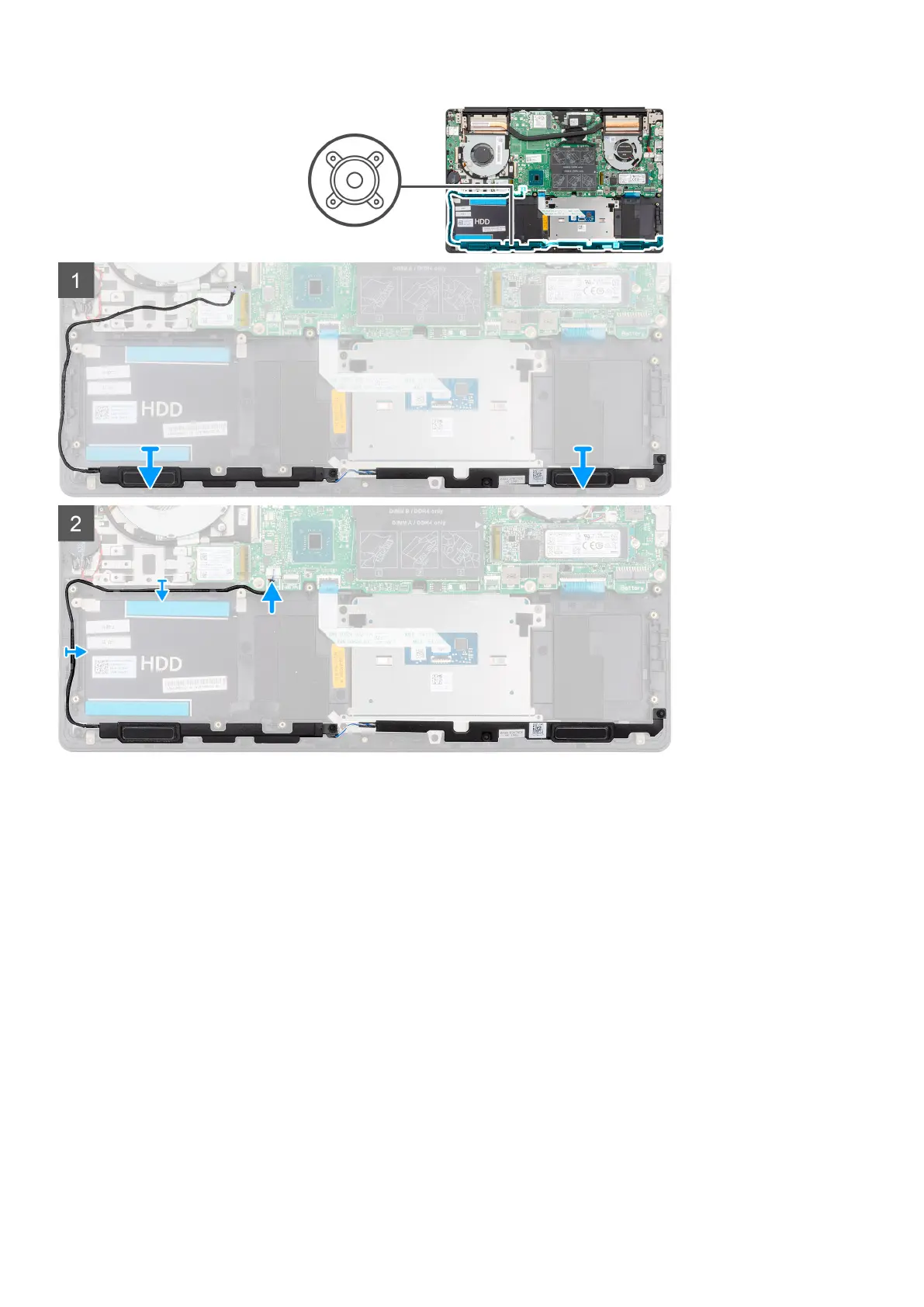

1. Using the alignment posts and rubber grommets, place the speakers in the slots on the palm-rest and keyboard assembly.
2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.
3. Connect the speaker cable to the system board.
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Graphics Processing Unit (GPU) fan
Removing the GPU fan
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
The figure indicates the location of the GPU fan and provides a visual representation of the removal procedure.
Removing and installing components
29
