1010 Configuring RIP

RIP Interface Configuration

Use the Interface Configuration

page to enable and configure or to disable

RIP on a specific interface.

To display the page, click Routing

→

RIP

→

Interface Configuration in the

navigation panel.

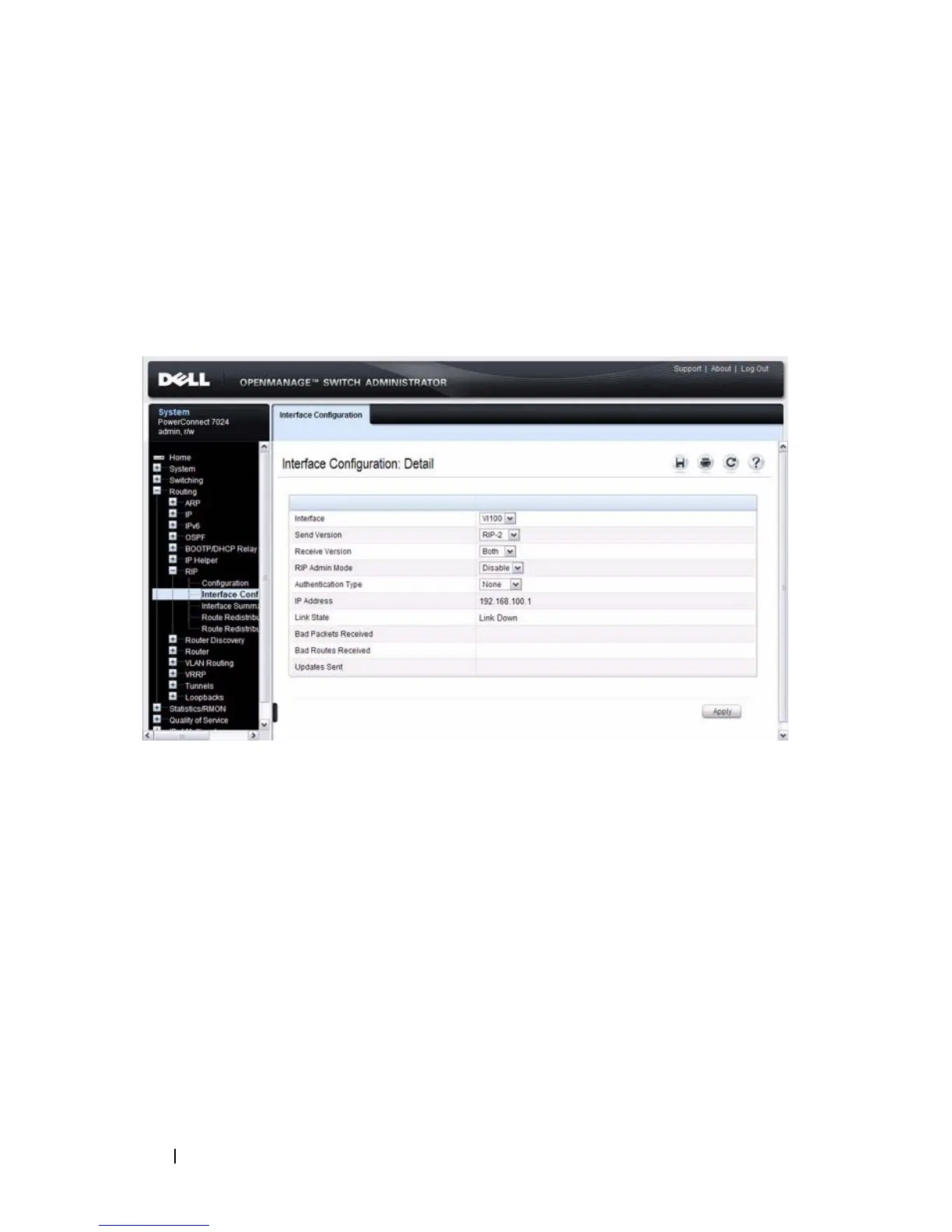

Figure 35-2. RIP Interface Configuration
