Monitoring Switch Traffic 419
Port Mirroring
Use the Port Mirroring page to create a mirroring session in which all traffic
that is sent or received (or both) on one or more source ports is mirrored to a
destination port.
To display the Port Mirroring page, click Switching
→
Ports
→
Traffic
Mirroring
→
Port Mirroring in the navigation panel.

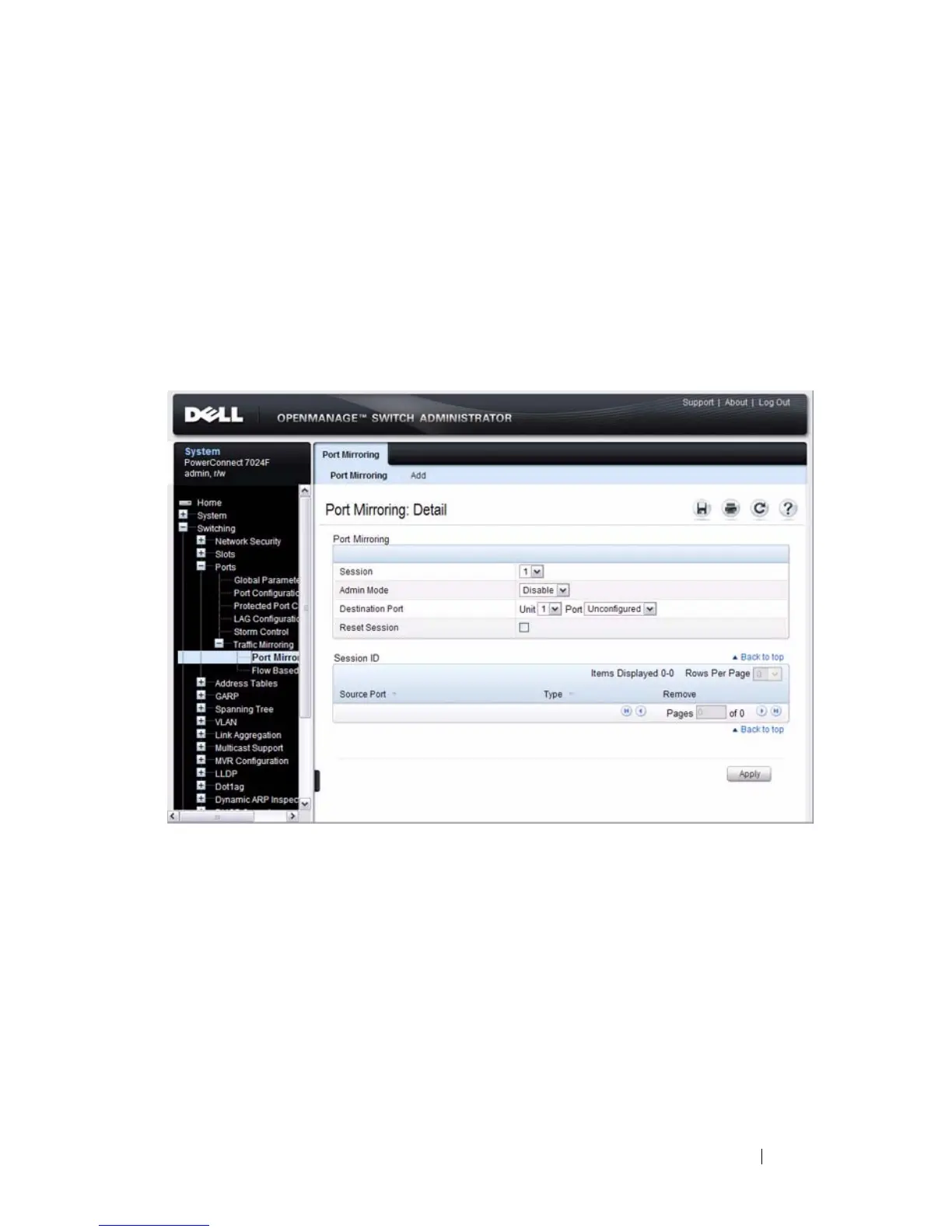

Figure 15-24. Port Mirroring
Configuring a Port Mirror Session
To configure port mirroring:
1
Open the
Port Mirroring
page.
2
Click
Add
.
The
Add Source Port
page displays.
3
Select the port to be mirrored.
4
Select the traffic to be mirrored.
