Dell PowerConnect 7048P User Manual

Configuring L2 Multicast Features 727
1 From the General MLD snooping page, click Show All .
The
MLD Snooping Table displays.
2 Select the Copy Parameters From checkbox.
3 Select a Unit/Port, LAG, or VLAN to use as the source of the desired
parameters.
4 Select the Copy To checkbox for the Unit/Ports, LAGs, or VLANs that
these parameters will be copied to.
5 Click Apply .
The MLD Snooping settings are modified, and the device is updated.
MLD Snooping Global Querier Configuration
Use the MLD Snooping Global Querier Configuration page to configure the
parameters for the MLD Snooping Querier.
To display the Global Querier Configuration page, click Switching
→
Multicast Support
→ MLD Snooping → Global Querier Configuration in
the navigation menu.

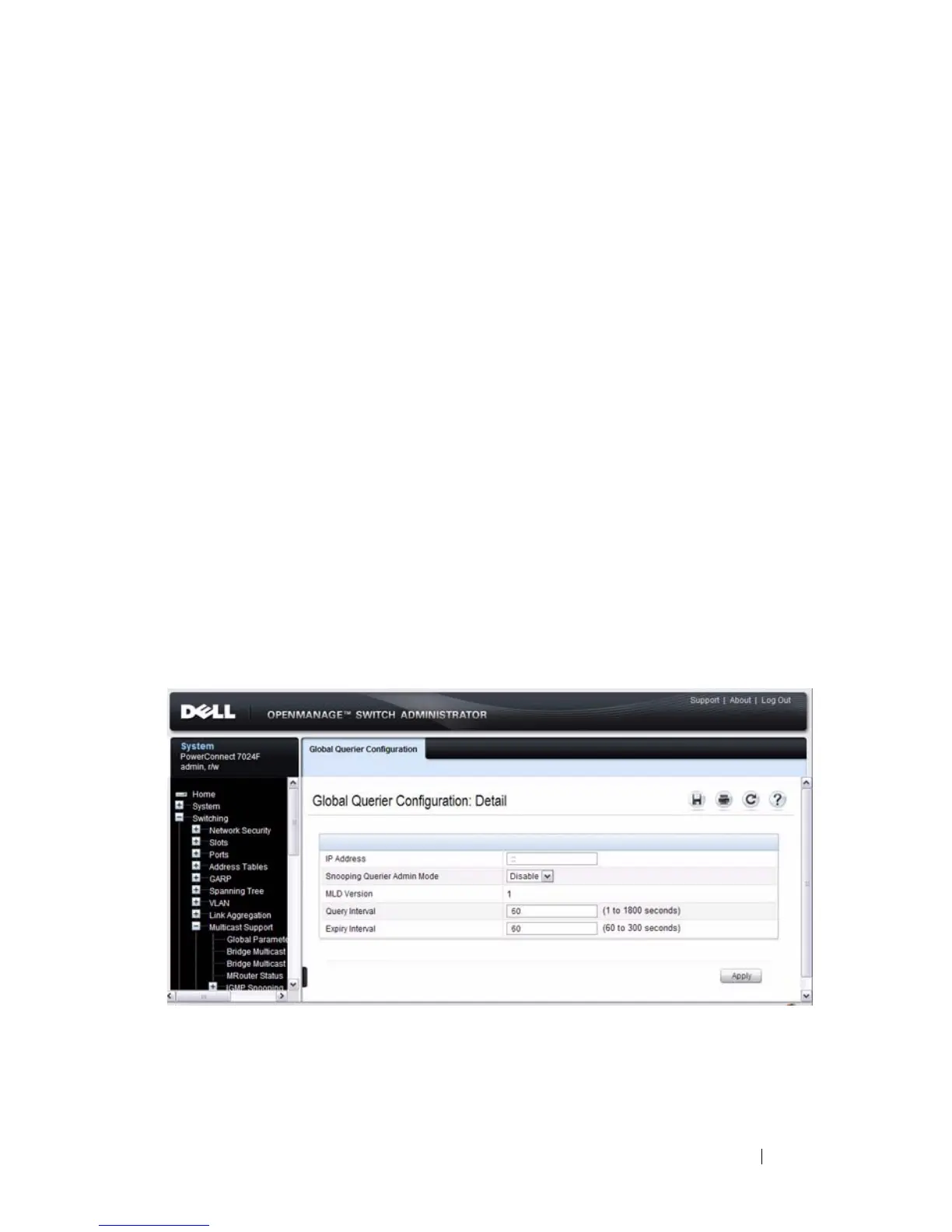

Figure 25-17. MLD Snooping Global Querier Configuration

Dell PowerConnect 7048P Specifications

General

Brand	Dell
Model	PowerConnect 7048P
Category	Switch
Language	English
