724 Configuring L2 Multicast Features

MFDB IGMP Snooping Table

Use the MFDB IGMP Snooping Table page to view the multicast forwarding

database (MFDB) IGMP Snooping Table and Forbidden Ports settings for

individual VLANs.

To display the MFDB IGMP Snooping Table page, click Switching

→

Multicast Support

→

IGMP Snooping

→

MFDB IGMP Snooping Table in

the navigation menu.

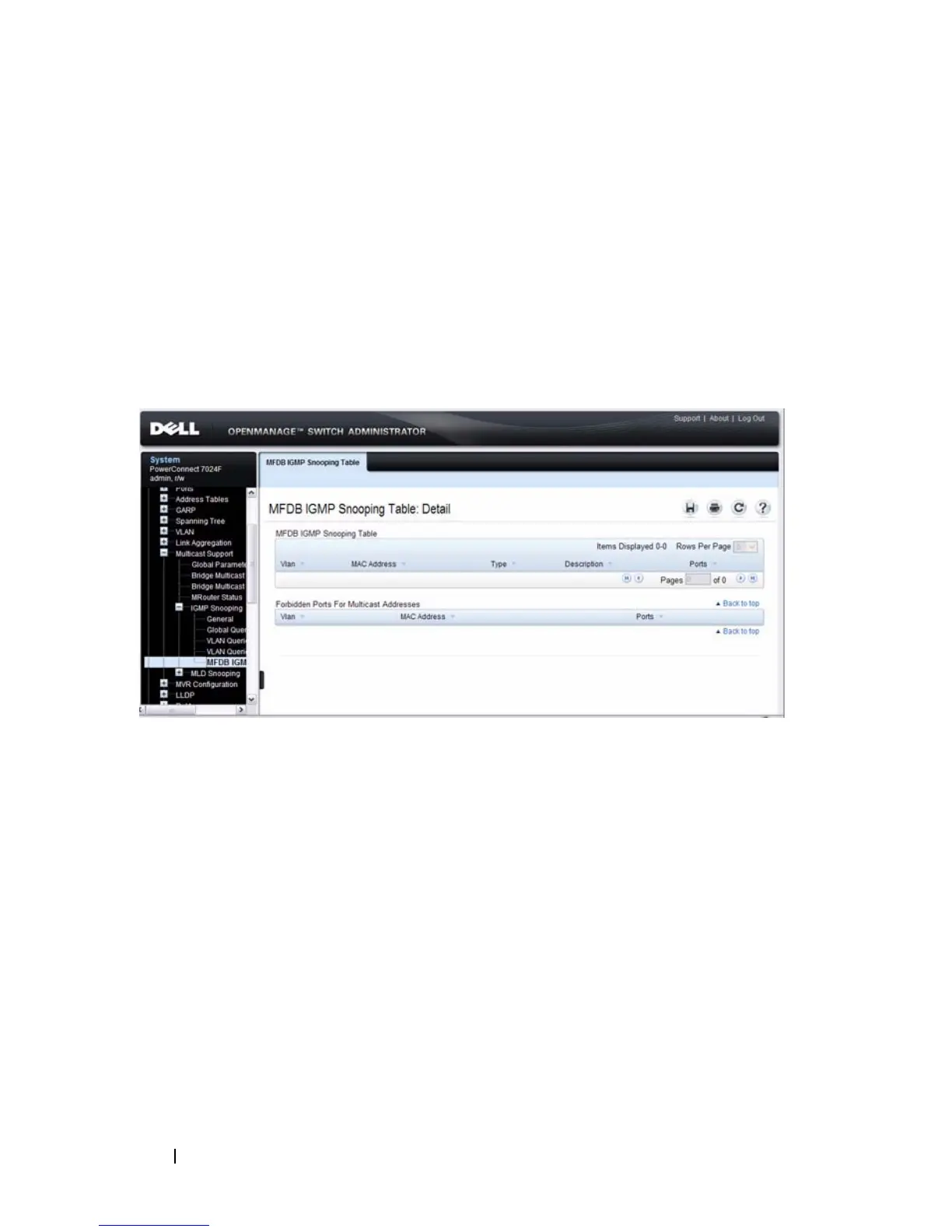

Figure 25-14. MFDB IGMP Snooping Table
