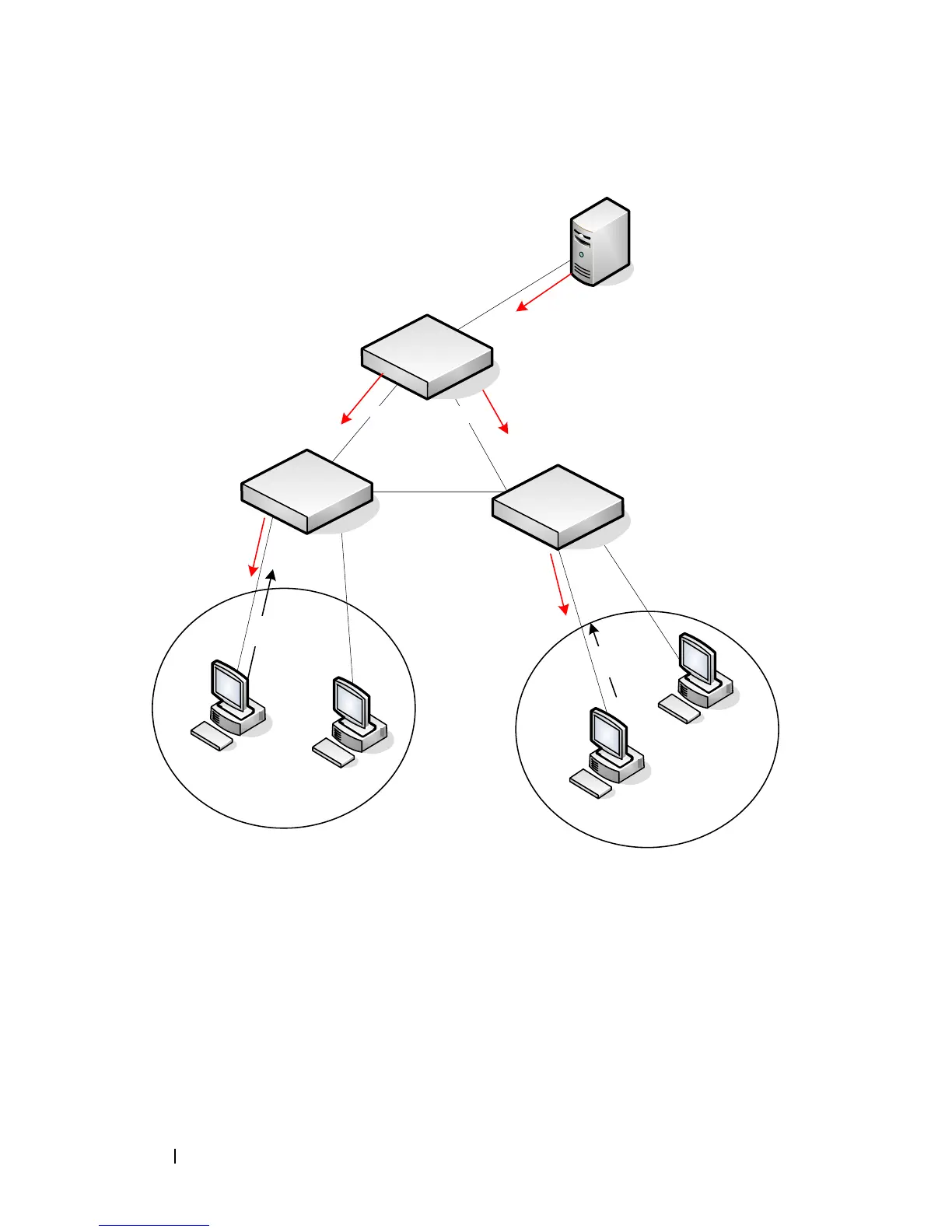

Figure 42-47. IPv4 Multicast VLAN Routing
In addition to multicast configuration, this example includes commands to
configure STP and OSPF on L3 Switch A. STP is configured on the ports that
connects the switch to other switches. OSPF is configured to route unicast
traffic between the VLANs.
To configure the switch:
1
Create the two VLANs.
console#configure
console(config)#vlan database
Port 23 Port 24
L3 Switch A
(PIM RP)
`
`
`
`
Video Server
VLAN 10
Members
VLAN 20
Members
IGMP
Join
L3 Switch B
L3 Switch C
IGMP
Join
To Next Page
