Dell PowerConnect 7048P - Page 736

736 Configuring L2 Multicast Features

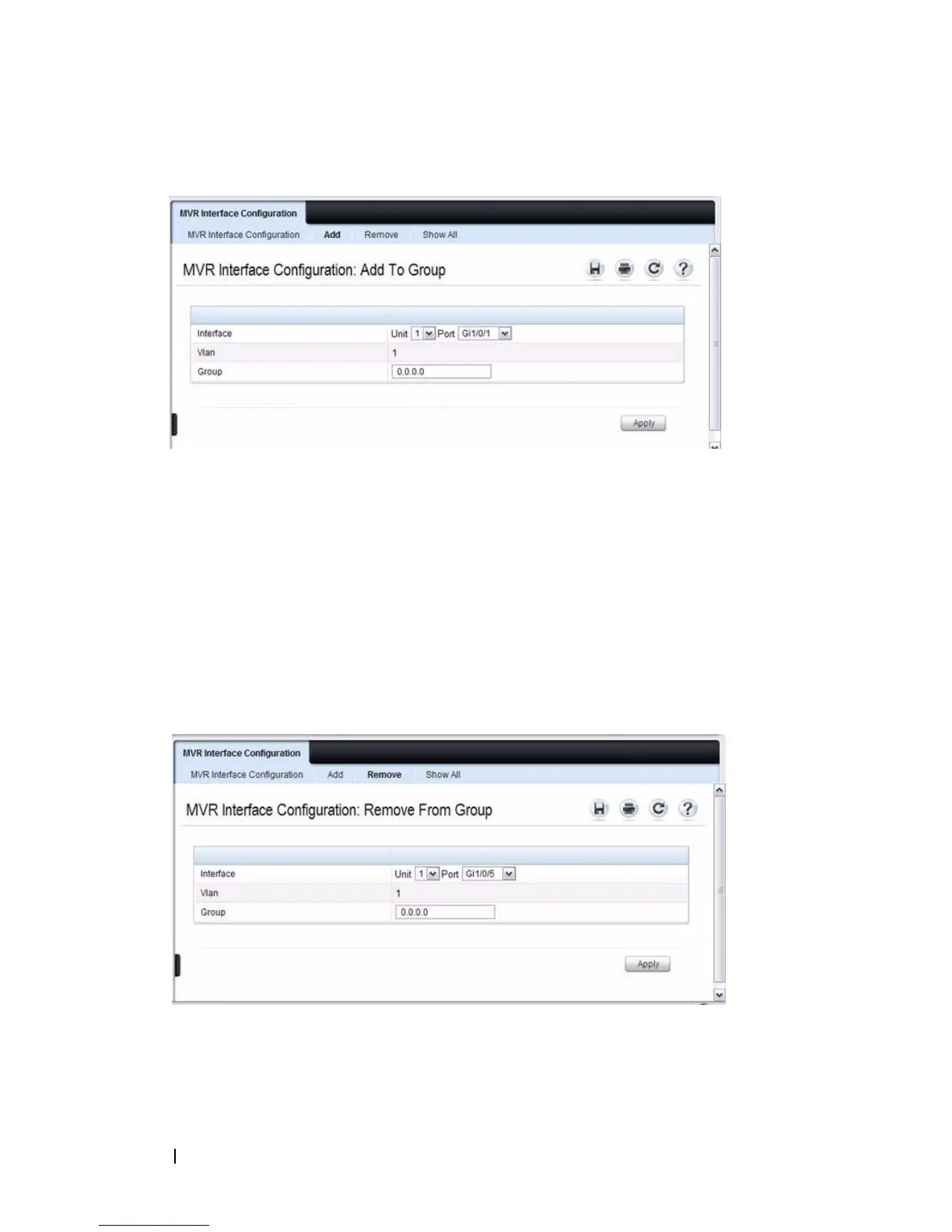

Figure 25-28. MVR - Add to Group
2 Select the interface to add to the MVR group.
3 Specify the MVR group IP multicast address.
4 Click Apply .
Removing an Interface from an MVR Group
To remove an interface from an MVR group:
1
From the MVR Interface page, click Remove .
Figure 25-29. MVR - Remove from Group
2 Select the interface to remove from an MVR group.
3 Specify the IP multicast address of the MVR group.
4 Click Apply .
