Dell PowerEdge R630 User Manual

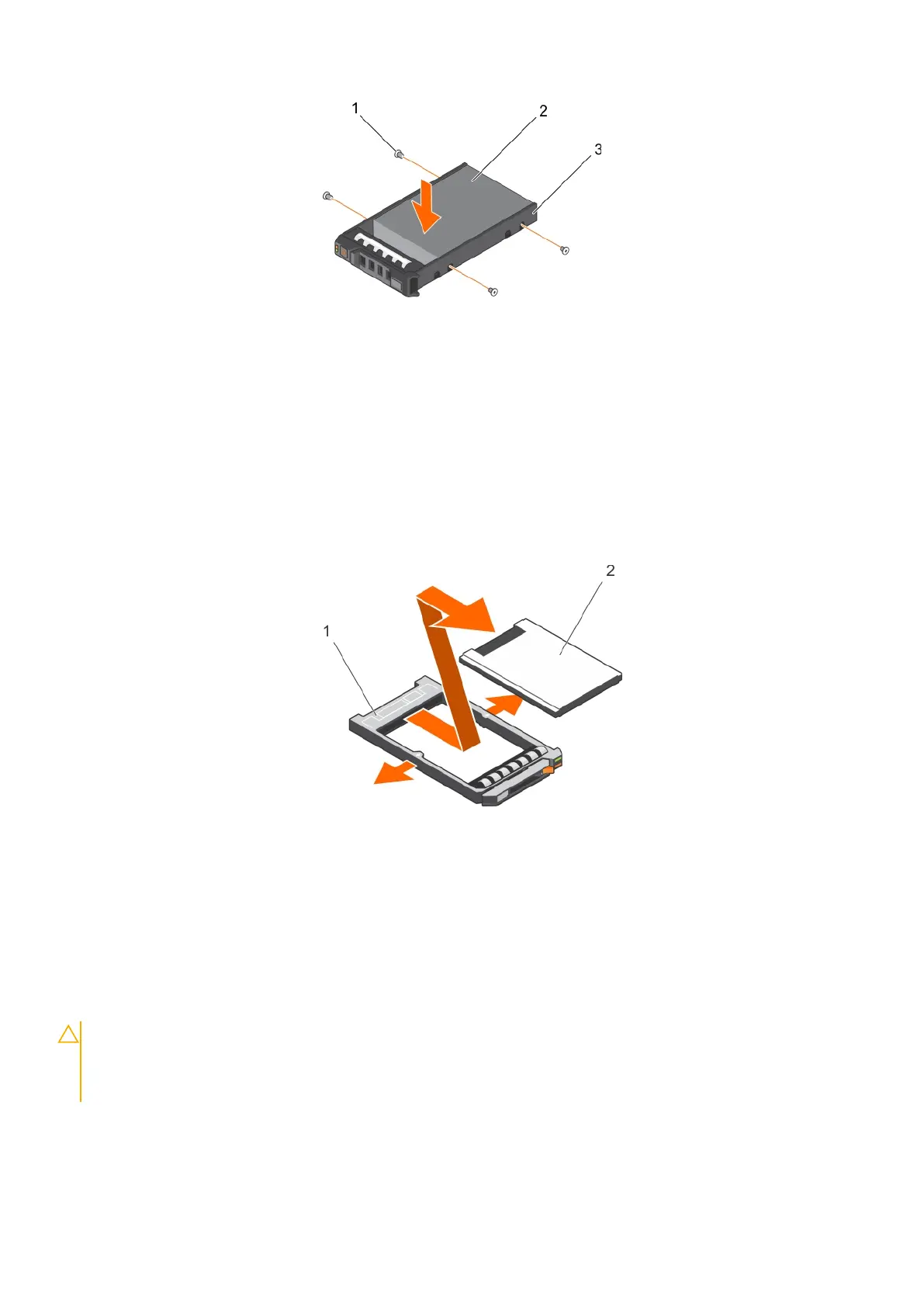

Figure 37. Installing a hot swappable hard drive into a hot swappable hard drive carrier
1. screw (4)
2. hard drive
3. hard drive carrier
Removing a 1.8-inch hard drive from a hard drive carrier
1. Follow the safety guidelines listed in the Safety instructions section.
2. Remove the hard drive carrier from the system.
1. Turn the hard drive carrier.
2. Pull the rails of the hard drive carrier and lift the hard drive out of the hard drive carrier.
Figure 38. Removing a 1.8-inch hard drive into a hard drive carrier
a. hard drive carrier
b. hard drive
Related references
Safety instructions
Installing a 1.8-inch hard drive into a hard drive carrier
CAUTION:
Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by
your warranty. Read and follow the safety instructions that are shipped with your product.
Insert the hard drive into the hard drive carrier with the connector end of the hard drive toward the back.
When aligned correctly, the back of the hard drive is flush with the back of the hard drive carrier.
Installing and removing system components
89

Dell PowerEdge R630 Specifications

General

Display	LCD
Built-in display	Yes
Dell E-Value Code	PER630_EL0001A_Q1FY18_FG0003_BTP
HDD speed	10000 RPM
RAID levels	0, 1, 5, 6, 10, 50, 60
HDD interface	Serial Attached SCSI (SAS)
Optical drive type	DVD±RW
Supported HDD sizes	2.5 \
Total storage capacity	300 GB
Maximum storage capacity	14 TB
Number of HDDs installed	1
Number of HDDs supported	8
Supported storage drive interfaces	SAS, Serial ATA III
Tcase	74 °C
Bus type	QPI
Stepping	R0
Scalability	2S
Processor code	SR2R6
Processor cache	20 MB
Processor model	E5-2620V4
System bus rate	8 GT/s
Processor series	Intel Xeon E5-2600 v4
Processor socket	LGA 2011-v3
Processor threads	16
Processor codename	Broadwell
Motherboard chipset	Intel C610
Processor frequency	2.1 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	45 x 52.5 mm
Processor boost frequency	3 GHz
Processor operating modes	64-bit
Supported instruction sets	AVX 2.0
Thermal Design Power (TDP)	85 W
Compatible processor series	Intel® Xeon®
Supported processor sockets	LGA 2011-v3 (Socket R)
Maximum number of SMP processors	2
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR4-SDRAM
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	1600, 1866, 2133 MHz
Memory bandwidth supported by processor (max)	68.3 GB/s
Maximum internal memory supported by processor	1536 GB
Operating system installed	-
Compatible operating systems	Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware ESX Microsoft Windows Server 2012 with Hyper-V VMware vSphere ESXi Citrix XenServer
Performance management	IPMI 2.0, Dell OpenManage
Memory slots	24x DIMM
Internal memory	16 GB
Memory clock speed	2400 MHz
Maximum internal memory	786 GB
Memory layout (slots x size)	1 x 16 GB
Power supply	750 W
Power supply input frequency	50 - 60 Hz
Chassis type	Rack (1U)
LAN controller	Broadcom 5720
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
PCI Express slots version	3.0
Sustainability certificates	ENERGY STAR
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Processor ARK ID	92986
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Intel® Identity Protection Technology (Intel® IPT)	No

Weight and Dimensions

Depth	701.3 mm
Width	482.4 mm
Height	42.8 mm
Weight	16900 g
