Dell PowerEdge R630 User Manual

Installing a heat sink
CAUTION: Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by
your warranty. Read and follow the safety instructions that are shipped with your product.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
3. Remove the cooling shroud.
4. Install the processor.
5. Keep the Phillips #2 screwdriver ready.
1. If you are using an existing heat sink, remove the thermal grease from the heat sink by using a clean lint-free cloth.
2. Use the thermal grease syringe included with your processor kit to apply the grease in a thin spiral on the top of the
processor.
CAUTION: Applying too much thermal grease can result in excess grease coming in contact with and
contaminating the processor socket.
NOTE: The thermal grease syringe is intended for one-time use only. Dispose of the syringe after you use it.

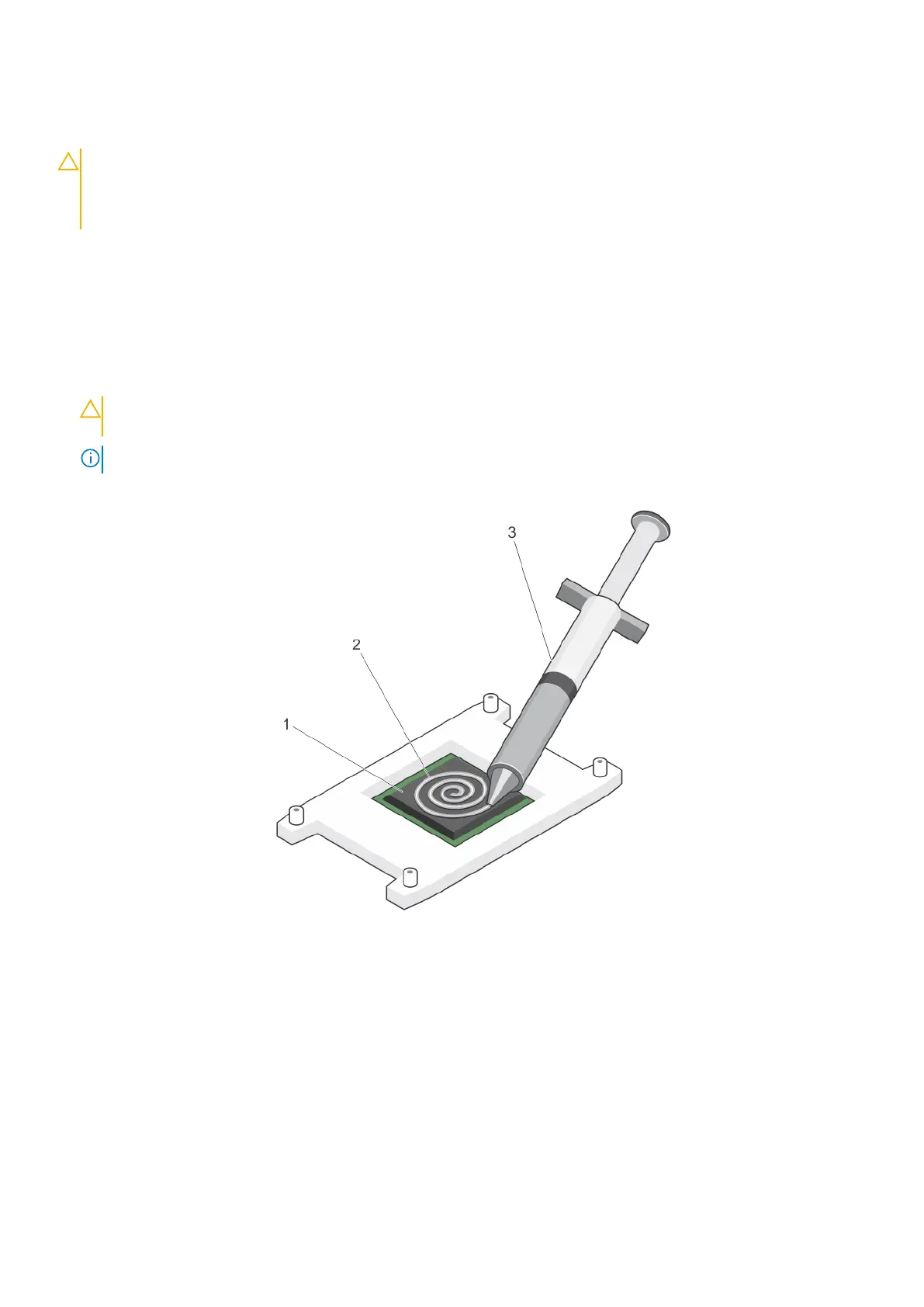

Figure 64. Applying thermal grease on the top of the processor
a. processor
b. thermal grease
c. thermal grease syringe
3. Place the heat sink onto the processor.
4. Tighten one of the four screws to secure the heat sink to the system board.
5. Repeat the procedure for the remaining two screws.
118
Installing and removing system components

Dell PowerEdge R630 Specifications

General

Display	LCD
Built-in display	Yes
Dell E-Value Code	PER630_EL0001A_Q1FY18_FG0003_BTP
HDD speed	10000 RPM
RAID levels	0, 1, 5, 6, 10, 50, 60
HDD interface	Serial Attached SCSI (SAS)
Optical drive type	DVD±RW
Supported HDD sizes	2.5 \
Total storage capacity	300 GB
Maximum storage capacity	14 TB
Number of HDDs installed	1
Number of HDDs supported	8
Supported storage drive interfaces	SAS, Serial ATA III
Tcase	74 °C
Bus type	QPI
Stepping	R0
Scalability	2S
Processor code	SR2R6
Processor cache	20 MB
Processor model	E5-2620V4
System bus rate	8 GT/s
Processor series	Intel Xeon E5-2600 v4
Processor socket	LGA 2011-v3
Processor threads	16
Processor codename	Broadwell
Motherboard chipset	Intel C610
Processor frequency	2.1 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	45 x 52.5 mm
Processor boost frequency	3 GHz
Processor operating modes	64-bit
Supported instruction sets	AVX 2.0
Thermal Design Power (TDP)	85 W
Compatible processor series	Intel® Xeon®
Supported processor sockets	LGA 2011-v3 (Socket R)
Maximum number of SMP processors	2
Maximum number of PCI Express lanes	40
Memory types supported by processor	DDR4-SDRAM
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	1600, 1866, 2133 MHz
Memory bandwidth supported by processor (max)	68.3 GB/s
Maximum internal memory supported by processor	1536 GB
Operating system installed	-
Compatible operating systems	Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware ESX Microsoft Windows Server 2012 with Hyper-V VMware vSphere ESXi Citrix XenServer
Performance management	IPMI 2.0, Dell OpenManage
Memory slots	24x DIMM
Internal memory	16 GB
Memory clock speed	2400 MHz
Maximum internal memory	786 GB
Memory layout (slots x size)	1 x 16 GB
Power supply	750 W
Power supply input frequency	50 - 60 Hz
Chassis type	Rack (1U)
LAN controller	Broadcom 5720
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
PCI Express slots version	3.0
Sustainability certificates	ENERGY STAR
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 80 %
Processor ARK ID	92986
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Intel® Identity Protection Technology (Intel® IPT)	No

Weight and Dimensions

Depth	701.3 mm
Width	482.4 mm
Height	42.8 mm
Weight	16900 g
