Next steps
Install the BOSS-N1 shroud
Installing the BOSS-N1 shroud
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
Steps
Align the BOSS-N1 shroud with the BOSS-N1 module bay, lower the shroud into the system and slide to the back of the system
until it is firmly seated.

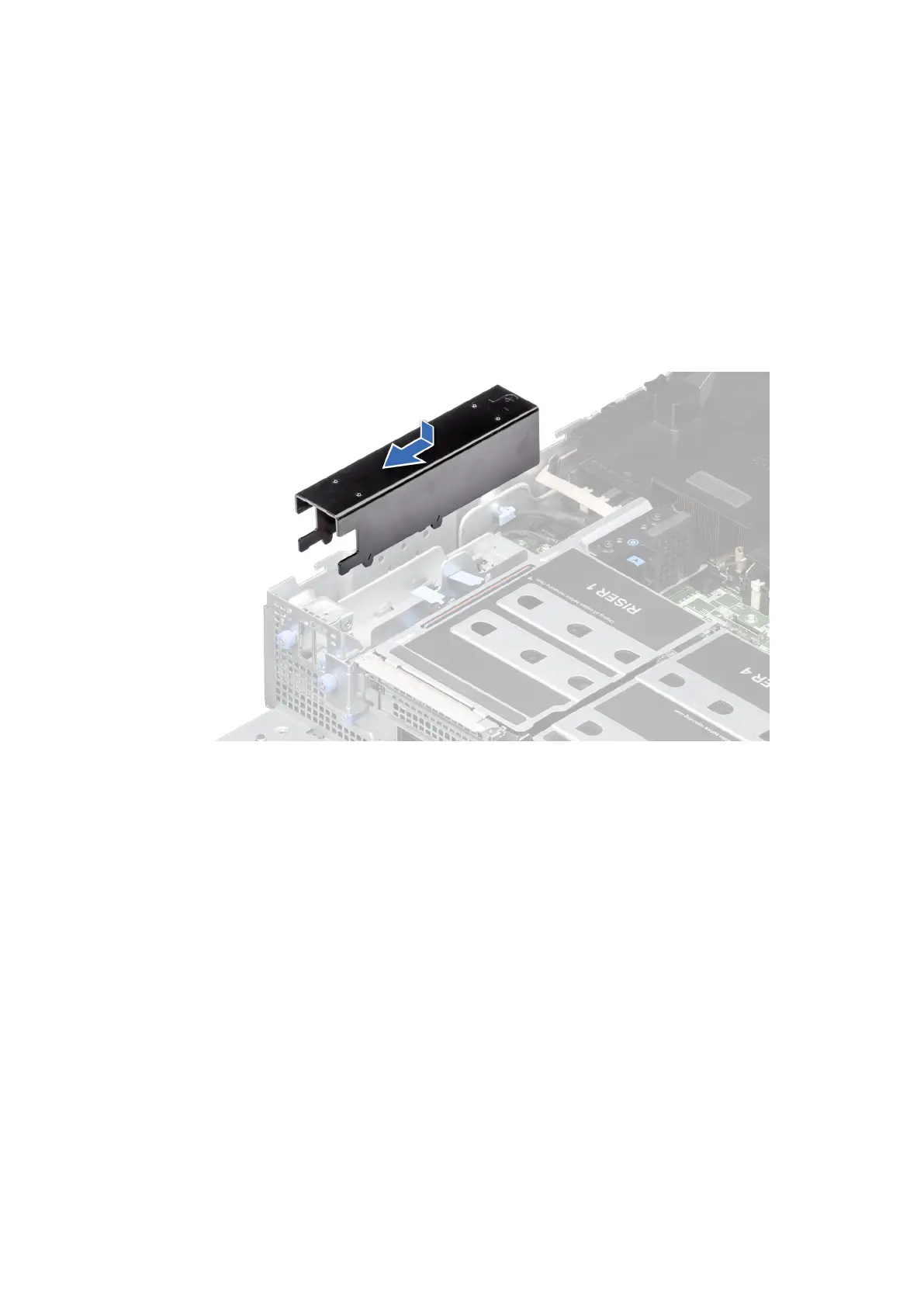

Figure 86. Installing the BOSS-N1 shroud
Next steps
Follow the procedure listed in After working inside your system
Removing the BOSS-N1 card carrier, M.2 SSD module and BOSS-
N1 card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shroud.
Steps
1. Pull and lift the BOSS-N1 card carrier retention latch lock to open.
2. Slide the BOSS-N1 card carrier out.
