Installing the front bezel
The procedure to install the front bezel with and without the LCD panel is the same.
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Locate and remove the bezel key.
NOTE: The bezel key is part of the LCD bezel package.
Steps
1. Align and insert the tabs on the bezel into the slots on the system, press the bezel until the release button clicks in place.
2. Lock the bezel.

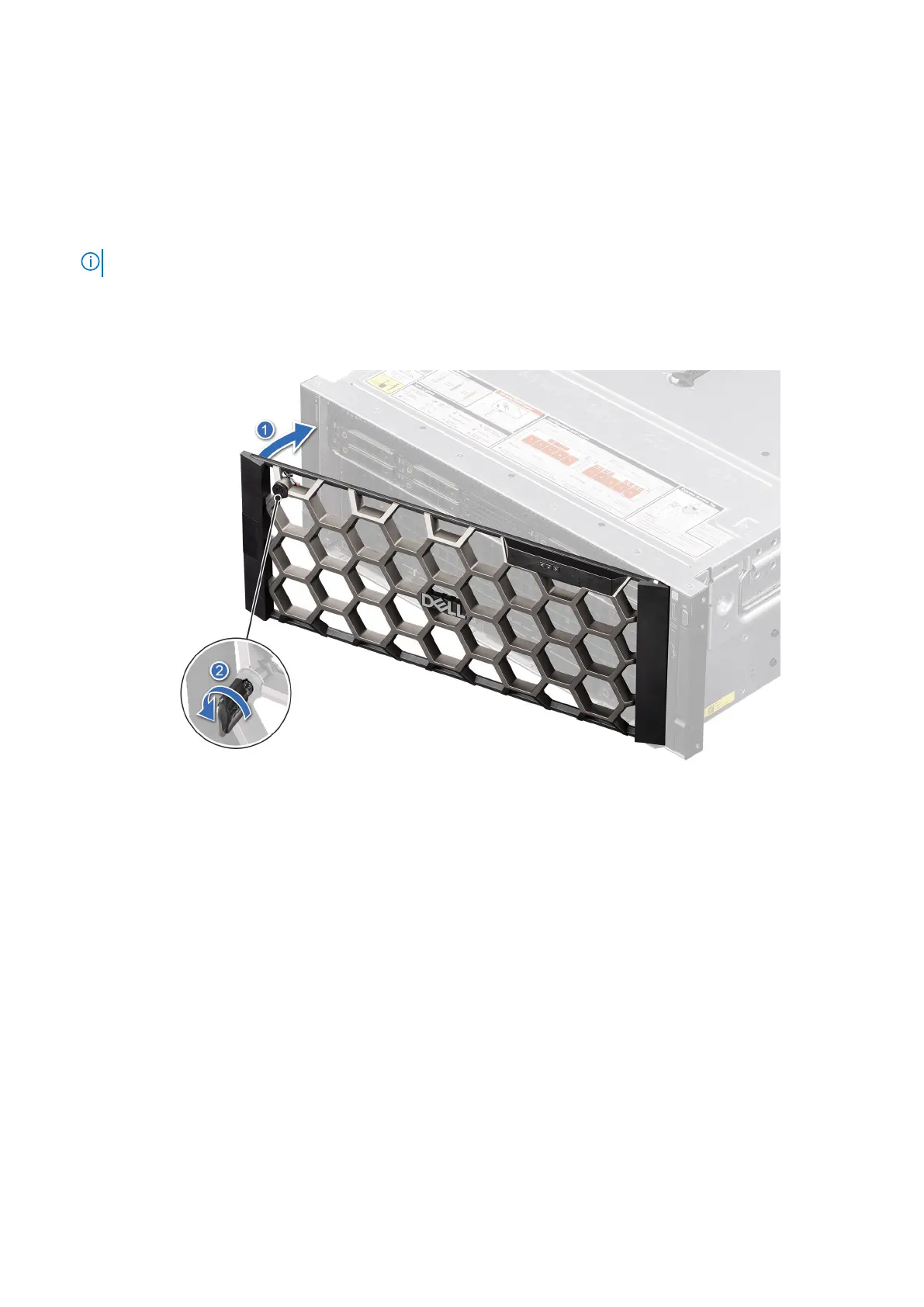

Figure 16. Installing the front bezel with the LCD panel
GPU fan
Removing the GPU fan
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. If installed, remove the front bezel.
Steps
Press the release button on the GPU fan and slide the GPU fan out of the system.
60
Installing and removing system components
