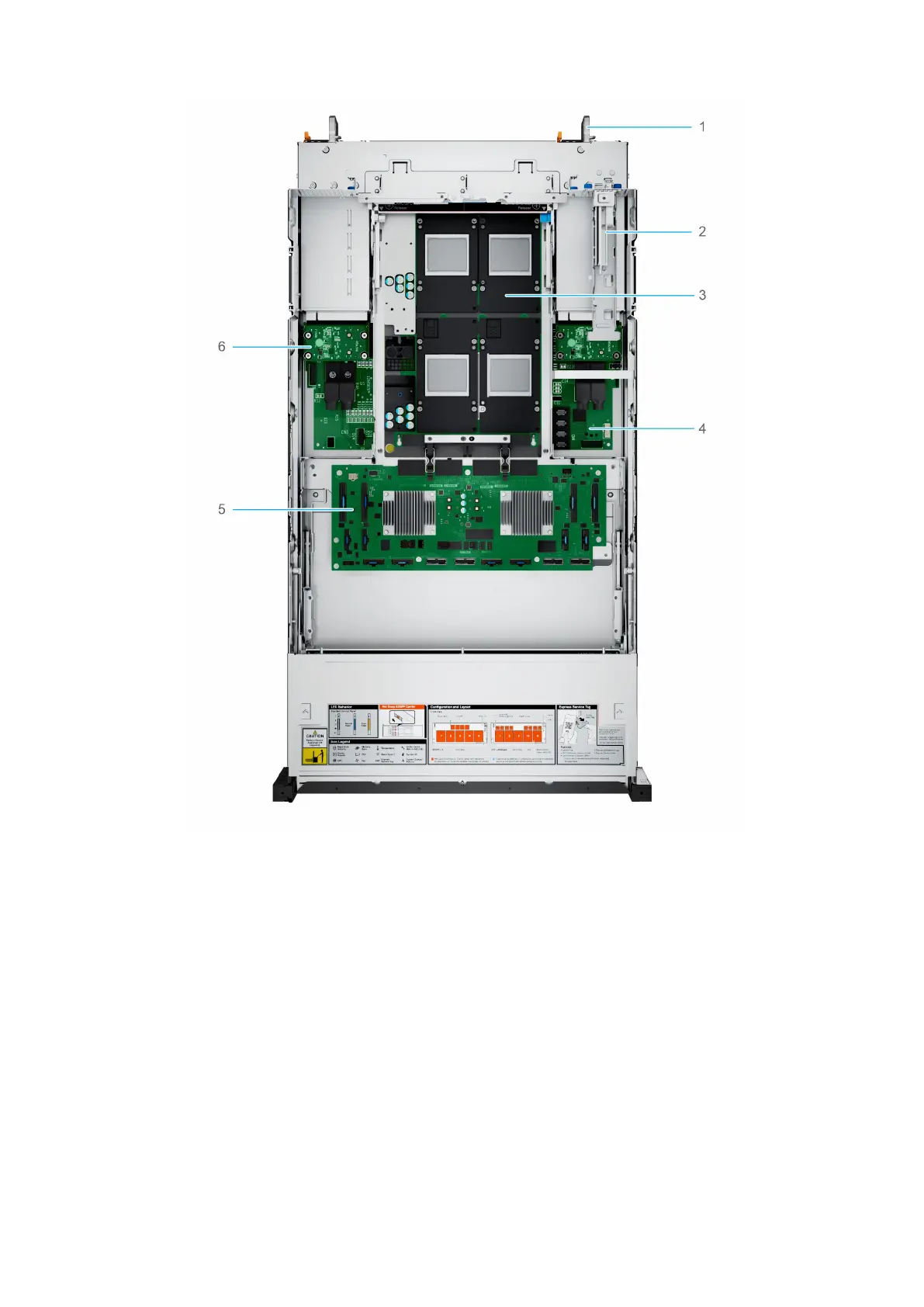

Figure 6. GPU H100 Inside view
1.
Power supply 1 2. BOSS-N1 cage
3. GPU 4. Power Distribution Board (PDB)
5. PCIe Switch Board (PSB) 6. VSB
Dell PowerEdge XE8640 system overview 15
