Steps
1. Pull the blue lever on the sled to release the sled handle.
2. Holding the sled handle, slide the sled out of the enclosure.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
CAUTION: Support the system with both hands while sliding it out of the enclosure.

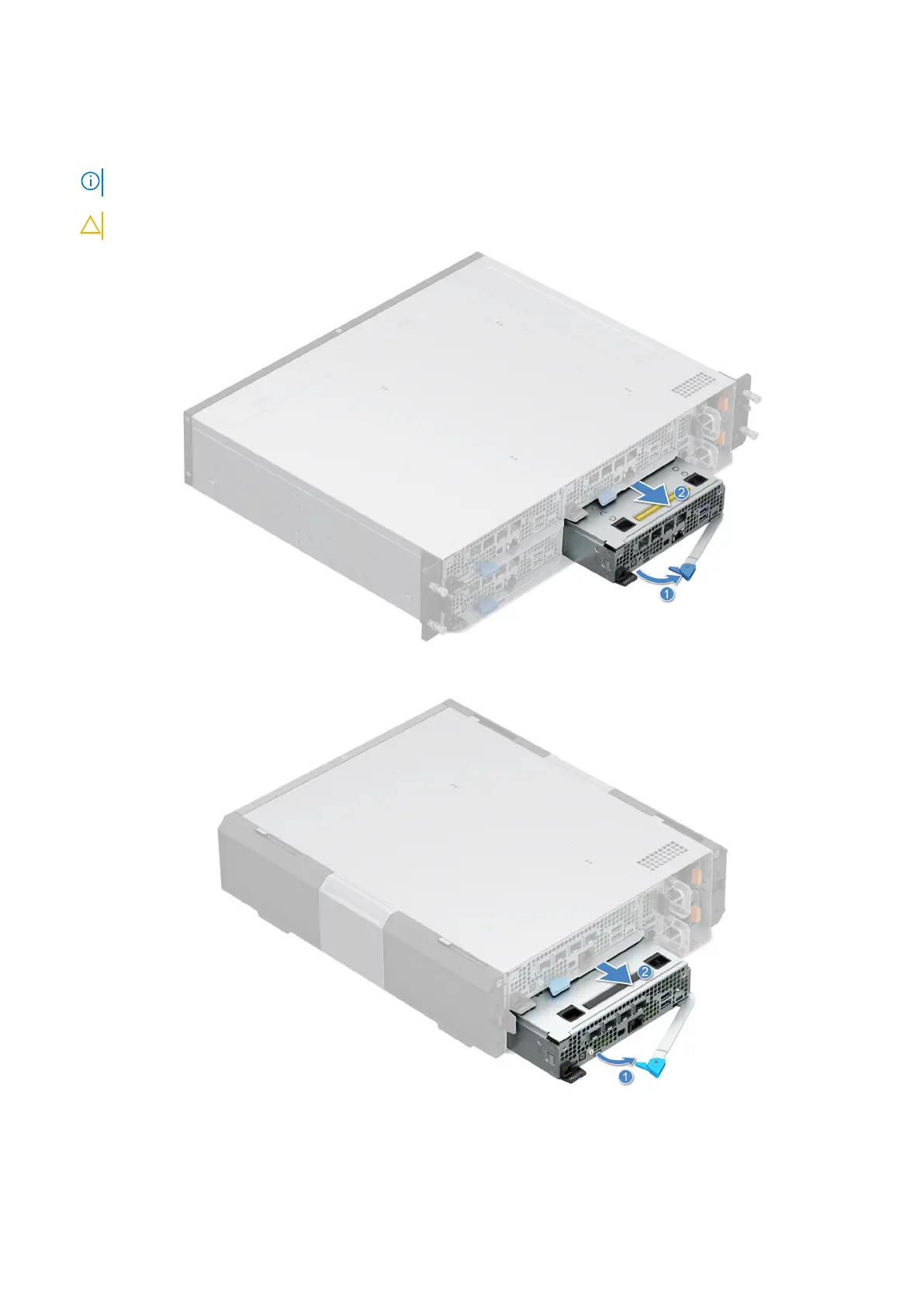

Figure 13. Removing the sled from XR4000r
Figure 14. Removing the sled from XR4000z
Installing and removing system components
51
