Installing the sled
Installing the sled
Prerequisites
Follow the safety guidelines listed in Safety instructions.
Steps
1. Pull the blue lever on the sled to free the sled handle.
2. Holding the sled with both hands, align the sled along the sled-bay in to the enclosure.
3. Slide the sled into the enclosure, ensure the sled handle is in lock position.
4. Push the sled handle inwards so that it locks into place and secures the sled in the enclosure.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.

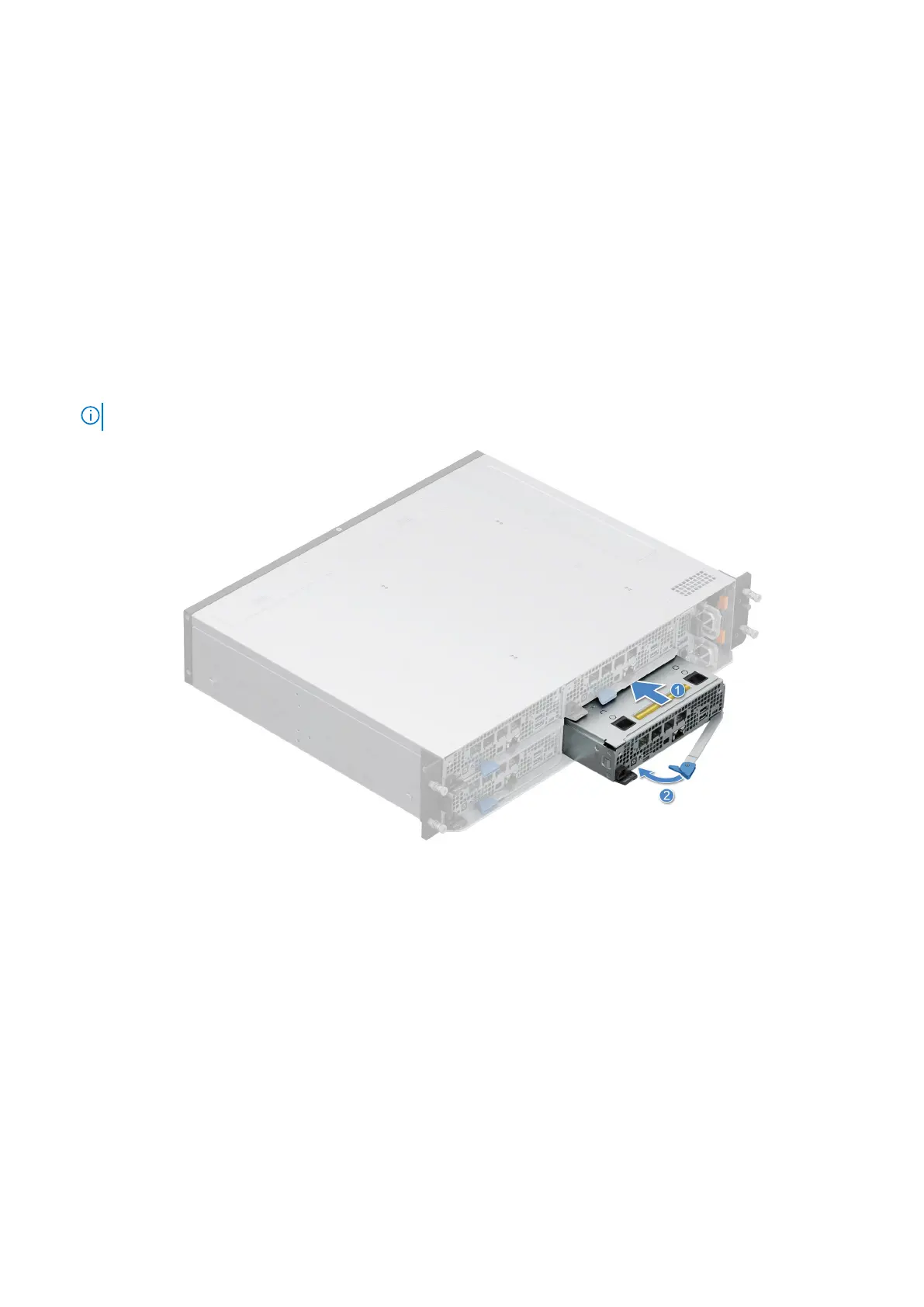

Figure 15. Installing the sled into XR4000r
52
Installing and removing system components
