Figure 17. Removing the sled cover
Next steps
Follow the procedure listed in Replace the sled cover.
Installing the sled cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Ensure that all internal cables are connected and routed properly, and no tools or extra parts are left inside the system.
Steps
1. Align the tabs on the system cover with the guide slots on the system, as both sides of the top cover have the slots to hook
the T-nut on the 1U-Sled.
2. Slide the cover towards the rear of the system where the slot and T-nut engage well. Slide the cover towards the rear of the
system until it locks in to place.

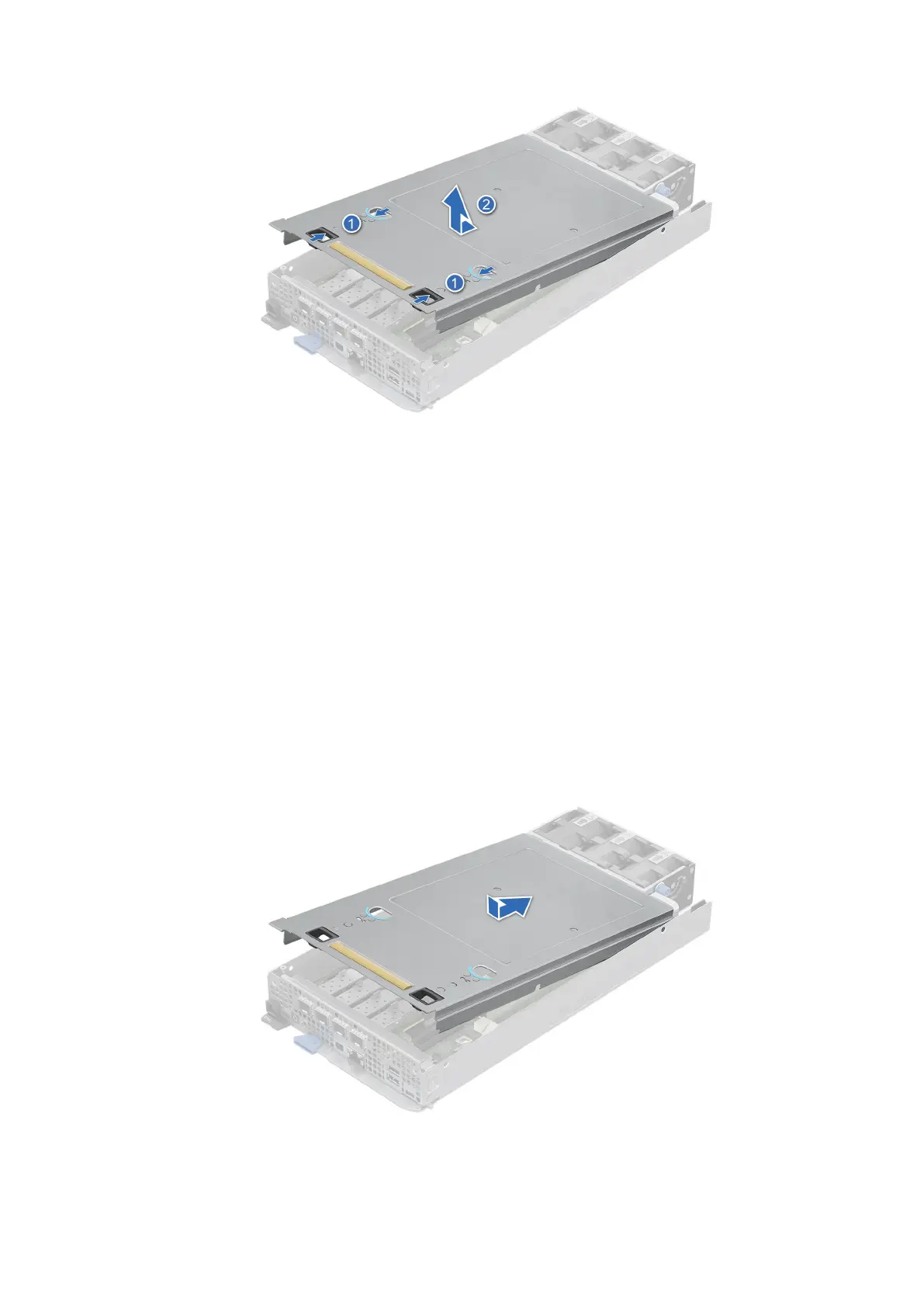

Figure 18. Installing the sled cover
